Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YANGDONG
-
Model Number:
-
GF8YD
-
Speed:
-
1500rpm
-
Weight:
-
380KG
-
Product Name:
-
Diesel Generator Set
-
Type:
-
Slient Type
-
Alternator:
-
HENGTONG
-
Engine:
-
YANGDONG
-
Options:
-
Automatic Transfer Switch
-
Controller:
-
Deepsea/smartgen
-
Engine Model:
-
YD380D
-
Certification:
-
CE/ISO
Quick Details
-
Rated Voltage:
-
220V
-
Rated Current:
-
45A
-
Frequency:
-
50HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YANGDONG
-
Model Number:
-
GF8YD
-
Speed:
-
1500rpm
-
Weight:
-
380KG
-
Product Name:
-
Diesel Generator Set
-
Type:
-
Slient Type
-
Alternator:
-
HENGTONG
-
Engine:
-
YANGDONG
-
Options:
-
Automatic Transfer Switch
-
Controller:
-
Deepsea/smartgen
-
Engine Model:
-
YD380D
-
Certification:
-
CE/ISO
Factory direct Sale 8kw 10kva portable slient Diesel Generator Set by Chinese famous brand YANGDONG
|
Diesel Generator Set Data Sheet
|
|
|
|
|
||||
|
Generator Model
|
|
|
GF8YD
|
|
||||
|
Power
|
|
|
8kw/10kva
|
|
||||
|
Rated Voltage
|
|
|
220V
|
|
||||
|
Frequency
|
|
|
50HZ
|
|
||||
|
Power Factor
|
|
|
0.8(Lagging)
|
|
||||
|
Dimension(L*W*H)
|
|
|
1300*600*930mm
|
|
||||
|
Weight
|
|
|
380kg
|
|
||||
|
Diesel Engine Data Sheet
|
|
|
|
|
||||
|
Brand
|
|
|
YANGDONG
|
|
||||
|
Model
|
|
|
YD380D
|
|
||||
|
Number of Cylinder
|
|
|
3
|
|
||||
|
Speed
|
|
|
1500RPM
|
|
||||
|
Cycle
|
|
|
Four Stroke
|
|
||||
|
Cooling Method
|
|
|
Water Cooling
|
|
||||
|
Bore*Stroke
|
|
|
80*90mm
|
|
||||
|
Speed Governor
|
|
|
Electronic
|
|
||||
|
Power
|
|
|
10kw
|
|
||||
|
Lubrication oil Capacity
|
|
|
4L
|
|
||||
|
Fuel Consumption
|
|
|
≤2.6L/H
|
|
||||
|
Starting Method
|
|
|
24V Electrical Starting
|
|
||||
|
Alternator Data Sheet
|
|
|
|
|
||||
|
Brand
|
|
|
HENGTONG
|
|
||||
|
Model
|
|
|
HTI-8
|
|
||||
|
Power
|
|
|
8kw/10kva
|
|
||||
|
Connecting Type
|
|
|
3 Phase and 4 Wires
|
|
||||
|
Number of Bearing
|
|
|
Single
|
|
||||
|
Protection Grade
|
|
|
IP23
|
|
||||
|
Insulation Class
|
|
|
H
|
|
||||
|
Exciter Type
|
|
|
Brushless, Self-excited, AVR Controller
|
|
||||
|
Altitude
|
|
|
≤1000M
|
|
||||
|
Controller
|
|
|
|
|
||||
|
Optional Controller Brand
|
|
|
Smartgen/Deepsea/ComAp etc.
|
|
||||
Factory and Workshop
Control System
Manual Controller
- A current, Voltage, Frequency simulative meters;
- An oil pressure, a water thermometer and indicator lights;
- 4 additional protection functions are provided optional;
- Start/ stop manually.
- An oil pressure, a water thermometer and indicator lights;
- 4 additional protection functions are provided optional;
- Start/ stop manually.
Automatic controller
Brand: Smartgen, ComAp or Deepsea
- Control with AMF module;
- Static battery charger;
- Emergency stop push button;
- Basic protection function, etc.
- Static battery charger;
- Emergency stop push button;
- Basic protection function, etc.
ATS Control System(Suyang, Aisikai, Schneider，ABB)
- Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine BottProvide start signal to automatic control system;
- Control the generator set to run with no load until the temperature of the engine is balanced and lowered. Stop running
automatically;.
- Changeover between the mains supply and power generated by gen-set;
- Control the generator set to run with no load until the temperature of the engine is balanced and lowered. Stop running
automatically;.
- Changeover between the mains supply and power generated by gen-set;
Synchronous Parallel Controller
Brand: Smartgen, ComAp or Deepsea
- Manual/auto parallel system generators;
- Automatic start/stop of the gen-set, ATS(Auto Transfer Switch) control with perfect fault indication and protection function;
- IP55 waterproofness level;
- Can control engine heater, cooler and fuel pump;
- Metal fixing clips enable perfect in high temperature environment, etc..
- Automatic start/stop of the gen-set, ATS(Auto Transfer Switch) control with perfect fault indication and protection function;
- IP55 waterproofness level;
- Can control engine heater, cooler and fuel pump;
- Metal fixing clips enable perfect in high temperature environment, etc..

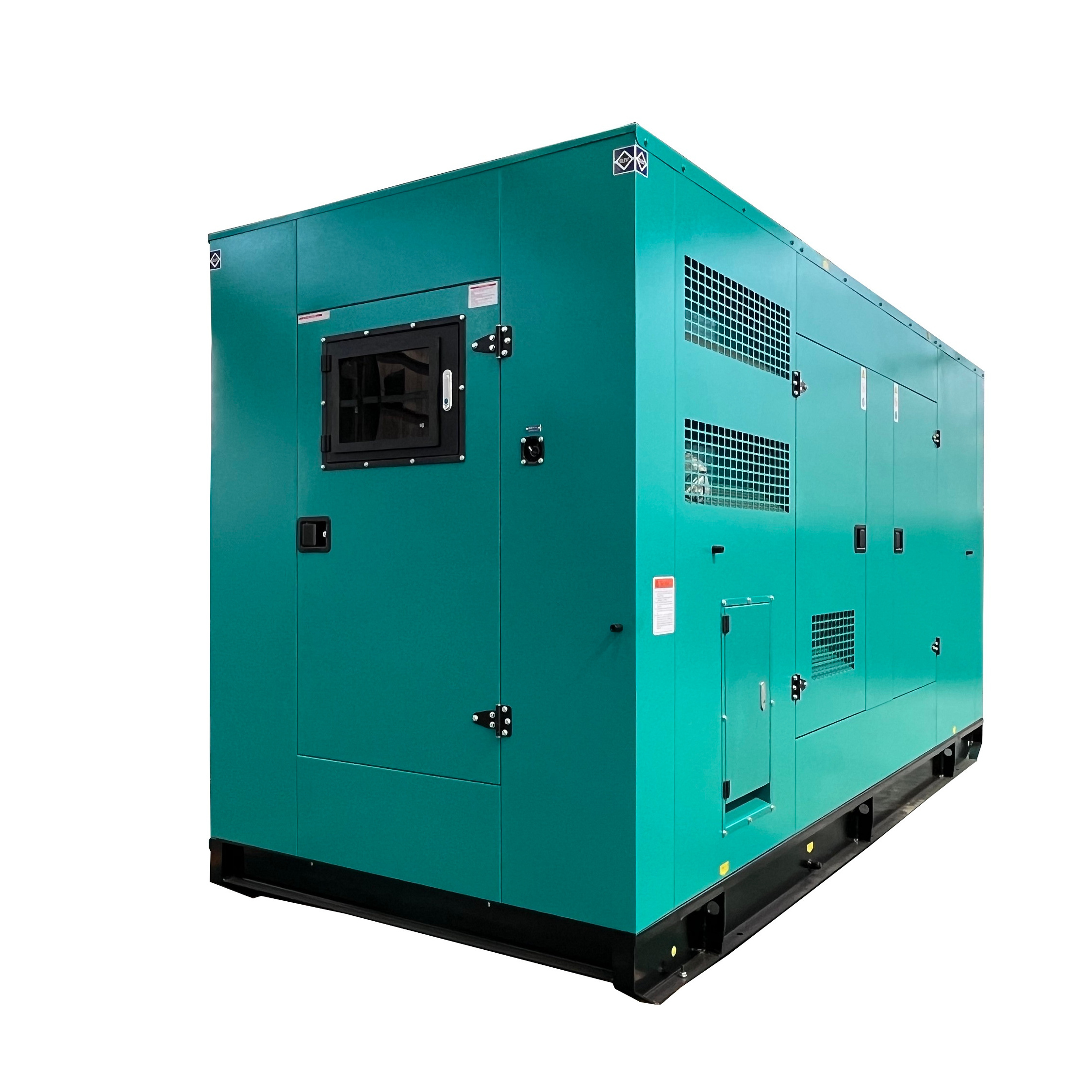

Silent Canopy Details
-Compact structure with high-strength chassis;
-Easy operation and maintenance, Low cost;
-Excellent performance damping system;
-Compliance with international electrical safety standards of electrical system;
-8 hours base tank;
-High-performance maintenance-free batteries with isolation switch
-Easy operation and maintenance, Low cost;
-Excellent performance damping system;
-Compliance with international electrical safety standards of electrical system;
-8 hours base tank;
-High-performance maintenance-free batteries with isolation switch
-40-50℃Radiator;
-Top lifting, Forklift bottom hole design, easy to transport;
-Industrial muffler;
-Noise reduction structure,Low noise;
-Convenient power output interface;
-IP56 (control system)
-Customized design for user
-Top lifting, Forklift bottom hole design, easy to transport;
-Industrial muffler;
-Noise reduction structure,Low noise;
-Convenient power output interface;
-IP56 (control system)
-Customized design for user
