Our Main Products Heavy Trucks, Electirc vehicles and Construction Machinery. include electric vehicles, Howo tractor trucks, dump trucks, trailer truck,Fire trucks, water tank trucks, concrete mixer trucks, special trucks,truck parts and Motor grader,wheel loader, roller loader. we can supply these for our clients with good quality and competitive price.
- Product Details
- {{item.text}}
Quick Details
-
Vehicle Name:
-
light cargo truck
-
Name:
-
Energy Car
-
Fuel:
-
Electric
-
Motor power:
-
3.5kw
-
Max Speed:
-
50km/h
-
Battery Capacity:
-
61.3 Kwh
-
Motor:
-
1500W
-
Braking system:
-
Front Disc Rear Drum
-
Driving Type:
-
Left Drive
Quick Details
-
Brand Name:
-
china brand
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Energy Electric Vehicle
-
Vehicle Name:
-
light cargo truck
-
Name:
-
Energy Car
-
Fuel:
-
Electric
-
Motor power:
-
3.5kw
-
Max Speed:
-
50km/h
-
Battery Capacity:
-
61.3 Kwh
-
Motor:
-
1500W
-
Braking system:
-
Front Disc Rear Drum
-
Driving Type:
-
Left Drive
New energy vehicles

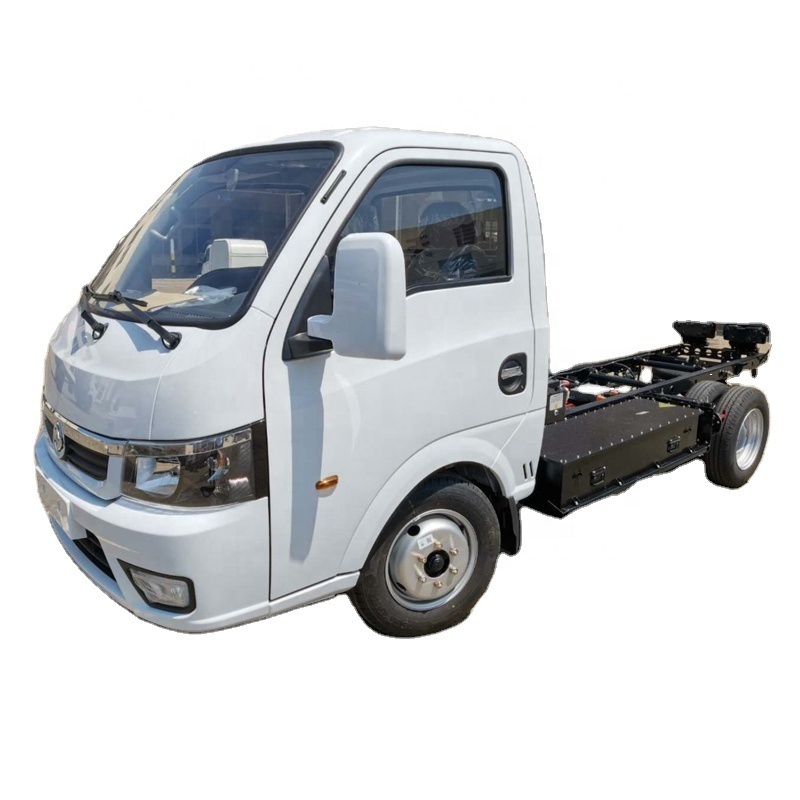

light cargo truck
Product Description
Specification
|
Project
|
|
|
Electric Mini Truck
|
|
|
|
Electric Mini Van
|
|||||
|
Vehicle type
|
|
|
GXA1031BEV
（Great Power battery) |
|
|
|
GXA5030XXYBEV7
（Great Power Battery) |
|||||
|
Number of seats (including driver)
|
|
|
2
|
|
|
|
2
|
|||||
|
Dimension
|
Size
|
L*W*H mm
|
4845*1610*1920,1935
|
|
|
|
4490*1610*1900
|
|||||
|
|
Cargo space
|
L*W*H mm
|
3015*1530*370
|
|
|
|
2622*1457*1340
|
|||||
|
|
Wheelbase mm
|
|
3050
|
|
|
|
|
|||||
|
|
Tread
|
Front mm
|
1386
|
|
|
|
|
|||||
|
|
|
Rear mm
|
1408
|
|
|
|
|
|||||
|
Weight
|
Curb weight Kg
|
|
1355
|
|
|
|
1430
|
|||||
|
|
Total weight Kg
|
|
2510
|
|
|
|
|
|||||
|
|
Rated load mass Kg
|
|
1155
|
|
|
|
1080
|
|||||
|
Pass parameter
|
Minimum ground clearance
mm |
|
125
|
|
|
|
|
|||||
|
|
Front suspension mm
|
|
545
|
|
|
|
|
|||||
|
|
Rear suspension mm
|
|
1255
|
|
|
|
895
|
|||||
|
|
Approach angle（°）
|
|
31
|
|
|
|
28
|
|||||
|
|
Departure angle（°）
|
|
22
|
|
|
|
17
|
|||||
|
|
Minimum turning diameter
|
|
11.9
|
|
|
|
|
|||||
|
Driving range
|
Working condition method
|
|
270
|
|
|
|
255
|
|||||
|
Steering gear
|
Type
|
|
Rack and pinion type (with power assist)
|
|
|
|
|
|||||
|
Rear axle
|
Main reducer
|
|
Two stage cylindrical gear speed ratio 8.952
|
|
|
|
|
|||||
|
|
Differential mechanism
|
|
Straight planet bevel gear
|
|
|
|
|
|||||
|
Driving system
|
Front suspension
|
|
Spiral spring McPherson type independent suspension
|
|
|
|
|
|||||
|
|
Rear suspension
|
|
spring non independent suspension
|
|
|
|
|
|||||
|
|
Tire specification（F/R）
|
|
175/75R14C；185R14C（Rear）
|
|
|
175/70R14C
|
|
|||||
|
Braking system
|
Type
|
|
Double circuit X-type hydraulic brake
|
|
|
|
|
|||||
|
|
Brake
|
|
Front disk rear drum
|
|
|
|
|
|||||
|
|
Parking brake
|
|
Mechanical cable type applied to rear wheel brake
|
|
|
|
|
|||||
|
Driving motor |
Quantity, set / vehicle
|
|
1
|
|
|
|
|
|||||
|
|
Type
|
|
Permanent magnet synchronous motor
|
|
|
|
|
|||||
|
|
Model
|
|
TZ180XSIN101
|
|
|
|
|
|||||
|
|
Phase number m
|
|
3
|
|
|
|
|
|||||
|
|
Rated torque，N·m
|
|
90
|
|
|
|
|
|||||
|
|
2min maximum torque
|
|
220
|
|
|
|
|
|||||
|
|
Rated power，kW
|
|
30
|
|
|
|
|
|||||
|
|
2min maximum power
，kW |
|
60
|
|
|
|
|
|||||
|
|
Rated speed，r/min
|
|
3183
|
|
|
|
|
|||||
|
|
Rated efficiency，％
|
|
96.5
|
|
|
|
|
|||||
|
Motor controller
|
Model
|
|
KTZ33X26S330L
|
|
IEVD170-34Z50AL
|
|
|
|||||
|
|
Rated voltage，V
|
|
336
|
|
336
|
|
|
|||||
|
Electrical system
|
Auxiliary battery
|
|
12V
|
|
|
|
|
|||||
|
|
Power battery
|
Battery type
|
Lithium iron phosphate battery
|
|
|
|
|
|||||
|
|
|
Rated voltage
，V |
334.88
|
|
334.88
|
|
|
|||||
|
|
|
Capacity C3
，A·h |
125
|
|
125
|
|
|
|||||
|
|
|
Service life
|
5 years or 200000 km
|
|
5 years or 200000 km
|
|
|
|||||
|
|
|
Energy density
（W.h/kg) |
137.6
|
|
137.6
|
|
|
|||||
|
|
Charger (AC / DC)
|
Input voltage
|
220
|
|
|
|
|
|||||
|
|
|
Maximum output current
|
3.3kw charger ≤ 10, 6.6kw charger ≤ 20
|
|
|
|
|
|||||
|
|
Maximum charging time
|
|
3.3kw charger ≤ 12, 6.6kw charger ≤ 6
|
|
|
|
|
|||||
|
|
Lighting, signal
|
|
Headlamp, front and rear turn light, front and rear position light, brake light, rear fog light, reversing light, license plate
light, combination instrument, interior light, indicator light, horn, hazard warning light, etc |
|
|
|
|
|||||
|
Air conditioning
|
Air conditioning
|
Electric compressor Rated power
|
950
|
|
|
|
|
|||||
|
|
|
Refrigerating capacity
|
1850
|
|
|
|
|
|||||
|
|
|
Cryogen
|
R134a
|
|
|
|
|
|||||
|
|
Heater
|
Rated fan power
|
175
|
|
|
|
|
|||||
|
|
|
Calorific value
|
|
2000
|
|
|
|
|||||
1 Factory price, more competitive than agent price.
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.
3 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.
4 After-sales: Professional after-sales team sovle your difficult or special questions within 3working days or 5 working days, and all spare parts are available for your urgent use.
5 Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
