Quick Details
-
Brand Name:
-
Target Brake
-
Car Model:
-
2006+ Mack with spring suspension
-
Product Name:
-
T30/30 Spring Brake (S-Cam) with Welded Clevis
-
Type:
-
Type 30/30
-
OEM NO:
-
GC3030LS7CW/LCP3030LS7CW/3233953
-
Part Number:
-
TB-3030SLW420
-
Stroke:
-
3" (76.2mm Long Stroke)
-
Pushrod Length when caged:
-
4.20"
-
Port Size:
-
3/8"-18 NPTF
-
Finish:
-
E-coating/Zinc-plated
-
Application:
-
Heavy Duty Spring Brake
-
MOQ:
-
50pcs
Quick Details
-
OE NO.:
-
GC3030LS7CW/LCP3030LS7CW/3233953
-
Warranty:
-
2 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Target Brake
-
Car Model:
-
2006+ Mack with spring suspension
-
Product Name:
-
T30/30 Spring Brake (S-Cam) with Welded Clevis
-
Type:
-
Type 30/30
-
OEM NO:
-
GC3030LS7CW/LCP3030LS7CW/3233953
-
Part Number:
-
TB-3030SLW420
-
Stroke:
-
3" (76.2mm Long Stroke)
-
Pushrod Length when caged:
-
4.20"
-
Port Size:
-
3/8"-18 NPTF
-
Finish:
-
E-coating/Zinc-plated
-
Application:
-
Heavy Duty Spring Brake
-
MOQ:
-
50pcs
|
Product Description
|

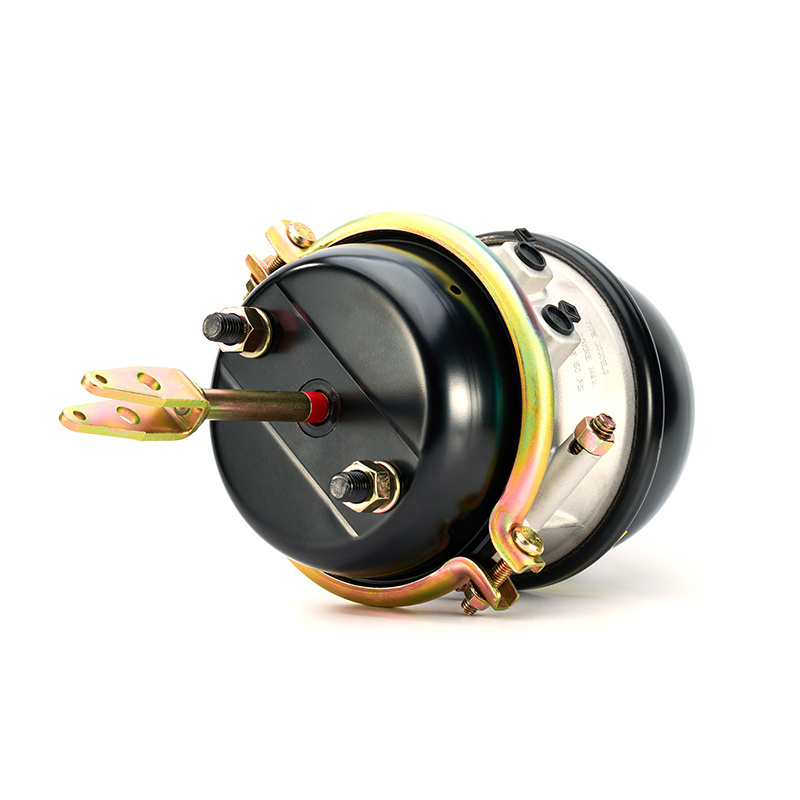

T30/30 Spring Brake (S-Cam) with Welded Clevis
|
|
Part Number
|
TB-3030SLW420
|
|
Stroke
|
3" (76.2mm Long Stroke)
|
|
Pushrod Length when caged
|
4.20"
|
|
Chamber Style
|
Double Diaphragm
|
|
Port Size
|
3/8"-18 NPTF
|
|
Distance Between Bolts
|
120.7mm
|
|
Rating Working Pressure
|
0.8Mpa
|
|
Max Working Pressure
|
1.03Mpa
|
|
Working temperature
|
-40℃～+80℃
|
|
Leading Standard
|
SAE J1469
|
|
Service chamber
|
above 1,000,000 times
|
|
Parking chamber
|
above 200,000 times
|
|
Finish
|
E-coating/Zinc-plated
|
|
Adaptation Truck Type
|
2006+ Mack with spring suspension (23k Rear Drive Axle)
|
|
Direct AftermarkeAt Replacement For OEM
|
Haldex
：GC3030LS7CW
Haldex
：LCP3030LS7CW
MGM
:3233953(TR3030LP3THD)
|
Target Spring Brakes with Welded Clevis
Faster Installation, OEM Specifications.
Trucks on the road help add to your bottom line. So, to help you speed up maintenance and decrease downtime, use Target brand spring brakes with welded clevis push rods.
You’ll save time and money when you choose these reliable, durable service replacement parts. Since there’s no need to cut push rods or re-use worn components, installation is fast and easy. And, you can have confidence in their performance because they meet OE quality standards. Our service parts deliver peace of mind–you know you’re using the correct push rod length with the proper brake shoe-to-drum clearance.
Plus, when you choose a Target Spring Brake, you have access to our innovative design:
* Increases the height between power spring coils, helping avoid damaging contact to the protective coating on the spring.
* Addresses the leading cause of spring brake failure by increasing power spring life.
* Is the lightest spring brake in the industry.
Push rod length is measured in the fully retracted, zero-stroke position.
Trucks on the road help add to your bottom line. So, to help you speed up maintenance and decrease downtime, use Target brand spring brakes with welded clevis push rods.
You’ll save time and money when you choose these reliable, durable service replacement parts. Since there’s no need to cut push rods or re-use worn components, installation is fast and easy. And, you can have confidence in their performance because they meet OE quality standards. Our service parts deliver peace of mind–you know you’re using the correct push rod length with the proper brake shoe-to-drum clearance.
Plus, when you choose a Target Spring Brake, you have access to our innovative design:
* Increases the height between power spring coils, helping avoid damaging contact to the protective coating on the spring.
* Addresses the leading cause of spring brake failure by increasing power spring life.
* Is the lightest spring brake in the industry.
Push rod length is measured in the fully retracted, zero-stroke position.
Always check your vehicle to ensure the correct part is chosen for your application.
Get reliable, durable made-to-match performance and easy installation, with genuine Target double-diaphragm spring brakes.
Get reliable, durable made-to-match performance and easy installation, with genuine Target double-diaphragm spring brakes.
