Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Raloyal
-
Voltage:
-
380V/3Phases/50hz
-
Dimension(L*W*H):
-
2200*3000*1540mm
-
Weight:
-
2000 kg
-
Marketing Type:
-
Hot Product 2022
-
PLC Brand:
-
SIEMENS
-
Industry:
-
Medical Industry, Electron, Labeling Printing, Packing, Aerospace
-
Usage:
-
Narrow Width, Film, Alu Foil, Paper Slitting
-
Rewinding Mode:
-
Center Drum Slitter, Surface Coiling Rewinding
-
Min Slitting Width:
-
5mm
-
Control System:
-
Automatic PLC Control
-
Drive System:
-
3 Sets Servo Motor Drive
-
Loading:
-
Automatic Loading, Shaftless Loading (Option)
-
Web Guide:
-
Ultrasonic Correction
-
Slitting System:
-
Semi-Auto Blades Setting (Option)
-
Cutter Knives:
-
Round Blades or Razor Blades
Quick Details
-
Type:
-
Slitting Rewinder
-
Production Capacity:
-
300 m/min
-
Max. workable width:
-
1300mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Raloyal
-
Voltage:
-
380V/3Phases/50hz
-
Dimension(L*W*H):
-
2200*3000*1540mm
-
Weight:
-
2000 kg
-
Marketing Type:
-
Hot Product 2022
-
PLC Brand:
-
SIEMENS
-
Industry:
-
Medical Industry, Electron, Labeling Printing, Packing, Aerospace
-
Usage:
-
Narrow Width, Film, Alu Foil, Paper Slitting
-
Rewinding Mode:
-
Center Drum Slitter, Surface Coiling Rewinding
-
Min Slitting Width:
-
5mm
-
Control System:
-
Automatic PLC Control
-
Drive System:
-
3 Sets Servo Motor Drive
-
Loading:
-
Automatic Loading, Shaftless Loading (Option)
-
Web Guide:
-
Ultrasonic Correction
-
Slitting System:
-
Semi-Auto Blades Setting (Option)
-
Cutter Knives:
-
Round Blades or Razor Blades

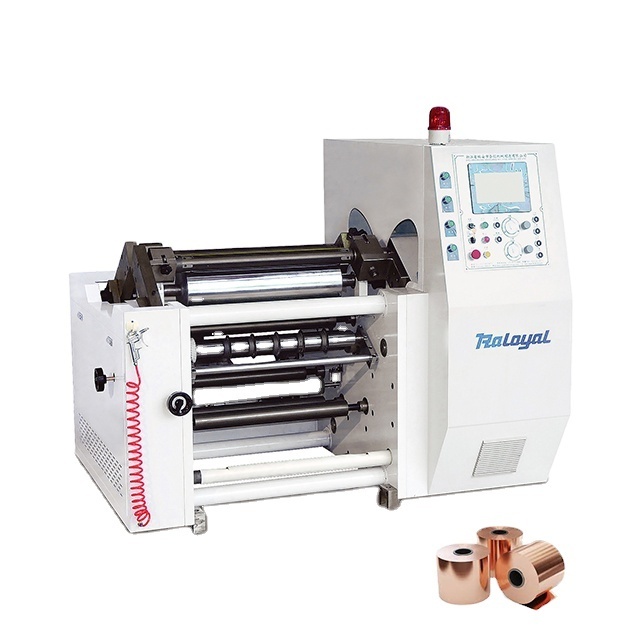

Products Description
Application
:
This machine is suitable for slitting rolling materials such as paper, aluminum foil, PVC, PE film, insulation material, etc.
Advantage
:
This motor is equipped with frequency converter timing device, constant tension magnetic powder control system for unwinding,
photoelectric auto error-correction, two pieces magnetic powder clutches, main motor for controlling the center rewinding can be
touched with the surface, double shafts rewinding interlaced without meeting. It also has the function of meter can be setup in
advance and auto-stop working, etc.
photoelectric auto error-correction, two pieces magnetic powder clutches, main motor for controlling the center rewinding can be
touched with the surface, double shafts rewinding interlaced without meeting. It also has the function of meter can be setup in
advance and auto-stop working, etc.
Technical Parameter
|
Machine model
|
HC-C650B
|
HC-C1300B
|
HC-C1600B
|
|
Machine speed
|
300m/min
|
300m/min
|
300m/min
|
|
Material width
|
650mm
|
1300mm
|
1600mm
|
|
Min slitting width
|
5mm
|
5mm
|
5mm
|
|
Unwinding diameter
|
φ1000mm
|
φ1000mm
|
φ1000mm
|
|
Rewinding diameter
|
φ600mm
|
φ600mm
|
φ600mm
|
|
Machine precision
|
±0.15mm
|
±0.15mm
|
±0.15mm
|
Details Images
Related Products
Why Choose Us
1. Quality Control
Incoming Quality Control
Our quality team will inspect the incoming parts before storage by sampling.
Process Quality Control
Our quality team will pick the first pcs of each kind part to inspect before assembly and also inspect randomly on site.
Outgoing Quality Control
Our quality team will inspect the machine’s appearance, features and characteristic etc. before delivery to meet and exceed client’s expectation.
2. Packing & Delivery
3. Certifications
4. Our Service
Inquiry and consulting support.
Sample material testing support.
Lead the customer to visit our factory if required.
12 months guarantee, life-long time technic maintenance and support.
Online Guidance support. Spare parts supports.
24 Hours * 7 days service online.
