Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Weight (KG):
-
650 KG
-
Power (kW):
-
20
-
Product name:
-
Heat Treatment Plants for Wood
-
Brand name:
-
Hello River
-
Certification:
-
CE
-
Temperature range:
-
0-75
-
Usage:
-
PLC intelligent Control of temperature
-
Function:
-
Heated air circulation+Dehydration
-
Suitable for drying:
-
Timber, Furniture Wood,Wood crafts,Woodwork
-
Working life:
-
10 years
-
Advantage1:
-
Low Consumption High Efficiency
-
After-sales Service Provided:
-
Field installation, commissioning and training
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HelloRiver
-
Machine Type:
-
Wood Drying Equipment
-
Marketing Type:
-
Hot Product 2022
-
Weight (KG):
-
650 KG
-
Power (kW):
-
20
-
Product name:
-
Heat Treatment Plants for Wood
-
Brand name:
-
Hello River
-
Certification:
-
CE
-
Temperature range:
-
0-75
-
Usage:
-
PLC intelligent Control of temperature
-
Function:
-
Heated air circulation+Dehydration
-
Suitable for drying:
-
Timber, Furniture Wood,Wood crafts,Woodwork
-
Working life:
-
10 years
-
Advantage1:
-
Low Consumption High Efficiency
-
After-sales Service Provided:
-
Field installation, commissioning and training

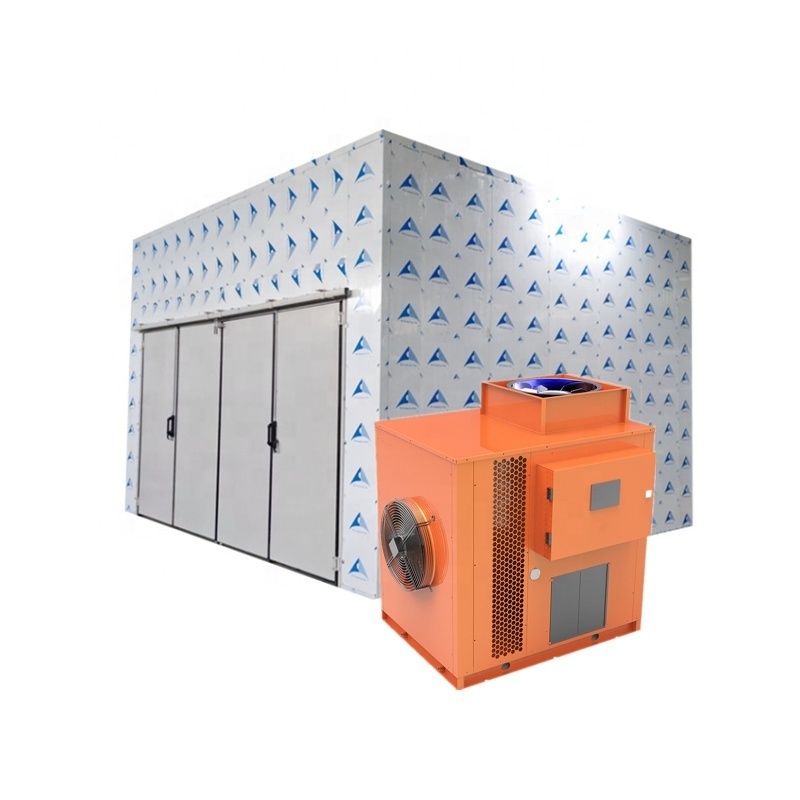

Hello River Brand Heat Treatment Plants for Wood Drying Machine Wooden Packing ISPM 15 Rule
1, Energy saving
Adopt heat pump technology, absorb heat from air and recovery waste heat at the same time
Adopt close dehumidify + circulating drying type, saving operating cost;
2, Exact control temperature and humidity
The drying temperature can be easily controlled by PLC +Touch Screen control system.
3, Uniform drying
By using the forced ventilation function, there are partition sheet and fan motors inside the drying chamber to make sure hot air cycle, so the raw materials can be dried evenly
4, The temperature: 10-75°C, Max 75°C, similar nature drying.
5, The baking plate dimensions and materials can customize as customer request.
6, Good drying quality.
During drying, the material does not craze, does not distortions, non-discoloring, never degenerate, non-oxidize, drying completely, with good rehydration, keep nutrient content;
7, Safe and reliable operation
Automatic intelligent control, 24-hour continuous drying; Without waste gas and waste heat pollution,low noise
|
MODEL
|
|
HRD03S
|
HRD06S
|
HRD10S
|
HRD12S
|
HRD15S
|
|
DRYING CHAMBER SIZE
|
MM
|
2.2M*3.5M*2.2M
|
3M*6M*2.2M
|
3M*7M*2.2M
|
3M*7M*2.2M
|
3M*8M*2.2M
|
|
POWER INPUT
|
KW
|
2.8
|
5.2
|
9.3
|
11.2
|
14.8
|
|
POWER SUPPLY
|
V/PH/HZ
|
2200V/3PHRASE/50HZ
|
380V/3PHRASE/50HZ
|
380V/3PHRASE/50HZ
|
380V/3PHRASE/50HZ
|
380V/3PHRASE/50HZ
|
|
RATED CURRENT
|
A
|
5.5
|
10.8
|
18.5
|
22.5
|
29.6
|
|
HEATING CAPACITY
|
KW
|
10.5
|
21
|
35
|
42
|
45
|
|
COOLING CAPACITY
|
KW
|
7.8
|
18
|
25
|
32
|
35
|
|
DEHUMIDIFY
|
L/H
|
12
|
25
|
42
|
50
|
60
|
|
MAX.TEMPERATURE
|
℃
|
75
|
75
|
75
|
75
|
75
|
|
WORKING CONDITION
|
℃
|
0-43
|
0-43
|
0-43
|
0-43
|
0-43
|
|
ELECTRIC SHOCK PROTECION GRADE
|
GRADE
|
Class I
|
Class I
|
Class I
|
Class I
|
Class I
|
|
NOISE
|
dB(A)
|
≦75db(A)
|
≦75db(A)
|
≦75db(A)
|
≦75db(A)
|
≦75
|
|
POWER CONSUPTION/H
|
KW
|
2.8
|
5.2
|
9.3
|
11.2
|
14.8
|
|
ELECTRIC HEATER
|
KW
|
6
|
9
|
12
|
12
|
12
|
|
BLOWING TYPE
|
\
|
HORIZONTAL BLOWING 360
|
HORIZONTAL BLOWING 360
|
HORIZONTAL BLOWING 360
|
HORIZONTAL BLOWING 360
|
HORIZONTAL BLOWING 360
|
|
DIMENSION OF DRYER
|
mm
|
1675*860*1280
|
1760*1060*1280
|
2120*1356*1590
|
2120*1356*1590
|
2160*1500*1608
|
|
WEIGHT
|
KG
|
180
|
285
|
300
|
500
|
550
|
Hello River Brand Heat Treatment Plants for Wood Drying Machine Wooden Packing ISPM 15 Rule
Pre-Sales Service
1, Inquiry and sonsulting support
2, Sample testing support
3, View our factory
After-Sales Service
1, Technical support for your installation, operation and maintenance.
2, One year's warranty, and you can pay for extended warranty
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need
