Quick Details
-
Warranty:
-
12 months
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CR-GPS
-
Model Number:
-
CR4000
-
Feature:
-
Build in antennas, compatible with RS485 device
-
Network:
-
FDD- LTE/ UMTS/GSM/GPRS
-
Battery:
-
500mAh
-
Size:
-
105mm*62mm*23mm
-
Tracking system:
-
Real Time Tracking Solution
-
Weight:
-
135g
-
Color:
-
Black
-
Product name:
-
4g vehicle gps tracker with Oil checking
Quick Details
-
Positioning Mode:
-
GSM, GPS, GPRS, LBS, AGPS, Beidou, GLONASS, Real-Time Positioning, Emergency Positioning, Power Saving Mode
-
Function:
-
Waterproof, ANTI-SHOCK, Loop recording, Fast Charging, street view, ACC Detection, Over-Speed Warning, Wheel Path Playback, Geofence, SDK
-
Data Storage:
-
Other
-
Warranty:
-
12 months
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CR-GPS
-
Model Number:
-
CR4000
-
Feature:
-
Build in antennas, compatible with RS485 device
-
Network:
-
FDD- LTE/ UMTS/GSM/GPRS
-
Battery:
-
500mAh
-
Size:
-
105mm*62mm*23mm
-
Tracking system:
-
Real Time Tracking Solution
-
Weight:
-
135g
-
Color:
-
Black
-
Product name:
-
4g vehicle gps tracker with Oil checking
Product Description

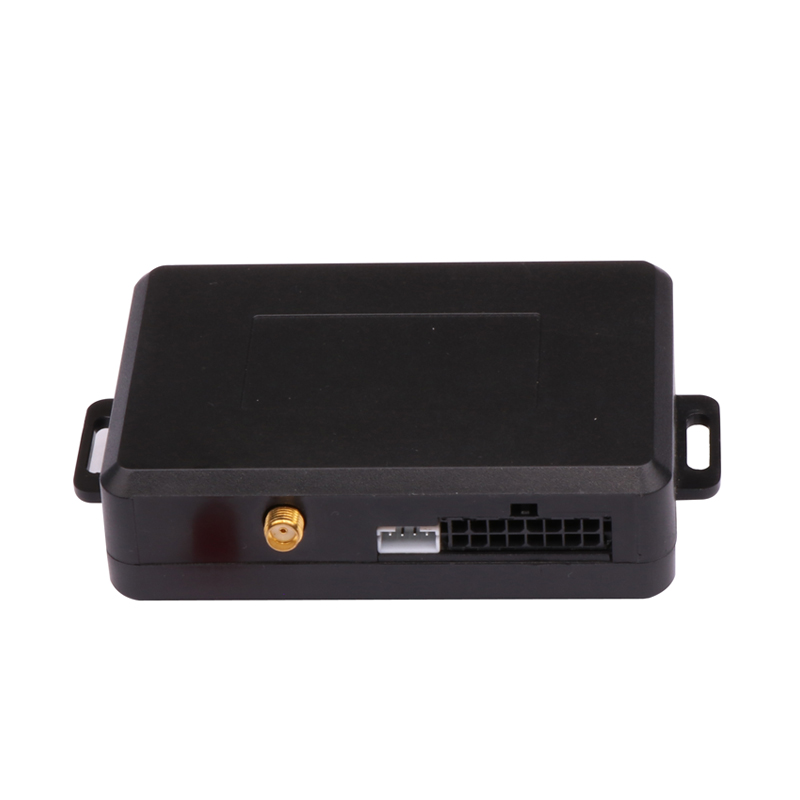

CR-GPS:CR4000
SOS security alarm Speed Limiter 4g vehicle gps tracker with Oil checking
Advantages
CR4000 is a GPS location service supplier for vehicle. It provides superior sensitivity up to -165dBm and fast Time-To-First-Fix GPS application and support FDD-LTE,UMTS/HSDPA/HSPA+ and GSM/GPRS/EDGE . The device could be monitored by backend server or other specified terminals.
CR4000 has multiple input/output,embedded with high sensitivity GPS antenna and GSM antenna. RS485 bus, support
fuel sensor, camera and other custom accessories
.
|
Network:
|
FDD-LTE,Dual-Band GSM/GPRS/EDGE and dual-band UMTS/HSPA
|
|
|
|
Antenna:
|
Embedded GPS and GSM Antenna, external GPS antenna is optional
|
|
|
|
Input/output:
|
Multiple Digital Input, Anlage Input and Output
|
|
|
|
Bus:
|
RS485 Bus Compatible Custom Accessories,such as RFID reader, camera
|
|
|
|
Flash:
|
4Mb, save more than 8000 piece record while out of GSM coverage
|
|
|
|
Internal Battery:
|
3.7V, 500mAh
|
|
|
|
Power supply:
|
DC Tolerance voltage, from 8V to 32V
|
|
|
|
Sensor:
|
3D acceleration sensor,fuel sensor,temperature sensor,flow meter
|
|
|
How to setup.
CR4000 tracker could be setup with PC SETUP program, use USB to UART cable. and it is possible to setup with command from server or SMS
.
Real Time tracking System and APP of IOS and android.
Platform and APP function
1. Real time tracking
2.Route play back
3.Control vehicle remote.(such as cut oil)
4.Setup device remote
5.Alarms(speeding, tow, idle, fuel lost, power cut)
6.Geofence
7. Fuel analysis form
8.Driver harsh behavior analysis
2.Route play back
3.Control vehicle remote.(such as cut oil)
4.Setup device remote
5.Alarms(speeding, tow, idle, fuel lost, power cut)
6.Geofence
7. Fuel analysis form
8.Driver harsh behavior analysis
10.Pictures for passenger count
11. RFID data recorder
12.Idle and fatigue driving analysis
......
Related Products
1. Cheap price GPS tracker,
as low as 15$,
quad bands mini gps tracker
.
2. GPS tracker device with 485 bus support fuel senor temperature sensor and flow meter.
Packing & Delivery
packing list
1.CR4000 1 unit.
2.Main harness.
3.optional accessories: (a.GPS antenna b.cut relay
c.fuel level sensor d.camera e
.RFID
f.flow meter
).
Delivery time
1.It will take 3 days after confirm your payment.
2. The specific delivery time depends on the items and the quantity of your order.
