The palletizer is to put the cartons that have been loaded with container, put them on the pallet according to a certain arrangement, and automatically stack them. Palletizers can greatly reduce labor and labor intensity, and are indispensable equipment for modern production lines. Commonly used in automated production lines such as beverages, beer, medicine, food, and construction.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
NOVA
-
Dimension(L*W*H):
-
(L)7500MMx(W)6600MMx(H)3200MM
-
Weight:
-
6500 KG
-
After-sales Service Provided:
-
Online Support
-
Function:
-
carton/pack/bag palletizing
-
Capacity:
-
20-35 CTN/MIN
-
Power supply:
-
AC380V/220V 50/60HZ 3Phase 8KW (Customized)
-
Maximum load per layer:
-
250KG
-
Maximum load per pallet:
-
1500KG
-
Maximum stack height:
-
1800MM (can be customized)
-
Maximum size of pallet:
-
1100x1100MM(can be customized)
-
air consumption:
-
110L/MIN (air usage: 5-6KG/ CM2)
-
Machine size:
-
(L)7500MMx(W)6600MMx(H)3200MM
-
Marketing Type:
-
New Produce 2022
Quick Details
-
Application:
-
Beverage, Chemical, Beer
-
Voltage:
-
380v/220v
-
Place of Origin:
-
China
-
Brand Name:
-
NOVA
-
Dimension(L*W*H):
-
(L)7500MMx(W)6600MMx(H)3200MM
-
Weight:
-
6500 KG
-
After-sales Service Provided:
-
Online Support
-
Function:
-
carton/pack/bag palletizing
-
Capacity:
-
20-35 CTN/MIN
-
Power supply:
-
AC380V/220V 50/60HZ 3Phase 8KW (Customized)
-
Maximum load per layer:
-
250KG
-
Maximum load per pallet:
-
1500KG
-
Maximum stack height:
-
1800MM (can be customized)
-
Maximum size of pallet:
-
1100x1100MM(can be customized)
-
air consumption:
-
110L/MIN (air usage: 5-6KG/ CM2)
-
Machine size:
-
(L)7500MMx(W)6600MMx(H)3200MM
-
Marketing Type:
-
New Produce 2022

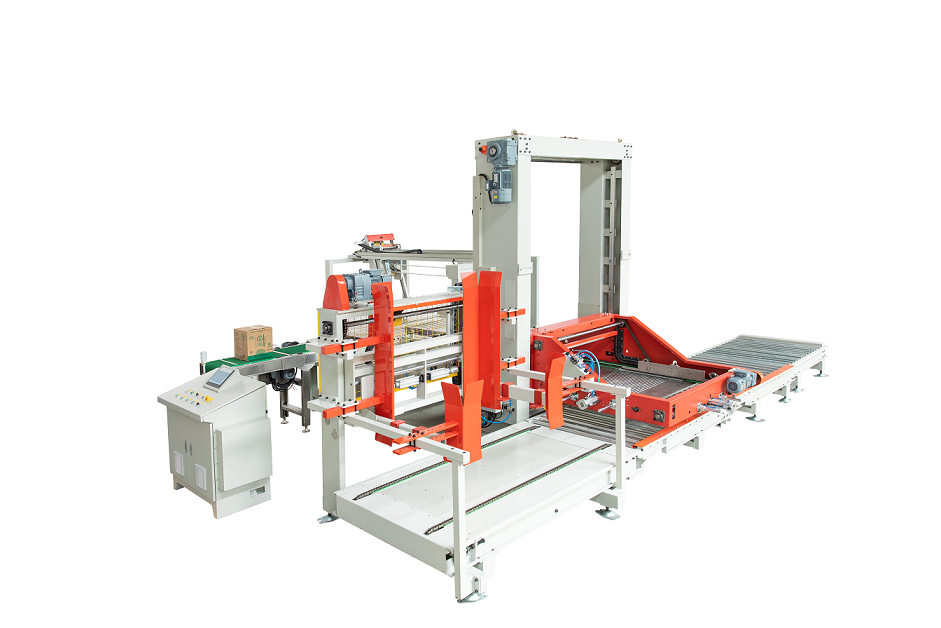

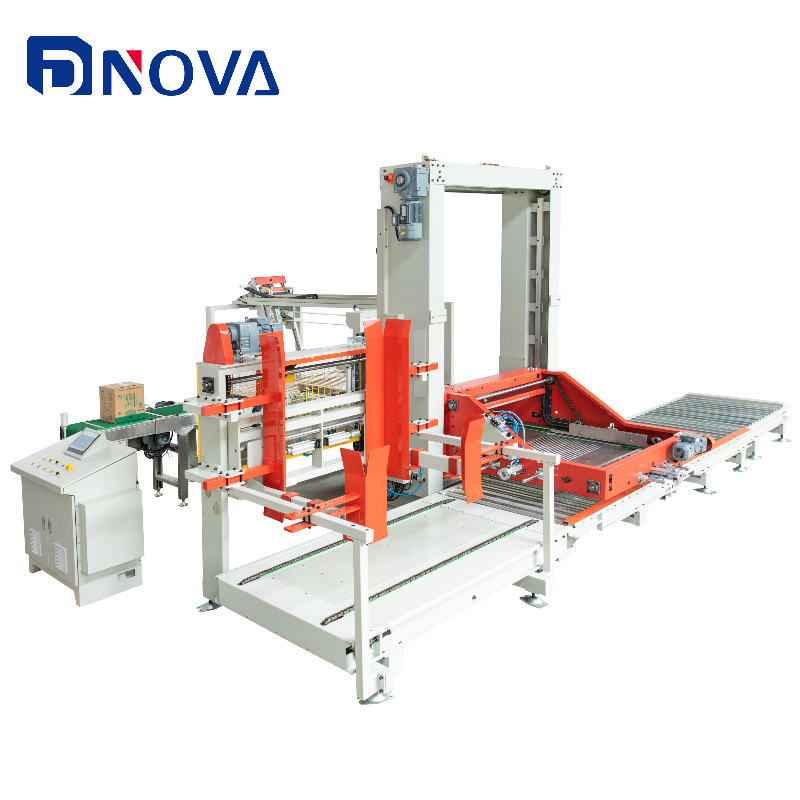

Automatic Palletizer for carton / pack / bag
|
Equipment name
|
Palletizer
|
|
Equipment model
|
DCMD40
|
|
Equipment capacity
|
2.2 layers/min
|
|
Applied container
|
(a) carton (b) plastic box (c) film pack
|
|

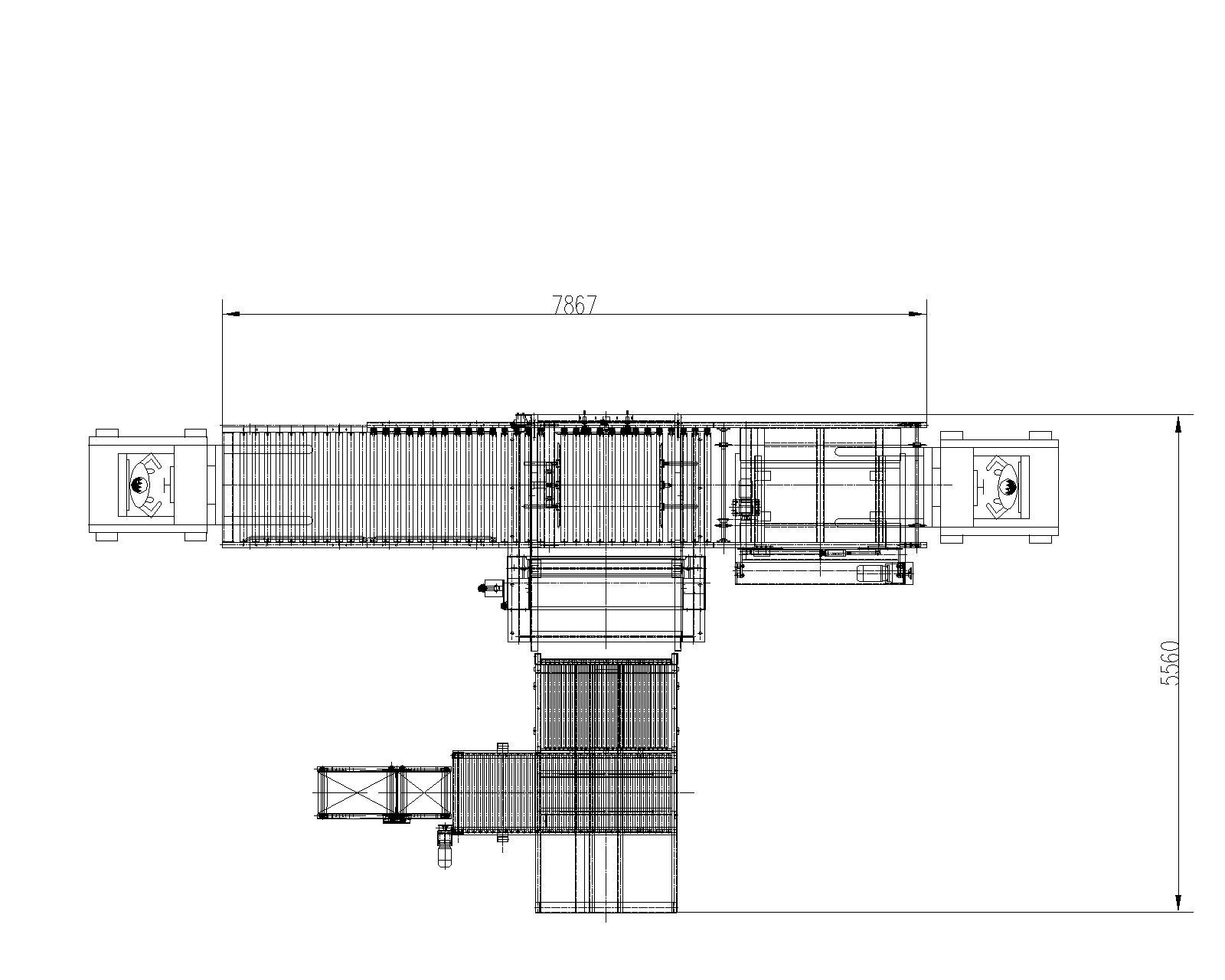

Equipment size
|
(L)7500MMx(W)6600MMx(H)3200MM
|
|
Standard pallet size
|
1100mmx1100mmx150mm (standard)
|
|
Equipment weight
|
7T
|
|
Power consumption
|
10Kw
|
|
Compressed air
|
110L/MIN (air usage: 5-6KG/ CM2)
|
|
Power supply
|
Three-phase AC 380V±5%; 50Hz
|
|
Operation method
|
HMI touch screen
|
|
Geared motor
|
SEW
|
|
Pneumatic Components
|
FESTO
|
|
Inverter
|
Danfoss
|
|
Sensor
|
P+F
|
1. This equipment adopts PLC and touch screen control to realize intelligent operation, convenient management and easy to understand.
2. Equipped with a carton storage monitoring device, which can automatically adjust the speed. If there are boxes, it will be automatically palletized. If there are no boxes, the equipment will stop and reduce power consumption.
3. The structure is simple,
the maintenance is convenient, and the maintenance cost of the mechanical palletizer is very low.
the maintenance is convenient, and the maintenance cost of the mechanical palletizer is very low.
4. Greatly reduce the labor
force and reduce labor intensity.
force and reduce labor intensity.
5. Once there is a problem with the equipment, the safety device will stop and alarm.
Pick & Place Case Packer
Model:
DCZX15
Output
: 10-15
Cases/min
Hot Melt Glue Case Sealer
Model:
DCFX40
Output
:
40 Cases/min
Hot Melt Glue Case Erector
Model:
DCCX40
Output
:
40 Cases/min
Guangzhou Nova Intelligent Equipment Co., Ltd.
is a manufacturer specializing in R&D and production of automated packaging equipment in Guangzhou.
Our company is mainly engaged in the design, manufacturing, domestic and international sales and service of the end of line packaging machinery in the food, beverage, beer, condiment and dairy industries. Our core products include shrink wrapping machine, wrap-around case packer, advanced wrap-around shrink wrapper and second packaging line equipment.
Nova Intelligent Advantages
⭐
Innovation Leads
Our team has more than 10 years of working experience in the packaging machinery industry.
We are full of enthusiasm and desire for innovation, guiding us to continuously develop better products.
⭐
Keep Improving
Constantly explore for better solutions and improve product quality. We deeply realize that relying on quality is an eternal strategy. Only companies that insist on quality can survive for a long time and develop by leaps and bounds.
⭐
Flexible Customization
Accurately solve customer needs and provide customized packaging solutions to meet and exceed customer expectations.
⭐
Quick Response
Respond quickly to customer questions, answer questions remotely at any time and arrange engineer services, sufficient parts inventory, and spare parts can be provided in a short time.
In the past ten years, we have provided high-quality equipment and superb services for many companies. Our footprints are in many countries, such as Malaysia, Thailand, Bangladesh, India, etc. There are many large-scale projects, and the success of these projects has made us more experienced and engineering capabilities also allow us to better serve our customers in the future. We are committed to continue to provide high value-added, high-return quality services, and constantly commit to mutual benefit, common development, harmonious progress, and make the world a better place!
Machine Parts Quality Control
Parts manufacturing:
All parts are strictly produced according to the designer's drawings.
Quality: 100% parts are inspected in our lab before assembled to ensure a full compliance to the drawings.
Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
After the machine passed FAT (Factory Acceptance Test), the machine will be packed with stretch film and foam paper, with
moisture-proof material inside and wooden box outside.
moisture-proof material inside and wooden box outside.
HOW TO FIND NOVA INTELLIGENT?
❤
Nova Intelligent locates in Guangzhou China. We have our own factory focus design and manufacture of packing machineries.
❤
You can send us inquiry directly on ALIBABA or start chatting with our sales manger online.
WHAT IS THE TRADING PROCESS?
❤
Send Nova Intelligent an request and tell your basic inquiry
❤
Nova Intelligent sales manager will reply you in short time and add instant chatting tool.
❤
If we can fullfill your request and you interested in our products, you are welcomed to visit our factory anytime.
❤
Discuss equipment details and finally sign sales contact.
❤
Put machine into production / Providing machine testing video before shipment.
❤
Sea shipment arranged / machine commissioning at customer factory.
AVAIABLE TRADING TERMS:
❤
We support T/T, L/C, Alibaba Credit Insurance
SEE NOVA INTELLIGENT HOW TO ENSURE THE QUALITY!
❤
In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
❤
Each component before assembly needs strictly control by inspecting personnel.
❤
Each assembly is in charged by a master who has working experience for more than 3 years.
❤
After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory.
THE AFTER-SALE SERVICE OF NOVA INTELLIGENT!
❤
After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
❤
After the commissioning, we will package the equipment by standard export package for shipment.
❤
According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
