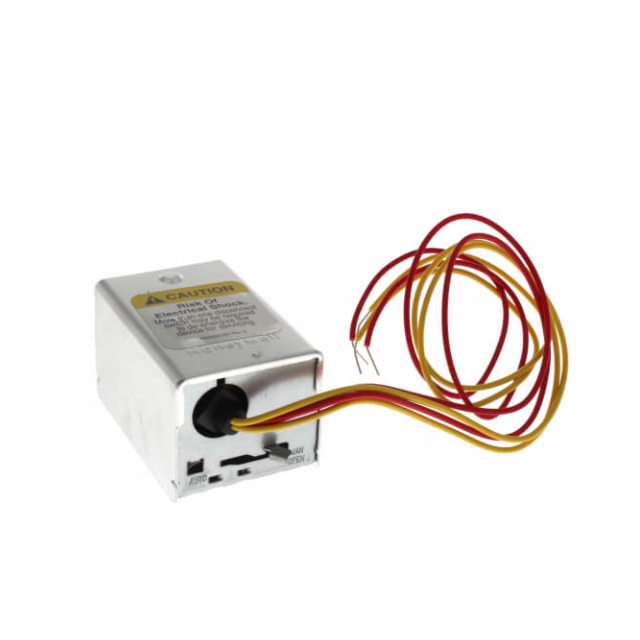

Honeywell (40003916-026) for Zone Valve 8043E Series Zone Valve Replacement Power Head 8043E1012 24V Red and Yellow Wires Water

Honeywell (40003916-026) for Zone Valve 8043E Series Zone Valve Replacement Power Head 8043E1012 24V Red and Yellow Wires Water

FOB Reference Price: Get Latest Price

≥48 Pieces

US $25

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: YAHE

Keyword:: honeywell zone valve replacement head

model number:: V8043E Zone Valves

Quick Details

Port Size:: STANDARD

Place of Origin:: Zhejiang, China

Model Number:: 40003916-026

Brand Name:: YAHE

Keyword:: honeywell zone valve replacement head

model number:: V8043E Zone Valves

FEATURES AT A GLANCE

* Voltage: 24V
* Frequency: 50/60Hz
* Electrical Connections: screw terminal block
* Electrical Connection Location: Same side of manual lever
* Aux Switch Ratings: 4.4 A running @ 120V
* Aux Switch Ratings: 50 VA pilot duty @ 24V
* Maximum Ambient Temperature: 125F
* Used With Valve: Two-way
* Used With Valve Action: Spring return to close

SALES AND SERVICE NETWORK

FAQ

Question:
can i replace the V8043E1061 with this?

Answer:
Yes - as long as you don’t have the VERY old style valve body it’s a simple exchange. Just confirm that inside the cover of your power head, there are only TWO screws on the bottom plate securing it to the valve body. If there are 4 screws, the installation is more complex and requires a conversion kit.
By Robert H. on January 30, 2021

Question:
Can this replace V8043F1036?

Answer:
The 40003916-026 (call it XXX for brevity )is actually a replacement head for a 48043E. Notice that the V8043F1036 has the connection wires built into the unit and the connections made by screws, whereas the 48043E has connections made outside the unit by wire-nuts. If your valve requires 4 screws to hold the replacem… see more
By Eugene G. Wood on February 2, 2019

Question:
Can I replace the M847D1004 with this?

Answer:
Yes!!
By dave drick on October 9, 2019

Question:
what is the warranty?

Answer:
I’ve never seen one fail less than about 10 years and then it’s almost always the end switch. Don’t know what the actual Warantee is though.
By Robert H. on January 30, 2021

Question:
can i replace the 40004850-001 with this?

Answer:
I don't think so. It replaces Honeywell V2031 A, B. V8031 A, B. V8343 A, B.
By Yosemite Sam on January 27, 2022 See more answers (1)

Question:
Will this work with V8043-E1012?

Answer:
Should be the correct part for that number.
By Robert H. on January 27, 2022

Question:
will this work for a V8043E1079?

Answer:
Yes - unless you have one of the very old type valves, you can just remove the old power head and replace with the new one. Requires no plumbing skills - just remove cover and remove the TWO (2) screws holding the base of the power head onto valve body.
NOTE: if there are FOUR screws securing the power head, you have… see more
By Robert H. on January 30, 2021 See more answers (1)

Question:
Can I replace v8043E1012 with this?

Answer:
Yes
By Jim Michaud on August 19, 2018
