Quick Details
-
Brand Name:
-
Huafan
-
Model Number:
-
HFT-NH3
-
Product name:
-
n3 analyzer ammonia gas detector
-
signal output:
-
RS485 Modbus
-
Certificate:
-
CE ATEX
-
Explosion proof:
-
Exd II CT6
-
Sensor:
-
electrochemical sensor
-
Working Voltage:
-
24V
-
Display:
-
LCD
-
Measure Range:
-
0-200ppm
-
Alarm Type:
-
Sound+Light Alarm
-
Resolution:
-
1ppm
Quick Details
-
Type:
-
Fixed
-
Warranty:
-
1year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Huafan
-
Model Number:
-
HFT-NH3
-
Product name:
-
n3 analyzer ammonia gas detector
-
signal output:
-
RS485 Modbus
-
Certificate:
-
CE ATEX
-
Explosion proof:
-
Exd II CT6
-
Sensor:
-
electrochemical sensor
-
Working Voltage:
-
24V
-
Display:
-
LCD
-
Measure Range:
-
0-200ppm
-
Alarm Type:
-
Sound+Light Alarm
-
Resolution:
-
1ppm
Products Description

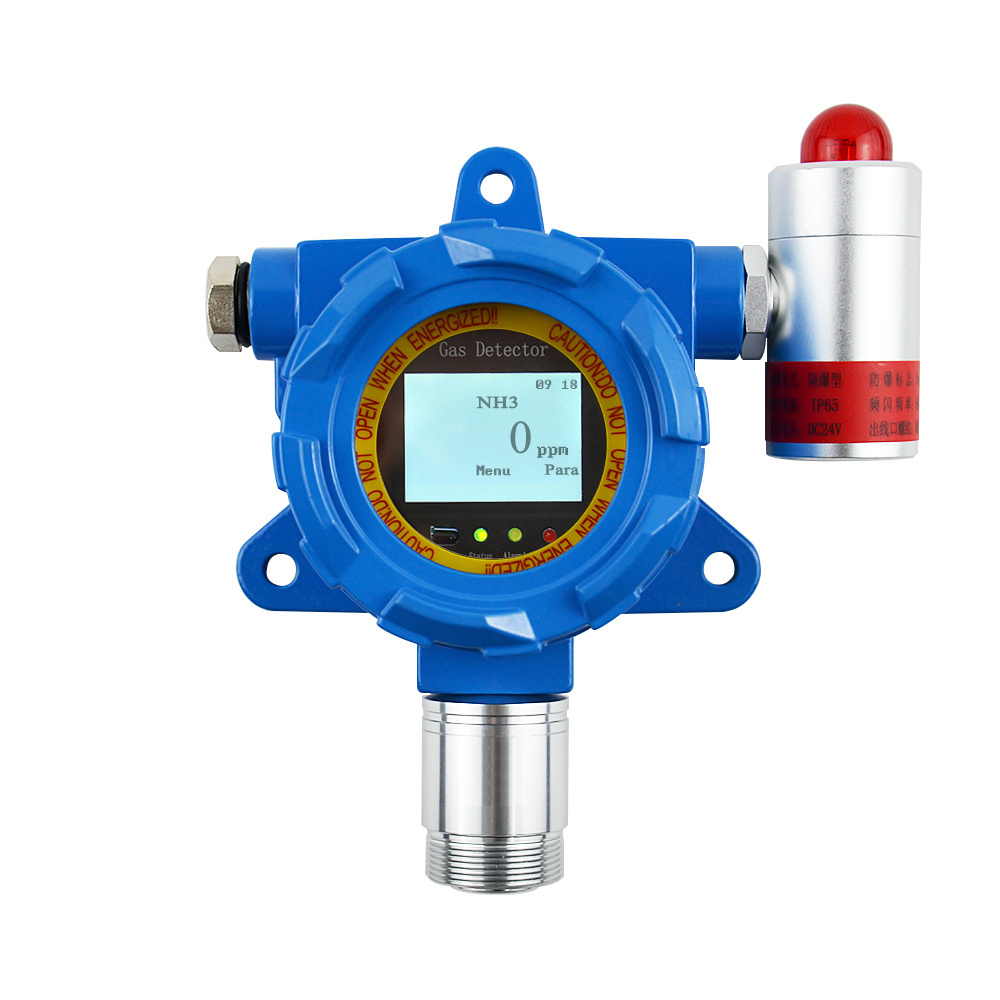

Atex explosion proof gas leak detector n3 analyzer ammonia gas detector for poultry RS485 Output
This fixed NH3 gas detector support 4-20ma and RS485 Modbus RTU protocol to collects oxygen concentration in air.With english display,simple key buttons operation and remote control to set up parameters.
●
Explosion proof housing
●
Certificate:CE,ATEX
●
IP65 water dust proof
●
1 year free warranty
● Optional audible visual alarm lamp
● Support 4-20ma+RS485Modbus
●
Measure range 0-200ppm
Product Paramenters
|
Product name
|
Fixed Ammonia NH3 Gas Leak Detector Alarm Monitor RS485 Output
|
|
Product Size:
|
142mm×178.5mm×91mm
|
|
Product weight:
|
1130g
|
|
Detect Gas:
|
NH3 Ammonia
|
|
Measure range:
|
0-200ppm
|
|
Resolution
|
1ppm
|
|
Response time:
|
≤20s
|
|
Working voltage:
|
DC24V
|
|
Output signal:
|
4-20mA signal output +RS485 Modbus output
|
|
Options function:
|
with audible & visual alarm need $15/pc
|
|
Temperature range:
|
- 20 ℃ ~ 50 ℃
|
|
Humidity
|
15%-90%(RH)
|
|
Certificate:
|
CE,ATEX,ISO9001
|
|
Explosion-proof marks:
|
Exd II CT6
|
|
IP class:
|
IP65
|
|
Transmission distance:
|
<1000 m
|
●
Imported sensor,high accuracy and sensitivity.
● With relay output, can drive ventilator or solenoid valve.
● Monitor gas concentration in open air in the environment.
● Two stage alarm with sound and light,LED display
● Explosion proof design, proof grade Ex dII CT6, IP65 water dust proof.
● Independent acousto-optic alarm,need extra cost $15/pc.
● With 4-20mA and RS485 signal output, being compatible with PLC, DCS andother control system.
● Monitor gas concentration in open air in the environment.
● Two stage alarm with sound and light,LED display
● Explosion proof design, proof grade Ex dII CT6, IP65 water dust proof.
● Independent acousto-optic alarm,need extra cost $15/pc.
● With 4-20mA and RS485 signal output, being compatible with PLC, DCS andother control system.
