1. High-frequency rail quenching, high hardness and wear resistance
2. Spindle with angular contact ball bearings, high-speed high rigidity.
3. Instrument lathe upgrade products, with a high cost, ball screw inside
- Product Details
- {{item.text}}
Quick Details
-
Max. Spindle Speed (r.p.m):
-
2200 r.p.m
-
Max. Weight of Workpiece(kg):
-
50
-
Width of bed (mm):
-
260 mm
-
Spindle Motor Power(kW):
-
4
-
Max. Turned Length (mm):
-
320
-
Travel (X Axis)(mm):
-
280 mm
-
Travel (Z Axis)(mm):
-
320 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
1480x800x1600mm
-
Brand Name:
-
RUNFA
-
Model Number:
-
CK0640
-
Voltage:
-
220V/380V,50HZ
-
Weight (KG):
-
1000
-
Max.Swing over bed:
-
300mm
-
Max. swing over carriage:
-
100mm
-
Spindle bore:
-
48mm
-
Spindle speed:
-
150-2200rpm
-
Max.turning length:
-
320mm
-
Main spindle motor:
-
4kw
-
X/Z axis travel:
-
280/320mm
-
X/Z axis servo motor:
-
4/4N.m
-
X/Z rapid speed:
-
5/10m/min
-
Diameter of tailstock quill:
-
52mm
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
320
-
Year:
-
2022
-
Max. Spindle Speed (r.p.m):
-
2200 r.p.m
-
Max. Weight of Workpiece(kg):
-
50
-
Width of bed (mm):
-
260 mm
-
Spindle Motor Power(kW):
-
4
-
Max. Turned Length (mm):
-
320
-
Travel (X Axis)(mm):
-
280 mm
-
Travel (Z Axis)(mm):
-
320 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
1480x800x1600mm
-
Brand Name:
-
RUNFA
-
Model Number:
-
CK0640
-
Voltage:
-
220V/380V,50HZ
-
Weight (KG):
-
1000
-
Max.Swing over bed:
-
300mm
-
Max. swing over carriage:
-
100mm
-
Spindle bore:
-
48mm
-
Spindle speed:
-
150-2200rpm
-
Max.turning length:
-
320mm
-
Main spindle motor:
-
4kw
-
X/Z axis travel:
-
280/320mm
-
X/Z axis servo motor:
-
4/4N.m
-
X/Z rapid speed:
-
5/10m/min
-
Diameter of tailstock quill:
-
52mm
Product Overview

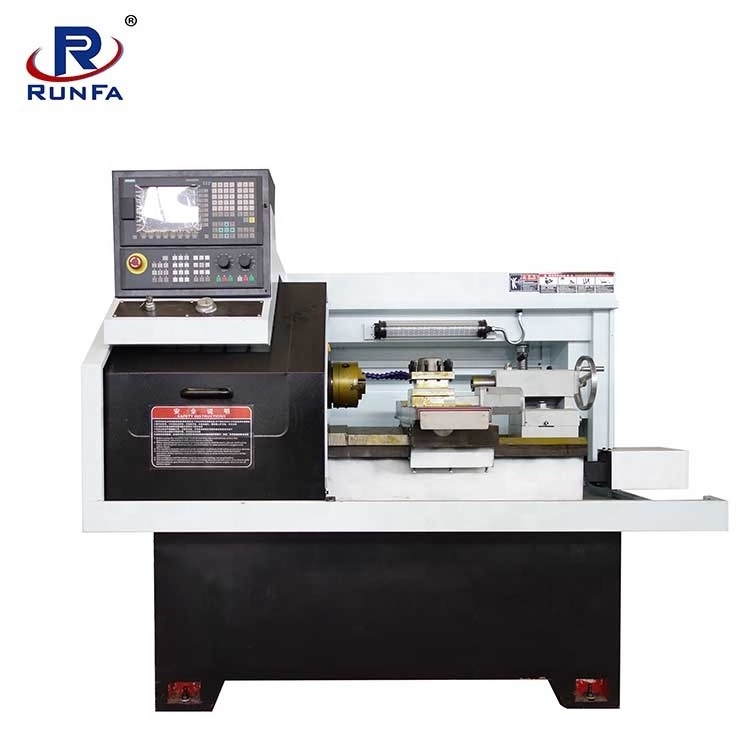

CK0640 CNC LATHE MACHINE
The CK0640 small hobby cnc horizontal lathe turning machines is widely used in electrical, instrumentation equipment industry,automobile, motorcycle accessories, fastener bearings, photographic equipment, film machinery, hardware watches and clocks,glasses, cultural and educational supplies, electrical appliances, valves, gas fittings and other high-precision complex parts Of the processing and manufacturing, CK0640 small hobby cnc horizontal lathe turning machines metal processing industry is the most efficient and efficient equipment.
FEATURES AT A GLANCE
CK0640 small hobby cnc horizontal lathe turning machines
1. High-frequency rail quenching, high hardness and wear resistance
2. Spindle with angular contact ball bearings, high-speed high rigidity.
3. Instrument lathe upgrade products, with a high cost, ball screw inside
1. High-frequency rail quenching, high hardness and wear resistance
2. Spindle with angular contact ball bearings, high-speed high rigidity.
3. Instrument lathe upgrade products, with a high cost, ball screw inside
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
Specifications
|
Unit
|
CK0640
|
CK6125
|
CK6130
|
CK6132
|
|
Max.swing over bed
|
mm
|
Φ200
|
Φ250
|
Φ300
|
Φ320
|
|
Max.swing over cross slide
|
mm
|
Φ100
|
Φ125
|
Φ130
|
Φ140
|
|
Max.processing length
|
mm
|
200
|
200
|
400
|
400
|
|
X/Z axis travel
|
mm
|
200/240
|
220/250
|
280/400
|
300/400
|
|
Spindle nose
|
--
|
A2-5
|
A2-5
|
A2-5
|
A2-5
|
|
Spindle bore
|
mm
|
φ48
|
φ48
|
φ48
|
φ48
|
|
Through hole bar size
|
mm
|
Φ40
|
Φ40
|
Φ40
|
Φ40
|
|
Max.spindle speed
|
Rpm
|
2200
|
2200
|
2200
|
2200
|
|
Chuck size
|
mm
|
160
|
160
|
160
|
160
|
|
Main spindle motor
|
Kw
|
3
|
3
|
4
|
4
|
|
X/Z axis repeatability
|
mm
|
±0.005
|
±0.005
|
±0.005
|
±0.005
|
|
X/Z axis feeding motor torque
|
mm
|
X:4/Z:4
|
X:4/Z:4
|
X:4/Z:4
|
X:4/Z:4
|
|
X/Z rapid move speed
|
m/min
|
X:6/Z:8
|
X:6/Z:8
|
X:6/Z:8
|
X:6/Z:8
|
|
Tailstock diameter
|
mm
|
Φ52（optional）
|
Φ52（optional）
|
Φ52（optional）
|
Φ52（optional）
|
|
Quill traverse
|
mm
|
90(optional)
|
90(optional)
|
90(optional)
|
90(optional)
|
|
Quill taper
|
mm
|
MT4(optional)
|
MT4(optional)
|
MT4(optional)
|
MT4(optional)
|
|
Tool post type
|
--
|
4 electric tool post
|
4 electric tool post
|
4 electric tool post
|
4 electric tool post
|
|
Cutting tool shape size
|
mm
|
16x16
|
16x16
|
16x16
|
16x16
|
|
Guide form
|
--
|
Dual rack
|
Dual rack
|
Dual rack
|
Dual rack
|
|
Total power capacity
|
KVA
|
7
|
8
|
7
|
7
|
|
Machine dimensions(LxWxH)
|
mm
|
1500x1000x1600
|
1520x1100x1650
|
1600x1100x1650
|
1600X1100X1650
|
|
Net weight
|
KG
|
800
|
850
|
950
|
1000
|
Machine Configuration
Standard Configuration:
1- CNC system: GSK928;
2- Pneumatic collet;
3- Gang type tool carrier;
4- Automatic lubrication system;
5- Work lighting system;
6- Turning cooling system;
7- Cast iron stand.
Optional Configuration:
1- CNC system: GSK980, KND, Siemens 808D, Fanuc, etc.;
2- Manual chuck;
3- Pneumatic chuck;
4- Hydraulic chuck (solid or hollow);
5- Manual tailstock;
6- Pneumatic tailstock;
7- Hydraulic tailstock;
8- Automatic feeder;
9- Vertical four-station turret.
1- CNC system: GSK928;
2- Pneumatic collet;
3- Gang type tool carrier;
4- Automatic lubrication system;
5- Work lighting system;
6- Turning cooling system;
7- Cast iron stand.
Optional Configuration:
1- CNC system: GSK980, KND, Siemens 808D, Fanuc, etc.;
2- Manual chuck;
3- Pneumatic chuck;
4- Hydraulic chuck (solid or hollow);
5- Manual tailstock;
6- Pneumatic tailstock;
7- Hydraulic tailstock;
8- Automatic feeder;
9- Vertical four-station turret.
PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS
FAQ
1. What to do when you don’t know which model machine to buy?
You only need to tell us your workpiece size,such as round steel diameter
Or square steel size,if convenient,you can send us your product photos.
We could provide you best model and suggestions on your requirement.
2. How to place order?
You can place order via alibaba trade system,of course,you can also place order directly to us,we would provide you proforma invoice with all the machine detail and your information on the invoice.You can transfer the deposit by the invoice to us directly.
You only need to tell us your workpiece size,such as round steel diameter
Or square steel size,if convenient,you can send us your product photos.
We could provide you best model and suggestions on your requirement.
2. How to place order?
You can place order via alibaba trade system,of course,you can also place order directly to us,we would provide you proforma invoice with all the machine detail and your information on the invoice.You can transfer the deposit by the invoice to us directly.
3. What’s your MOQ?
We don’t have limit of your first order as example for testing and trial our machine.You can buy one set or more upon your
require.
4. Do you have warranty of your product?
YES.
The product is under our firm’s warranty for 12 months after it is delivered. Any defect caused by human error,
mishandling,foreseeable conditions will not be covered by this warranty.For oversea customer, we only provide the accessory for free within warranty period.
5. Do you have After-sale Serivce?
YES.
We provide free parts and parts delivery, when manufacture defects has been detected during normal operation (vulnerable parts not included) under warranty period.
6. Do you have optional machine tools for sale?
YES.
We have some kinds of optional tools according their work need.
We don’t have limit of your first order as example for testing and trial our machine.You can buy one set or more upon your
require.
4. Do you have warranty of your product?
YES.
The product is under our firm’s warranty for 12 months after it is delivered. Any defect caused by human error,
mishandling,foreseeable conditions will not be covered by this warranty.For oversea customer, we only provide the accessory for free within warranty period.
5. Do you have After-sale Serivce?
YES.
We provide free parts and parts delivery, when manufacture defects has been detected during normal operation (vulnerable parts not included) under warranty period.
6. Do you have optional machine tools for sale?
YES.
We have some kinds of optional tools according their work need.
