Quick Details
-
Power:
-
86kw
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Sinoway
-
Maximum Digging Height:
-
8443mm
-
Maximum Digging Depth:
-
5879mm
-
Machine Weight:
-
20000 kg
-
Max Digging Radius:
-
9000mm
-
Rated Speed:
-
5.4km/h
-
Hydraulic flow rate:
-
198L/min
-
Grade ability:
-
70%
-
Ground pressure:
-
0.014Mpa
-
Slewing speed:
-
11rpm
-
Bucket Capacity:
-
0.52 cbm
-
Color:
-
Customer's Required
-
Brand:
-
SINOWAY
Quick Details
-
Operating Weight:
-
20 ton
-
Bucket capacity:
-
0.4 m3
-
Engine Brand:
-
Cummins
-
Power:
-
86kw
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Sinoway
-
Maximum Digging Height:
-
8443mm
-
Maximum Digging Depth:
-
5879mm
-
Machine Weight:
-
20000 kg
-
Max Digging Radius:
-
9000mm
-
Rated Speed:
-
5.4km/h
-
Hydraulic flow rate:
-
198L/min
-
Grade ability:
-
70%
-
Ground pressure:
-
0.014Mpa
-
Slewing speed:
-
11rpm
-
Bucket Capacity:
-
0.52 cbm
-
Color:
-
Customer's Required
-
Brand:
-
SINOWAY
Product Description

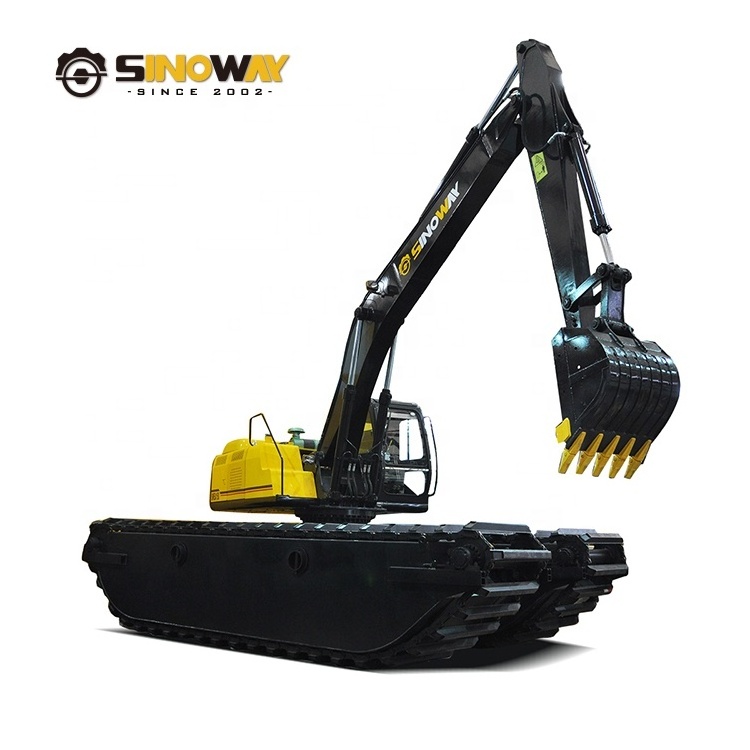

Sinoway SWEA150 amphibious excavator/marsh buggy is specifically designed to manoeuvre in marshy, swampy area and soft terrain, and it can also float on water as an added safety feature. It is completely self propelled and can virtually access all terrains, and yet requires minimum supporting transportation and hoisting equipment. When fitted with a long reach front, the machine offers an unparalleled package with unmatched productivity for your investment.
Proven in projects like oil and gas industry, pipeline, land reclamation, waterway deepening, delta works, etc., Sinoway team takes every single chance to enhance our swamp buggy excavators' reputation. Thus we have developed a complete line of swamp excavator from 0.2m3 bucket, up to 1.1m3, with optional for long reach boom amphibious excavator.
Main Features
Equipped with Cummins Isuzu or Doosan engine with good performance and reliability.
Multi Synchronous Drive System
Proprietary multi-synchronous drive motor design.Motors are mounted on front and rear of each pontoon.It offers superior tracking power as compared to a single motor design. A similar concept that is applied to a full time 4x4 gear system of a land vehicle.
Amphibious Modular Design
Designed to be easily transported by low bed trailer. Amphibious modules and attachments are designed to be able to fit into 40ft container. Both the assembly and disassembly processes can be achieved in under 3 hours if equipped with proper tools and crane.
No special tooling is required for the assembly and disassembly process.
Supplementary pontoons can be added on each side to boost stability in deeper water operation.
Spud piles attach to supplementary pontoons help to overcome buoyancy effect, it offers added stability and enhanced operability.
Pontoons are designed and built with provision for future addition of supplementary pontoon and spud system.
Hydraulic Undercarriage Pontoons
Each pontoon has 3 watertight compartments and manhole.The track system (shoe, chain, roller, pin and bushing) is extremely controlled tight tolerance. The track shoe supported by multiple stands of track chains provided the advantage of uniform pulling force and superior weight distribution across each track shoe. The shape of shoe is optimized to generate the powerful thrust force under water and driving force on the ground also.
Driverr Cabin
Operater cabin is supported with innovative silicone rubber shock absorber, which minimize the shock brought by the rough terrain and engine or hydraulic vibration and impact transmitted to the cabin, increase the stability of cabin and improve the operators'sitting quality and operating comfort.
Proven in projects like oil and gas industry, pipeline, land reclamation, waterway deepening, delta works, etc., Sinoway team takes every single chance to enhance our swamp buggy excavators' reputation. Thus we have developed a complete line of swamp excavator from 0.2m3 bucket, up to 1.1m3, with optional for long reach boom amphibious excavator.
Main Features
Equipped with Cummins Isuzu or Doosan engine with good performance and reliability.
Multi Synchronous Drive System
Proprietary multi-synchronous drive motor design.Motors are mounted on front and rear of each pontoon.It offers superior tracking power as compared to a single motor design. A similar concept that is applied to a full time 4x4 gear system of a land vehicle.
Amphibious Modular Design
Designed to be easily transported by low bed trailer. Amphibious modules and attachments are designed to be able to fit into 40ft container. Both the assembly and disassembly processes can be achieved in under 3 hours if equipped with proper tools and crane.
No special tooling is required for the assembly and disassembly process.
Supplementary pontoons can be added on each side to boost stability in deeper water operation.
Spud piles attach to supplementary pontoons help to overcome buoyancy effect, it offers added stability and enhanced operability.
Pontoons are designed and built with provision for future addition of supplementary pontoon and spud system.
Hydraulic Undercarriage Pontoons
Each pontoon has 3 watertight compartments and manhole.The track system (shoe, chain, roller, pin and bushing) is extremely controlled tight tolerance. The track shoe supported by multiple stands of track chains provided the advantage of uniform pulling force and superior weight distribution across each track shoe. The shape of shoe is optimized to generate the powerful thrust force under water and driving force on the ground also.
Driverr Cabin
Operater cabin is supported with innovative silicone rubber shock absorber, which minimize the shock brought by the rough terrain and engine or hydraulic vibration and impact transmitted to the cabin, increase the stability of cabin and improve the operators'sitting quality and operating comfort.
Machine Show
Product Paramenters
|
Engine
|
|
|
Model
|
Isuzu/Cummins/Doosan
|
|
Type
|
Six-cylinder,water-cooled turbocharged,mechanical injection
|
|
Rated power
|
110KW
|
|
Main Technical Specification
|
|
|
Operating weight
|
30000Kg
|
|
Standard bucket capacity
|
0.9m3
|
|
Slewing speed
|
11rpm
|
|
Stick digging force
|
97.64KN
|
|
Bucket digging force
|
122.85KN
|
|
Main Features
|
|
|
Tracked pontoon structure
|
|
|
Big torque travelling device
|
|
|
Big circular arc structure
|
|
|
High capacity of fuel tank
|
|
|
Main Applications
|
|
|
River/Beach earth moving
|
|
|
Swamp works
|
|
|
Dredging applications
|
|
|
Delta works
|
|
|
Waterway deepening
|
|
|
Hydraulic System
|
|
|
Main pump
|
KAWASAKI
|
|
Main valve
|
KAWASAKI
|
|
Motor
|
KAWASAKI
|
|
Hydraulic flow rate
|
2x210L/min
|
|
Hydraulic pressure
|
32MPa
|
|
Travelling System
|
|
|
Travelling speed
|
0~5.4km/h
|
|
Grade ability
|
65%
|
|
Ground pressure
|
0.014MPa
|
|
No. of chains
|
300%
|
|
Dimensions
|
|
|
Overall length
|
11200mm
|
|
Overall width
|
5350mm
|
|
Overall height
|
3900mm
|
|
Ground clearance
|
1192mm
|
|
Length of pontoon
|
8000mm
|
|
Width of pontoon
|
1500mm
|
|
Height of pontoon
|
1500mm
|
|
Optional
|
|
|
Wide bucket
|
|
|
Operating Scope
|
|
|
Stick length
|
2900mm
|
|
A: Max. cutting height
|
10577mm
|
|
B: Max. dumping height
|
7810mm
|
|
C: Max. digging depth
|
5704mm
|
|
D: Max. reach
|
10000mm
|
