Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
China
-
Brand Name:
-
YUFA
-
Voltage:
-
380V 50Hz 3phases
-
Dimension(L*W*H):
-
5.5 m*1.3m*1.3m
-
Weight:
-
3000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-

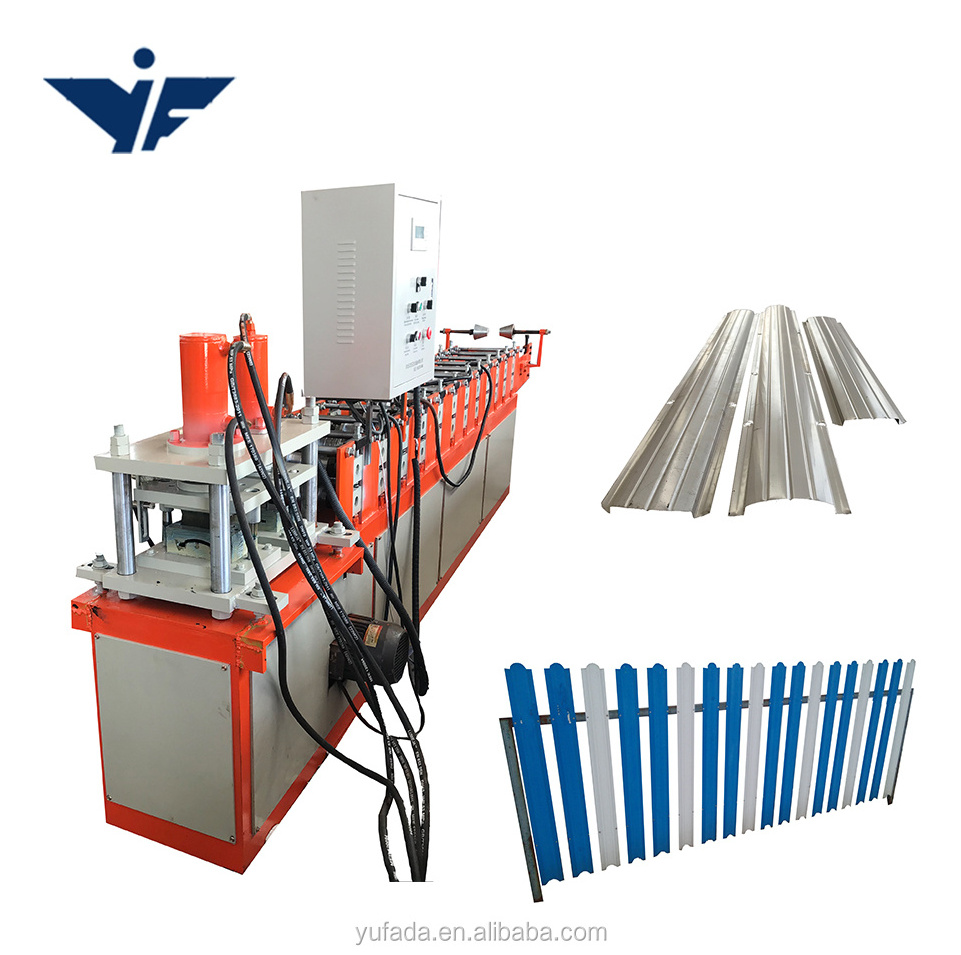

America used fence making machine
-
Power:
-
Hydraulic
-
Automation:
-
Automatic
-
Raw material:
-
PPGI/Galvanized sheet
-
Raw material thickness:
-
0.3-0.8 mm
-
material of cutting blade:
-
Cr12
-
Machine color:
-
As customer need
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
3-6 m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
China
-
Brand Name:
-
YUFA
-
Voltage:
-
380V 50Hz 3phases
-
Dimension(L*W*H):
-
5.5 m*1.3m*1.3m
-
Weight:
-
3000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
America used fence making machine
-
Power:
-
Hydraulic
-
Automation:
-
Automatic
-
Raw material:
-
PPGI/Galvanized sheet
-
Raw material thickness:
-
0.3-0.8 mm
-
material of cutting blade:
-
Cr12
-
Machine color:
-
As customer need
Welcome to YUFADA,we are your manufacturer of Glazed Tile galvanized corrugated sheets maintain expert.
Home Products categories Company profile Contacts
Manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system- pre cut-- output table
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | As customer' drawing |
| 2 | Thickness of feeding material | 0.3-0.8 mm coil sheet |
| 3 | Roller station | 12 stations |
| 4 | Shaft Diameter | 60 mm |
| 5 | Productivity | 5-15 m/min |
| 6 | Rollers' material | 45# steel with 0.05mm chrome |
| 7 | Shaft material | 45# steel with 0.05mm chrome |
| 8 | Weight | 1.5 ton |
| 9 | length | 4.5 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 3 Tons |
| 13 | Motor | 5.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 1.5 inch |
| 16 | Cutting system | Hydraulic cutter |
