Quick Details
-
Output Speed:
-
2-100(RPM)
-
Warranty:
-
1year
-
Weight (KG):
-
100 KG
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GUOMAO Gearbox for cement mixer
-
material:
-
cast iron housing
-
Color:
-
According to client's requirement
-
certification:
-
ISO9001:2008
-
Application:
-
Machine Tool
-
Type:
-
Reduction Motor
-
Keyword:
-
Gerbox
-
Structures:
-
Bearing + Gear + Box
-
Mounting Position:
-
Foot Mounted. Flange Mounted
-
Input Form:
-
Motor Flange
-
Product name:
-
Speed-up Gearbox for Wind Turbine Generator Right Angle Gear Reducer
Quick Details
-
Gearing Arrangement:
-
Helical
-
Output Torque:
-
200-50000 (N.m)
-
Input Speed:
-
980-3000RPM)
-
Output Speed:
-
2-100(RPM)
-
Warranty:
-
1year
-
Weight (KG):
-
100 KG
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GUOMAO Gearbox for cement mixer
-
material:
-
cast iron housing
-
Color:
-
According to client's requirement
-
certification:
-
ISO9001:2008
-
Application:
-
Machine Tool
-
Type:
-
Reduction Motor
-
Keyword:
-
Gerbox
-
Structures:
-
Bearing + Gear + Box
-
Mounting Position:
-
Foot Mounted. Flange Mounted
-
Input Form:
-
Motor Flange
-
Product name:
-
Speed-up Gearbox for Wind Turbine Generator Right Angle Gear Reducer

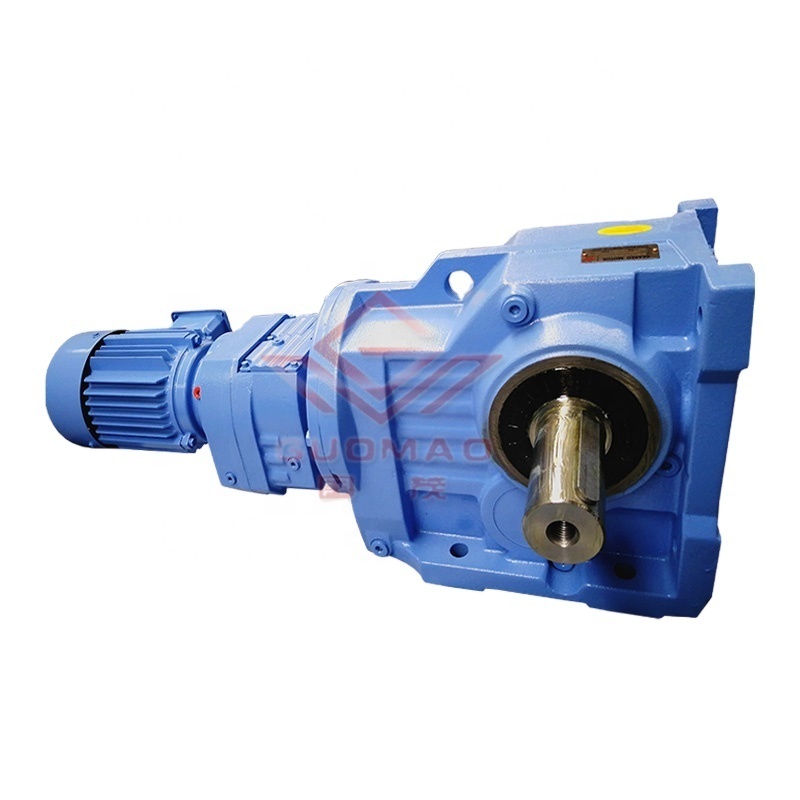

GK, GS Series Right Angle Drive Motor and Gearbox
K series helical bevel gearbox:
Product Features:
1-High modularization design:
may equip with various motor or other power input conveniently.
Same machine type may equip with various power motor. It is easy to realize the combination and junction between every machine type.
2-Transmission ratio:
fine division, wide scope.
The combined machine type may form very large transmission ratio, i.e. output very low rotary speed.
3-Form of installation:
the position to be installed is not limited.
4-High strength, compact dimension:
The box body is made of high strength cast iron. Gear and gear shaft adapts the gas carbonization, quenching and fine grinding process, therefore the bearing capacity of unit volume is high.
5-Long service life:
Under the condition of correct type chosen (including choosing suitable operation parameters) normal operation and maintenance,
the life of main parts of speed reducer (except wearing parts) should not be less than 20000 hours.
The wearing parts include lubricating oil, oil seal and bearing.
6-Low noise:
because main parts of speed reducer are processed, assembled and tested critically, therefore the noise of speed reducer is low.
7-High efficieny:
The gear unit can reach 95%, worm gear unit can reach 89%.
8-Large radial loading ability
9-Axial load ability of up to 5% of radial load.
|
Technical data
|
|
|
||
|
Gear unit reduction ratio
|
[i]
|
3.98 to 197.37
|
||
|
Multi-stage gear unit reduction ratio
|
[i]
|
94 to 32625
|
||
|
Output torque
|
[Nm]
([in-lb])
|
125 to 50000 (1110 to 442500) (also in reduced backlash version)
|
||
|
Motor power range
|
[kW] ([Hp])
|
0.12 to 200 (0.16 to 268)
|
||
|
Dimensional Description Type:
|
|
|
|
GK Type:
|
Foot mounted solid output shaft
|
|
|
GKF Type:
|
B5 flange mounted solid output shaft
|
|
|
GKA Type:
|
Shaft mounted & Hollow output shaft
|
|
|
GKAF Type:
|
B5 flange mounted & Hollow output shaft
|
|
|
GKAB/GKHB Type:
|
Housings of type GF & Hollow output shaft
|
|
|
GKAZ Type:
|
B14 flange mounted version with hollow shaft
|
|
|
GKH Type:
|
Hollow shaft & Shrink Disk
|
|
|
GKHF Type:
|
B5 flange-mounted version with hollow shaft
|
|
|
GKHZ Type:
|
B14 flange-mounted version with hollow shaft & shrink disk
|
|
|
GKAT/GKHT Type:
|
Altered type by adding torque arm and other accessories on GKA/GKH type
|
|
|
GK..SZ..AD.. Type:
|
Input shaft type
|
|
|
GK...R Type:
|
Combined types of GK and GR
|
|
|
Special Design:
|
Customized service are available, professional technical team serve at any time.
|
|
|
Type
|
GK37
|
GK47
|
GK57
|
GK67
|
GK77
|
GK87
|
GK97
|
GK107
|
GK127
|
||||||||
|
Structure form
|
K KA KF KAF KAZ KAT KAB
|
|
|
|
|
|
|
|
|
||||||||
|
Input power(KW)
|
0.18-3
|
0.18-3
|
0.18-5.5
|
0.18-5.5
|
0.37-11
|
0.75-22
|
1.1-30
|
3-45
|
7.5-90
|
||||||||
|
Transmission ratio
|
5.36-106.38
|
5.81-131.87
|
6.57-145.14
|
7.14-144.79
|
7.24-192.18
|
7.19-197.37
|
8.95-176.05
|
8.74-1410.46
|
8.68-146.07
|
||||||||
|
Allowable torque(N.m)
|
200
|
400
|
600
|
820
|
1550
|
2700
|
4300
|
8000
|
13000
|
||||||||
|
Weight(kg)
|
11
|
20
|
27
|
33
|
57
|
85
|
130
|
250
|
380
|
||||||||
|
Main Models:
|
|
|
|
GK Type |
GK37, GK47, GK57, GK67, GK77, GK87, GK97, GK107, GK127, GK157, GK167, GK187 |
|
|
GKF Type |
GKF37, GKF47, GKF57, GKF67, GKF77, GKF87, GKF97, GKF107, GKF127, GKF157 |
|
|
GKA Type |
GKA37, GKA47, GKA57, GKA67, GKA77, GKA87, GKA97, GKA107, GKA127, GKA157, GKA167, GKA187
|
|
|
GKAF Type |
GKAF37, GKAF47, GKAF57, GKAF67, GKAF77, GKAF87, GKAF97, GKAF107, GKAF127, GKAF157
|
|
|
GKAB Type |
GKAB47, GKAB57, GKAB67, GKAB77, GKAB87, GKAB97, GKAB107
|
|
|
GKHB Type |
GKHB47, GKHB57, GKHB67, GKHB77, GKHB87, GKHB97, GKHB107
|
|
|
GKAZ Type |
GKAZ37, GKAZ47, GKAZ57, GKAZ67, GKAZ77, GKAZ87, GKAZ97, GKAZ107, GKAZ127, GKAZ157
|
|
|
GKH Type |
GKH37, GKH47, GKH57, GKH67, GKH77, GKH87, GKH97, GKH107, GKH127, GKH157, GKH167, GKH187
|
|
|
GKHF Type |
GKHF37, GKHF47, GKHF57, GKHF67, GKHF77, GKHF87, GKHF97, GKHF107, GKHF127, GKHF157
|
|
|
GKHZ Type |
GKHZ37, GKHZ47, GKHZ57, GKHZ67, GKHZ77, GKHZ87, GKHZ97, GKHZ107, GKHZ127, GKHZ157
|
|
|
GKAT Type |
GKAT37, GKAT47, GKAT57, GKAT67, GKAT77, GKAT87, GKAT97, GKAT107, GKAT127, GKAT157
|
|
|
GKHT Type |
GKHT37, GKHT47, GKHT57, GKHT67, GKHT77, GKHT87, GKHT97, GKHT107, GKHT127, GKHT157
|
|
|
GK...R Type |
GK..37R17, GK..47R37, GK57..R37, GK67..R37, GK..77R37, GK..87R57, GK..97R57, GK..107R77, GK..127R77, GK..157R97, GK..167R97, GK..187R97, GK..157R107, GK..167R107, GK..187R107
|
|
|
GK..SZ..AD.. Type |
GK..SZ37AD.., GK..SZ47AD.., GK..SZ57AD.., GK..SZ67AD.., GK..SZ7AD..7AD.., GK..SZ87AD.., GK..SZ97AD.., GK..SZ107AD.., GK..SZ127AD.., GK..SZ157AD.., GK..SZ167AD.., GK..SZ187AD..
|
|
First rate equipment
Factory
Workshop
One of the workshop
Warehouse
A part view of our warehouse
Exhibition Hall
Overall exhibition for our products, factory and history
Packing Details : sea worthy exporting package suitable for long distance
Delivery Details : 20-35 workdays after receiving deposit
Package
1. Complete package details
2. Stable protective ways
3. Clear markings
For Winches
Suitable for various machineries
For Flter Pesses
Suitable for many industries like steel, cement, food etc.
For Cranes
Suitable for different working conditions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 20-35 workdays, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample in pay.
