Quick Details
-
Size:
-
99.7*1016mm
-
Weight (KG):
-
3.8 kg
-
Max Applied pressure:
-
600 psi (4.14MPa)
-
Max Feed flow:
-
16gpm(3.6m³/h)
-
Max Operating temperature:
-
45 ℃
-
Max SDI:
-
5.0
-
PH range of feed water:
-
2~11
-
Keywords:
-
Ro Membrane
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Vontron
-
Material:
-
Fiberglass
-
Size:
-
99.7*1016mm
-
Weight (KG):
-
3.8 kg
-
Max Applied pressure:
-
600 psi (4.14MPa)
-
Max Feed flow:
-
16gpm(3.6m³/h)
-
Max Operating temperature:
-
45 ℃
-
Max SDI:
-
5.0
-
PH range of feed water:
-
2~11
-
Keywords:
-
Ro Membrane
Recommend Products
Specification
Overview
Brackish water series membrane elements have the characteristics of low pressure operation, high water yield and good
desalination. It is suitable for high-purity water equipment in electronic and electric power industries, industrial water of
various scales, power plant boiler replenishing water and other industrial water, and can also be used for the treatment of
high-concentration saline waste water, beverage water manufacturing and other brackish water applications.
desalination. It is suitable for high-purity water equipment in electronic and electric power industries, industrial water of
various scales, power plant boiler replenishing water and other industrial water, and can also be used for the treatment of
high-concentration saline waste water, beverage water manufacturing and other brackish water applications.
|
item
|
value
|
|
Place of Origin
|
Jiangsu,China
|
|
Brand Name
|
Vontron
|
|
Model Number
|

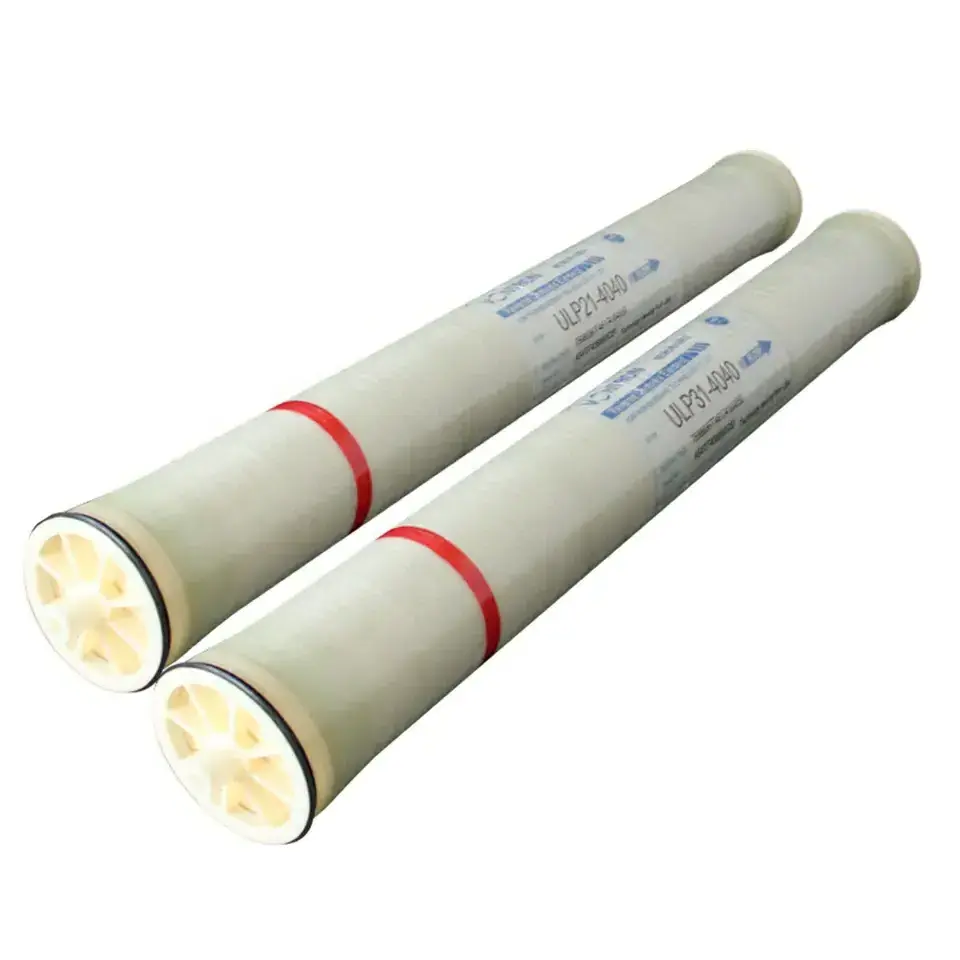

ULP21-4040
|
|
Material
|
Fiberglass
|
|
Active Membrane Area ft²(m²)
|
100 (9.3)
|
|
Permeate flow Rate GPD(m³/d)
|
2600（9.8）
|
|
Length
|
40 inch
|
|
Export Markets
|
Global
|
|
Rejection (%)
|
99.5
|
|
Test Condition
|
1500 ppm NaCl at 25℃ (77 ℉ ),225psi,PH=7,Recovery=15%
|
|
Max feed flow
|
8040:75gpm（17m³/hr） 4040: 16gpm（3.6m³/hr）
|
|
Operating temperature
|
45℃
|
