Quick Details
-
Brand Name:
-
TZBRT/OEM
-
Model Number:
-
10T 3/4" #420 clutch
-
Engine:
-
4-stroke, 2-13 horesepower
-
Drive Mode:
-
Chain/Shaft Drive
-
Wheel Size:
-
FR:10*4.5-5/ RR:11*7.10-5
-
Oil Tank Capacity:
-
10L
-
Maximum Speed:
-
60km/h
-
Displacement:
-
200cc
-
Brake Type:
-
Hydraulic Disc Brake
-
Name:
-
10T 3/4" #420 chain centrifugal clutch
-
Engine type:
-
Gasoline engine
-
Teeth:
-
10T
-
Chain number:
-
#40/41/420
-
Bore size:
-
3/4 inch (19.05mm)
-
Keyway:
-
3/16"
-
Net Weight:
-
1.3kg
-
Fit:
-
go kat, mini bike, drift trike
-
CPNO:
-
LHQ.00005
Quick Details
-
Type:
-
Go Karts Accessories
-
Engine Capacity:
-
50-200CC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TZBRT/OEM
-
Model Number:
-
10T 3/4" #420 clutch
-
Engine:
-
4-stroke, 2-13 horesepower
-
Drive Mode:
-
Chain/Shaft Drive
-
Wheel Size:
-
FR:10*4.5-5/ RR:11*7.10-5
-
Oil Tank Capacity:
-
10L
-
Maximum Speed:
-
60km/h
-
Displacement:
-
200cc
-
Brake Type:
-
Hydraulic Disc Brake
-
Name:
-
10T 3/4" #420 chain centrifugal clutch
-
Engine type:
-
Gasoline engine
-
Teeth:
-
10T
-
Chain number:
-
#40/41/420
-
Bore size:
-
3/4 inch (19.05mm)
-
Keyway:
-
3/16"
-
Net Weight:
-
1.3kg
-
Fit:
-
go kat, mini bike, drift trike
-
CPNO:
-
LHQ.00005

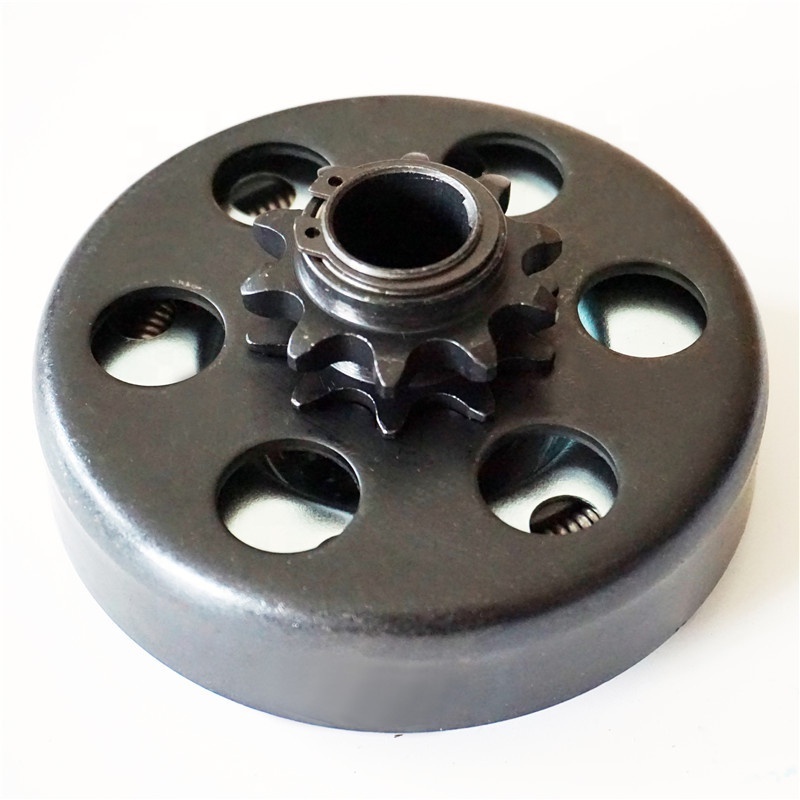

6.5 hp gas engine 3/4 bore centrifugal clutch with 10 tooth for mini kart
Features:
Excellent quality at a competitive price.
Easy to install.
Longer life than competitive clutches.
[Advantages]
Integral key design.
Sintered metal clutch shoes.
Heat dispersing spring-to-shoe design.
The Extreme-Duty Sprocket Centrifugal Clutch is ideal for the everyday demands of childrens yard-use go-karts. This clutch was designed to be a low-cost upgrade to the stock unit. A thermodynamically designed clutch shoe increases the clutch's capacity to absorb heat without damaging the clutch springs, resulting in longer life and better reliability.
There are many variables that play into the performance of a clutch. Tire size, rear sprocket size and rear drive set-up are a few of the main variables that could affect clutch performance. If you are using large tires or a small sprocket, your vehicle may require a belt drive system. Clutch performance is not based soley on the engine size.
How to oil the clutch?
Behind the snap ring, next to the sprocket teeth at the end of the clutch. There's an internal bronze bushing behind the snap ring that requires lubrication and it's up to you to put it there each time. With the engine off, squirt several drops of oil behind the snap ring while the bushing is warm.You can also oil the clutch before you ride, oil the clutch and give the oil a few mintues to penetrate down into the bushing, if you don't give the oil time to get down to the bushing, the oil will just fling off which is the same as not oiling it at all because the oil never reaches the bushing.
Don't put oil inside the clutch. The holes on the drum are to let the hot air out of the clutch. DON'T SQUIRT OIL IN THESE HOLES! When oil gets in the drum portion of the clutch it will cause excessive slippage, which means undue heat will be generated.
Taizhou Xinydd Machinery Co., Ltd. was founded in 2015. We located in Binhai Industrial Area, Taizhou, Zhejiang Province. We have professional engineers and management team in the producing of the clutches for U.S.A, Russian, Europe, Brazil, and other countries. We have enough ability to satisfy different requirements from yours in this field.Who could bring a lot of international experience and professional and an unparalleled level of service for you.
Q1. How to pay?
A:
TT, PAYPAL, WEST UNION, DP, DA, Credit
card
up to you.
Q2. What is your term of delivery?
A:
EXW, FOB, CFR, CIF, DDU.
Q3. How about your delivery time?
A: Generally, it will take
24-48 hours
after receiving your advance payment. Some is one week. The specific delivery time depends on the items and the quantity of your order.
Q4. How to produce customized products?
A: Yes, we
can produce
by your samples or technical drawings. We can build the molds and fixtures.
Q5. How to get a sample?
A: We
can supply
the sample if we have ready parts in stock.
Q6. Do you test all your goods before delivery?
A: Yes, we have
100%
test before delivery.
Q7: How do you make our business long-term and good relationship?
A: 1. We keep
good quality and competitive price
to ensure our customers benefit ;
2. We respect every customer
as our friend and we sincerely do business
and make friends with them, no matter where they come from.
