Quick Details
-
Warranty(Year):
-
3-Year
-
Product Weight（kg）:
-
6
-
Lamp Luminous Flux(lm):
-
6000lm
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-25 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
shenda
-
Model Number:
-
SD10B
-
Product name:
-
Clean Room Lighting
-
Power:
-
60W
-
Model:
-
MQ-Y60/SD10B
-
Lumen:
-
6000lm
-
Efficiency:
-
100lm/w
-
Size:
-
L1228*W628*H85mm
-
CCT:
-
6500K
-
PF:
-
0.95@230VAC full load
-
LED Chip:
-
LED SMD2835
-
Warranty:
-
3 Years
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Application:
-
Workshop
-
Lamp Body Material:
-
Iron
-
Warranty(Year):
-
3-Year
-
Product Weight（kg）:
-
6
-
Lamp Luminous Flux(lm):
-
6000lm
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-25 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
shenda
-
Model Number:
-
SD10B
-
Product name:
-
Clean Room Lighting
-
Power:
-
60W
-
Model:
-
MQ-Y60/SD10B
-
Lumen:
-
6000lm
-
Efficiency:
-
100lm/w
-
Size:
-
L1228*W628*H85mm
-
CCT:
-
6500K
-
PF:
-
0.95@230VAC full load
-
LED Chip:
-
LED SMD2835
-
Warranty:
-
3 Years
Products Description

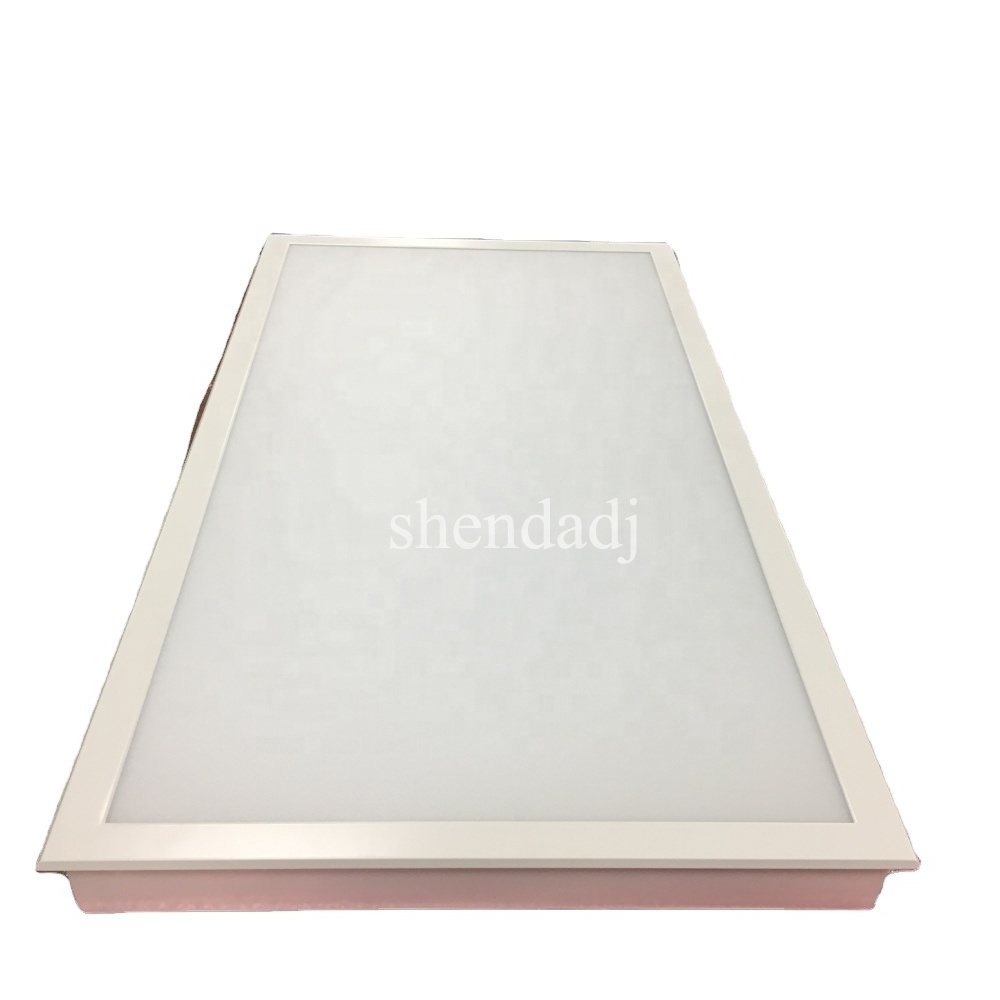

CLEANROOM LIGHTING
Model： SD10B/12B
Model： SD10B/12B
cleanroom recessed led panel are used in where hygiene keeps great importance, such as pharmaceutical industries, laboratories and hospitals as well as food production facilities. This classic type of fixtures represent a high level of dust-proof and water-proof which give a safe use and a cleaning environment to plants. Reliable led engine delivers, symmetric lighting beams and flexible mounting ways make it access to a wide range of application.
|
Model
|
Efficiency(lm/w)
|
Lumen(lm)
|
CCT
|
CRI
|
PF
|
|
MQ-Y20/SD10B/12B
|
100lm/w
|
2000lm
|
|
|
|
|
MQ-Y30/SD10B/12B
|
|
3000lm
|
|
|
|
|
MQ-Y40/SD10B/12B
|
|
4000lm
|
|
80
|
|
|
MQ-Y40/SD10B/12B
|
|
4000lm
|
|
|
|
|
MQ-Y60/SD10B/12B
|
|
6000lm
|
|
|
|
|
MQ-Y60/SD10B/12B
|
|
6000lm
|
|
|
|
|
MQ-Y60/SD10B/12B
|
|
6000lm
|
|
|
|
|
Model
|
Power
|
Dimen.(L*W*H/mm)
|
Cut-out(L*W)
|
|
MQ-Y20/SD10B/12B
|
20W
|
L628*W278*H85mm
|
L605*W255mm
|
|
MQ-Y30/SD10B/12B
|
30W
|
L928*W278*H85mm
|
L905*W255mm
|
|
MQ-Y40/SD10B/12B
|
40W
|
L1228*W278*H85mm
|
L1205*W255mm
|
|
MQ-Y40/SD10B/12B
|
40W
|
L628*W628*H85mm
|
L605*W605mm
|
|
MQ-Y60/SD10B/12B
|
60W
|
L628*W628*H85mm
|
L605*W605mm
|
|
MQ-Y60/SD10B/12B
|
60W
|
L1228*W328*H85mm
|
L1205*W305mm
|
|
MQ-Y60/SD10B/12B
|
60W
|
L1228*W628*H85mm
|
L1205*W605mm
|
|
Model
|
MQ-Y40/SD10B
|
|
MQ-Y40/SD12B
|
|
|||
|
Name
|
cleanroom lighting
|
|
cleanroom lighting
|
|
|||
|
Size
|
L1228*W278*H85MM
|
|
L628*W628*H85MM
|
|
|||
|
Watt
|
40W
|
|
40W
|
|
|||
|
Lumen
|
4000lm
|
|
4000lm
|
|
|||
|
Efficiency
|
100lm/w
|
|
|
|
|||
|
IP level
|
IP65(front face)
|
|
|
|
|||
|
Body material
|
CRS white painted overlapping door frame+0.5mm white painted tray house
|
|
SS overlapping door frame+0.5mm white painted tray house
|
|
|||
|
Diffuser
|
opal white 2.0mm PMMA acrylic/ fire retarded polycarbonate
|
|
|
|
|||
|
Reflector
|
white painted CRS
|
|
|
|
|||
|
Light source
|
lumileds LED SMD2835 LM80
|
|
|
|
|||
|
CCT
|
4000-4500K/6000-6500K
|
|
|
|
|||
|
RA
|
>80
|
|
|
|
|||
|
SDCM
|
<6
|
|
|
|
|||
|
PF
|
>0.90
|
|
|
|
|||
|
Driver
|
LIFUD
|
|
|
|
|||
|
Flicker
|
free
|
|
|
|
|||
|
Dimming
|
none(1-10V/DALI dimming for option)
|
|
|
|
|||
|
Input
|
220-240VAC, 50/60HZ(100-277VAC)
|
|
|
|
|||
|
Gasket
|
EVA/EPDM
|
|
|
|
|||
|
Gland
|
plastic waterproof M20 gland
|
|
|
|
|||
|
Cable
|
AWM 1015 20AWG 105C 600VVW-1 cooper wire
|
|
|
|
|||
|
Terminal
|
flame resistant copper cored terminal
|
|
|
|
|||
|
Electrical class
|
I
|
|
|
|
|||
|
Certification
|
CE EMC LVD ROHS
|
|
|
|
|||
|
Working time
|
50,000hours
|
|
|
|
|||
|
Warranty
|
3 years
|
|
|
|
|||
PRODUCT DETAILS
BOTTOM OPENING IN SPRING CLIPS
BRAND PHILIPS LEDS IN ALUMINUM PLATE PCB
