1. Nice quality with competitive price
2. Quick delivery time
3.7 days refund in case of bad quality
4.Small order welcome
5.Alibaba trade assurance payment for safety
6.QC for each pc before delivery
7.Nice after sale service
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
2100*1310*2230mm
-
Weight:
-
1085 KG
-
firewood processor Model:
-
RM500JOY
-
splitting diameter:
-
50CM
-
cut length:
-
50CM
-
Splitting force:
-
30TON
-
splitting wedge:
-
6-way
-
splitting engine Power:
-
27HP
-
Hydraulic Feeding:
-
1800x390mm
-
Firewood Conveyor:
-
Standard Length: 3.5m, Belt width:300mm
-
Control Type:
-
Joystick
-
splitting Cycle Time:
-
6s
Quick Details
-
Use:
-
firewood splitting
-
Place of Origin:
-
China
-
Brand Name:
-
Rima
-
Dimension(L*W*H):
-
2100*1310*2230mm
-
Weight:
-
1085 KG
-
firewood processor Model:
-
RM500JOY
-
splitting diameter:
-
50CM
-
cut length:
-
50CM
-
Splitting force:
-
30TON
-
splitting wedge:
-
6-way
-
splitting engine Power:
-
27HP
-
Hydraulic Feeding:
-
1800x390mm
-
Firewood Conveyor:
-
Standard Length: 3.5m, Belt width:300mm
-
Control Type:
-
Joystick
-
splitting Cycle Time:
-
6s
Product Overview

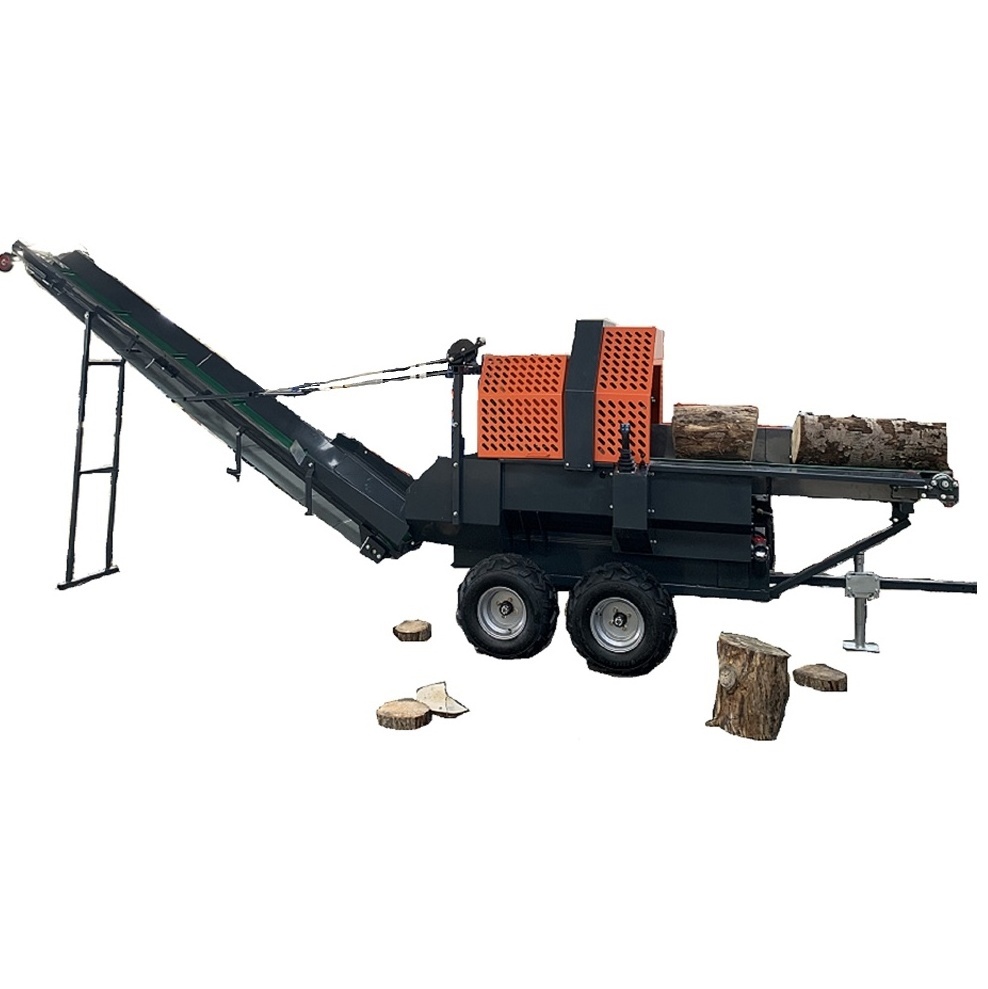

Rima 30ton Firewood Processor -RM500JOY / RM500ECO
It comes with Chainsaw automatic lubrication system for protecting the saw blade.
Rima firewood processor is a great choice for the home, shop, farmer or rancher who needs a compact, rugged, yet well priced machine.
PRODUCT SPECIFICATIONS
|
Model
|
RM500 JOY
|
|
Max . Splitting Force
|
30Ton
|
|
Max. Log Dia.
|
500mm
|
|
Max. Log Length
|
500mm
|
|
Max. Splitting Lift Height
|
230mm(hydraulic)
|
|
Engine Power
|
27HP LIFAN Engine, Electric start
Optional: GX630 HONDA, Electric start |
|
Hydraulic Feeding
|
1800x390mm (L* W)
|
|
Firewood Conveyor
|
Standard Length: 3.5m, Belt width:300mm
|
|
Control Type
|
Joystick
|
|
Cycle Time
|
6s
|
|
Cylinder Size
|
4.5 inch
|
|
Saw Working Length
|
24”
|
|
Saw Speed
|
10000rpm
|
|
Hydraulic Pump Flow
|
50L/min
|
|
Hydraulic Tank Capacity
|
40L
|
|
Knife
|
6 way
|
|
Traction
|
50mm ball
|
|
Wheel
|
22x11-10 ATV(4pcs)
|
|
Packing size
|
2100*1310*2230mm
|
|
Weight
|
1085kg
|
|
40” Container
|
10pcs
|
RM500ECO with 27hp gasoline engine / 15kw electric motor
|
Model
|
RM500 ECO
|
|
Max . Splitting Force
|
30Ton
|
|
Max. Log Dia.
|
500mm
|
|
Max. Log Length
|
500mm
|
|
Max. Splitting Lift Height
|
230mm(hydraulic)
|
|
Engine Power
|
27HP Gasoline engine(LIFAN) Electric starting
Optional: 15KW electric motor(380V ,50HZ,3P) |
|
Hydraulic Feeding
|
1800x390mm (L* W)
|
|
Firewood Conveyor
|
Standard Length: 3.5m, Belt width:300mm
|
|
Control Type
|
MANUAL
|
|
Cycle Time
|
6s
|
|
Cylinder Size
|
4.5 inch
|
|
Saw chain size
|
0.404”
|
|
Saw Working Length
|
24”
|
|
Saw Speed
|
10000rpm
|
|
Chainsaw automatic lubrication system
|
Yes
|
|
Hydraulic Pump Flow
|
50L/min
|
|
Hydraulic Tank Capacity
|
40L
|
|
Knife
|
6 way
|
|
Traction
|
50mm ball
|
|
Wheel
|
22x11-10 ATV(4pcs)
|
|
Weight
|
1000kg
|
|
40” Container
|
14pcs
|
Optional part - log table / live deck for RM500
Make your log loading easy and efficient
|
Model
|
RM4
|
|
Max. Loading capacity
|
3000kg
|
|
Drive
|
RM500 hydraulic system
|
|
Control
|
On RM500 Joy
|
|
Hydraulic feeding
|
2200x580mm
|
|
Log deck size
|
3000x1544mm
|
|
Traction
|
50mm ball
|
|
Hydraulic Rotator
|
2pcs
|
|
Wheel
|
22x11-10
|
|
Size (L*W*H)
|
4950x2200x1600mm
|
|
Weight
|
600kg
|
Details Images
Customer Photos
Certifications
We have TUV CE for firewood wood processor, portable sawmill, hydraulic rotator; CE for crane, cone log splitter, grapple, flail mower, wood chipper, tree shear etc.
Besides, we also get
patent certificate for screw cone log splitter with grapple, t
rash compactor.
