Quick Details
-
Place of Origin:
-
China
-
Power:
-
18.5
-
Dimension(L*W*H):
-
3200x1600x1700mm
-
Sheet Thickness (mm):
-
1.2mm
-
NAME:
-
Spiral Pipe Ovalizer oval duct forming machine for sale
-
DIA:
-
3100
-
electrics:
-
schneider
-
After-sales Service Provided:
-
Free spare parts
-
Voltage:
-
customized
Quick Details
-
Brand Name:
-
ebone
-
Condition:
-
new
-
Weight:
-
2000 kg
-
Place of Origin:
-
China
-
Power:
-
18.5
-
Dimension(L*W*H):
-
3200x1600x1700mm
-
Sheet Thickness (mm):
-
1.2mm
-
NAME:
-
Spiral Pipe Ovalizer oval duct forming machine for sale
-
DIA:
-
3100
-
electrics:
-
schneider
-
After-sales Service Provided:
-
Free spare parts
-
Voltage:
-
customized
Product Overview

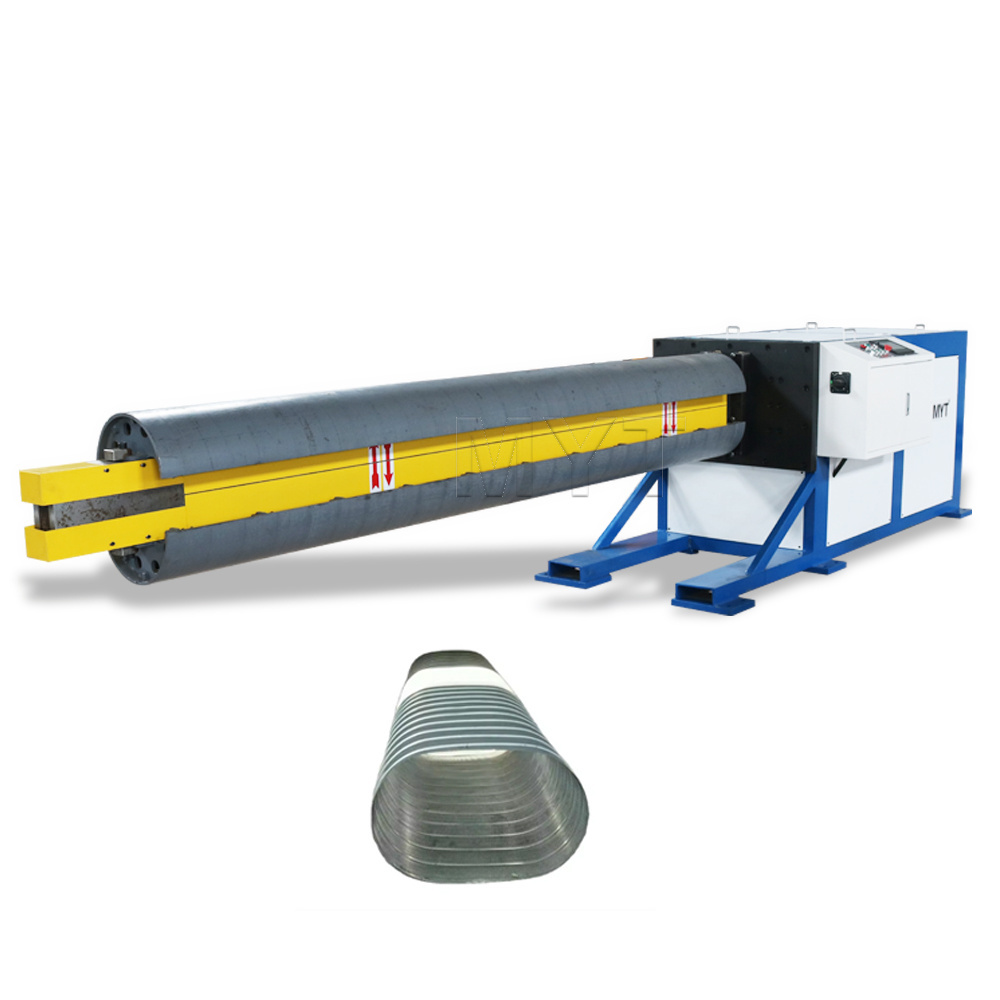

Spiral Pipe Ovalizer oval duct forming machine
The ovalizor transforms smooth and corrugated round spiral duct into Flat-oval duct. Machine controlled by PLC, and the LCD UNIT on the operator’s panel stores all set parameters for easy recall by the operator when required.
The ovalizor transforms smooth and corrugated round spiral duct into Flat-oval duct. Machine controlled by PLC, and the LCD UNIT on the operator’s panel stores all set parameters for easy recall by the operator when required.
PRODUCT CONFIGURATION
Front side of oval duct forming machine
Back side of oval duct machine
Famous electrics
Aluminum mold optional
Finished product
Fixed mould
PRODUCT SPECIFICATIONS
|
Thickness range
|
0.4-1.2mm
|
|
Maximum duct length
|
3100mm
|
|
Arm range
|
11omm
|
|
Pre-forming standard
|
150-500mm
|
|
Power
|
18.5KW
|
|
Net weight
|
3500KG
|
|
Gross weight
|
4500KG
|
|
Machine dimension
|
5000×1100×1200mm
|
|
Packaging size
|
5650×1240×1430mm
|
|
Working pressure
|
0.5-0.7Mpa
|
MYT Type Of Machine
MYT company
MYT machines shipping details
