Quick Details
-
Model Number:
-
HN-52
-
Specification:
-
1-12 inches optional
-
Length:
-
Regular 100 meters per roll
-
Thickness:
-
customize
-
Standard:
-
ISO
-
Name:
-
PE woven layflat hose
-
MOQ:
-
100m
-
Package:
-
Carton Package
-
Color:
-
Blue
-
Size:
-
1-12 inches
-
Roll length:
-
100M Or customized length
-
Advantage:
-
Resistant to severe cold, sunlight and puncture
-
Usage:
-
Irrigation
-
Free sample:
-
Contact customer service to obtain
-
Package Type::
-
plastic bag, cartons ,cardboard box
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
hesu
-
Model Number:
-
HN-52
-
Specification:
-
1-12 inches optional
-
Length:
-
Regular 100 meters per roll
-
Thickness:
-
customize
-
Standard:
-
ISO
-
Name:
-
PE woven layflat hose
-
MOQ:
-
100m
-
Package:
-
Carton Package
-
Color:
-
Blue
-
Size:
-
1-12 inches
-
Roll length:
-
100M Or customized length
-
Advantage:
-
Resistant to severe cold, sunlight and puncture
-
Usage:
-
Irrigation
-
Free sample:
-
Contact customer service to obtain
-
Package Type::
-
plastic bag, cartons ,cardboard box

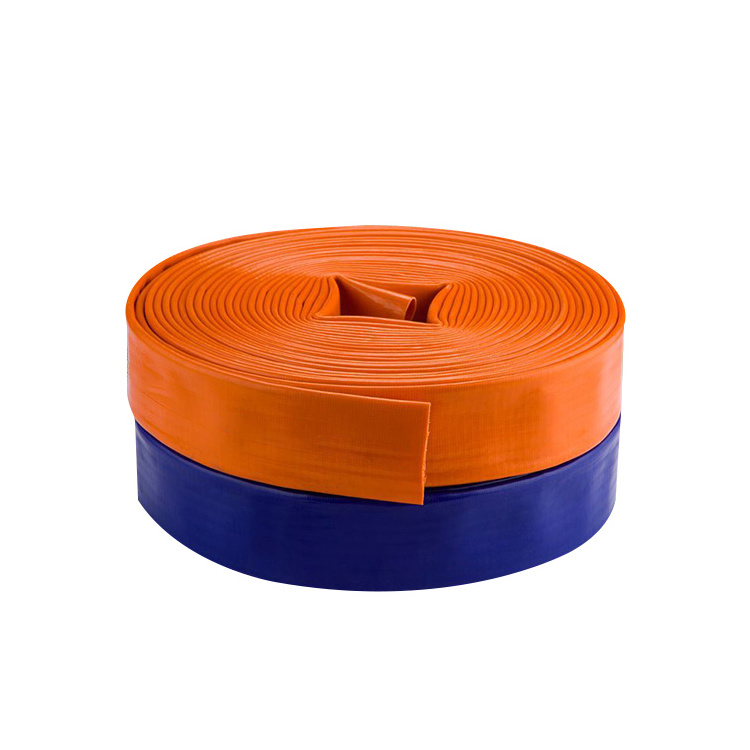

Farm drip irrigation system 80mm lay flat pipe 3 4 inch water pump hose 10 12 bar pvc tpu layflat hose 6"
HEAVY DUTY PVC HOSE:
PVC Lay Flat Backwash Hose comes in a variety of sizes, is designed for suctioning or for discharge, general purpose water discharge for swimming pools, agricultural, irrigation, or construction applications, such as pool discharge, sump pumps and trash pumps, etc.
Constructed from blue PVC and reinforced by polyester yarn that provides extreme strength to resist bursting and kinking.
Up to 90 PSI high working pressure, pool backwash hose can operate covering most street & pump pressures.
Widely usages, performance not affected by light chemicals, oils, and fuels.
Easily rolled up, folded flat, stored away, and easy transportation.
PVC Lay Flat Backwash Hose comes in a variety of sizes, is designed for suctioning or for discharge, general purpose water discharge for swimming pools, agricultural, irrigation, or construction applications, such as pool discharge, sump pumps and trash pumps, etc.
Constructed from blue PVC and reinforced by polyester yarn that provides extreme strength to resist bursting and kinking.
Up to 90 PSI high working pressure, pool backwash hose can operate covering most street & pump pressures.
Widely usages, performance not affected by light chemicals, oils, and fuels.
Easily rolled up, folded flat, stored away, and easy transportation.
Product Description
Specification
|
Inch Size
|
Metric I.D.(mm)
|
0.2MPa (kg/m)
|
0.3MPa (kg/m)
|
0.4MPa (kg/m)
|
0.6MPa (kg/m)
|
0.8MPa (kg/m)
|
1.0MPa (kg/m)
|
|
1''
|
25.4±1.3
|
0.125
|
0.13
|
0.14
|
0.155
|
0.17
|
0.185
|
|
1-1/4''
|
31.8±1.3
|
0.145
|
0.155
|
0.175
|
0.195
|
0.21
|
0.23
|
|
1-1/2''
|
38.1±1.5
|
0.185
|
0.2
|
0.24
|
0.27
|
0.3
|
0.32
|
|
2''
|
50.3±2.0
|
0.25
|
0.3
|
0.35
|
0.375
|
0.39
|
0.42
|
|
2-1/2''
|
63.5±2.3
|
0.32
|
0.38
|
0.45
|
0.48
|
0.52
|
0.55
|
|
3''
|
76.2±2.3
|
0.38
|
0.47
|
0.57
|
0.63
|
0.69
|
0.78
|
|
4''
|
101.6±2.5
|
0.52
|
0.58
|
0.72
|
0.8
|
0.9
|
1.1
|
|
5''
|
127±2.8
|
0.75
|
0.85
|
0.95
|
1.1
|
1.2
|
/
|
|
6''
|
152.4±3.0
|
0.9
|
1.05
|
1.2
|
1.4
|
1.8
|
/
|
|
8''
|
203.2±3.5
|
1.45
|
1.55
|
1.7
|
1.9
|
2.4
|
/
|
|
10''
|
254±4
|
2.3
|
2.5
|
/
|
/
|
/
|
/
|
|
12''
|
304.8±4.5
|
3.2
|
3.5
|
/
|
/
|
/
|
/
|
Packing & Delivery
Wooden packaging,Carton packaging,depends on customer
