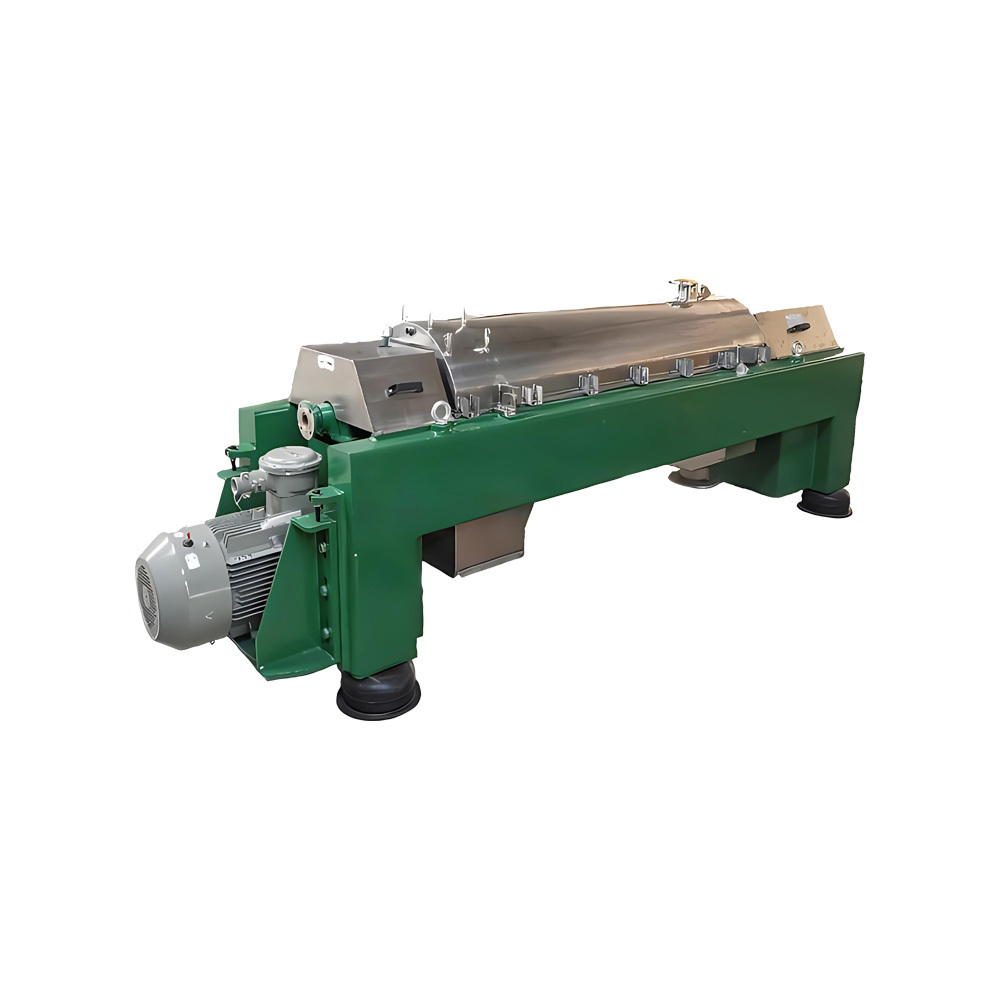

High speed industrial horizontal screw decanter centrifuge price

High speed industrial horizontal screw decanter centrifuge price

FOB Reference Price: Get Latest Price

≥1 Sets

US $20000

≥3 Sets

US $16800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 11-280KW

Weight:: 4000

Dimension(L*W*H):: 2740*700*900 mm

Product name:: LW sedimentation centrifuge

Description:: Solid-liquid Separation Machine

Discharge type:: Spiral Screw Discharge

Keyword:: Dewatering Centrifuge

Material:: SS304/SS316/DDS etc.

Operation:: Automatical Continuous

Feature:: High Efficiency

Control system:: PLC control

Motor:: Double Motor

Quick Details

Place of Origin:: Liaoning, China

Brand Name:: CONOVAL

Voltage:: 380V/50HZ,3Phase

Power:: 11-280KW

Weight:: 4000

Dimension(L*W*H):: 2740*700*900 mm

Product name:: LW sedimentation centrifuge

Description:: Solid-liquid Separation Machine

Discharge type:: Spiral Screw Discharge

Keyword:: Dewatering Centrifuge

Material:: SS304/SS316/DDS etc.

Operation:: Automatical Continuous

Feature:: High Efficiency

Control system:: PLC control

Motor:: Double Motor

Product Description

LW Sedimentation Centrifuge

Main Characteristics :

1.Continuous working, spiral

discharging, high capacity.

2.Controlled by two motors, rovolving

drum can be adjustable two-stage

separately.

3.Wide applicability for chemical,

oil,foodstuff, industriesand green

industry in which solid-liquid separation

is required.

4.Suitable for various products,

capable for separating wide-ranging

solid phase grains(0.002-2mm),

especially when separating solid

phase has different size grains.

Material Choice:

According to users’requirement,the product contact parts can be made of austenite stainless steel[321,316L......904L、2205], Haynes alloy titanic alloy or other anti-erosion materials

Properties and Uses:

LW Sedimentation Centrifuge is a horizontal,continuously working and continuously spiral discharging sedimentation centrifuge. It is used in a variety of industries for separating all kinds of solid-liquid suspension,defecating liquid phase with graded grains, and dehydrating sludge such as:polyoxyethylene,sulfurous acid, tansuanbei, strontium sulfate, lidefen, titanium pigment, ore, porcelain, clay, kaoline, diatomite, amylum, soyaabean protein,earthnut protein, syrup, beverage, vegetable oil, citric acid, scavenge oil purification,cleansing water purification, lees, tallow,blood powder,sludge from power plants, sludge from printing and dyeing,sludge from paper making,sludge from desulfurizing natural gas, calcium carbide sludge,activated sludge ammonia sludge,sludge from washing cars,alum sludge,drilling mud,coal flotation waste, cryolite flotation liquid.

Model and Main Parameters

Model	LW-250*1000	LW-450*1800	LW-650*2275	LW-1000*2500
Drum diameter(mm)	250	450	650	1000
Drum effective length(mm)	1000	1800	2275	2500
Max. Speed(r/min)	4000	3600	2500	1500
Max. separating factor	2238	3265	2273	1259
Processing capability(m3/h)	0.5-3	6-20	25-35	50-120
Main motor power(KW)	11	30-45	75-110	280
Overall dimension(mm)	2740700900	438511401508	512014501750	560018502150
Weight (Kg)	1200	3200	7800	25000

LWZ Horizontal Spiral Decanter Disc Combined Machine

Application scope It is widely used in solid-liquid separation、 dehydration、clarification and classification of suspension in chemical industry,light industry, environmental protection, food, oil mining and other industries.

Separation principle:

By using the principle that the light, heavy liquid and solid phases with different densities and indissolubility in the mixed liquid can obtain different settlement velocity in centrifugal force field or gravitational field, the separation and layering or the settlement of solid particles in the liquid can be achieved.

Characteristic:

1.Wide scope of application: For suspensions with solid mass contents ≤50%, liquid-solid volume concentration ≤75%, liquid-solid weight difference ≥0.05g/cm³, the equivalent diameter of solid particles ≥5 um can generally be separated, dehydrated, clarified and classified. When the difference between solid phase and liquid phase is large, the equivalent diameter of solid particles(≥2 u m) can also be separated.

2.High degree of automation: the machine is continuous feeding,continuous discharging. Under the action of centrifugal force, solid particles are continuously pushed to the small end of the drum by helix, and the clarified liquid is continuously discharged from the large end overflow port along the spiral groove, thus realizing continuous automatic operation.

3.The machine has compact structure, small floor area and convenient installation and maintenance.

4. Convenient adjustment: The machine is equipped with advanced frequency converter. As a result, when compared with similar products, the machine has the advantages of low energy consumption and stepless adjustable working speed.

The diameter of overflow plate and differential speed can be adjusted according to material properties.

Model and Main Parameters

Model	LWZ-250	LWZ-450	LWZ-650	LWZ-1000
Drum diameter(mm)	250	450	650	1000
Drum effective length(mm)	1000	1575	2275	2500
Max. Speed(r/min)	4000	3600	2500	1500
Max. separating factor	2238	3265	2273	1259
Processing capability(m3/h)	0.5-3	6-20	25-35	50-120
Main motor power(KW)	11	37	75-110	280
Overall dimension(mm)	2740700900	411011401480	512014501750	560018502150

Details Images

Application fields

1. Food

A flesh processing,aquatic products process and edible protein recovery;
B Extract plant protein from soybean,oily seeds and leguminous plants;
C Recovery of brewing leach liquor malt and yeast
D Treatment and recovery of wine lees liquid;
E Extract of instant coffee and tea;
F Clarification of palm oil,olive oil and seed oil;
G Extract juice from fruits ,berries and vegetables;
H Recovery of refined pectin;
I Clarification of grape juice and grape wine.

2. Environmental protection

Drilling mud ,industrial effluent ,waste water of municipal works,fertilizer,organic waste water,paint

sludge,plastic particles,gravel washing water,waste water in steel-making ,flue gas desulfurization,

sewage sludge treatment of waterworks.

3. Petroleum and chemical industry

A Processing of kaolin and calcium carbonate,production of bentonite and titanium dioxide;
B Exploration of petroleum oil,natural gas,crude oil refining and related industries,additive of lube oil and waste oil recovery;
C Intermediate products and final products of organic chemistry industry;
D Thermoplastic materials,includes PVC,polypropylene,polystyrene,synthetic rubber and fiber;
E Inorganic chemical industry ,includes bleach,acid,silica products and fertilizers;
F Treatment of spent wash and molasses fermentation residues;
G Extraction of starch from wheat,corn ,cassava and potato;
H Waste liquid recovery and recycling from above industries.
