As one of the earliest smart pdlc film manufactures, In the past few years
HOHOFILM®
has been committed to the R & D and sales of Architecture smart film. With the popularity of new energy vehicles,
HOHOFILM®
is committed to the promotion of Automotive sunroof smart film, Which greatly meets people's needs for privacy, heat insulation and UV rejection.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Car Sunroof
-
Design Style:
-
Modern
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HOHOFILM
-
Model Number:
-
HOHOFILM Smart Roof Film
-
Thickness:
-
0.49mm
-
Working voltage:
-
12V-30V
-
Power consumption:
-
≤5W/㎡
-
Size:
-
Customized
-
Color:
-
Transparent/ Opaque
-
Controller:
-
Wireless
-
Lifetime:
-
>10 years
-
Box:
-
HOHOFILM Brand Box
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support, Free spare parts
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Car Sunroof
-
Design Style:
-
Modern
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HOHOFILM
-
Model Number:
-
HOHOFILM Smart Roof Film
-
Thickness:
-
0.49mm
-
Working voltage:
-
12V-30V
-
Power consumption:
-
≤5W/㎡
-
Size:
-
Customized
-
Color:
-
Transparent/ Opaque
-
Controller:
-
Wireless
-
Lifetime:
-
>10 years
-
Box:
-
HOHOFILM Brand Box
HOHOFILM® Smart Roof Film
Smart film is a special kind of switchable film that can be applied to any existing glass, indoors or outdoors. The technology used in its creation allows the user to change the surface of this electric window tint from clear to frosted — with the help of pressing a button on the remote control or in the app on your smartphone.
Power On --- Transparent
When the power is on, two PET-ITO conductive film functions as planar electrodes, which makes the liquid crystal droplets orderly arranged perpendicular to the film surface, whereby the parallel light passes through the liquid crystal layer without being reflected and refracted, the light transmits to whole film, so smart film appears transparent.
Power Off --- Opaque
When the power is off, the liquid crystal droplets are in disordered arrangement state, when parallel light passes through the polymer and irradiate to the liquid crystal material, because of refractive index of the liquid crystal droplets is lower than the other outer polymers, light in the surface of liquid crystal droplets is diffused and scattered. the whole film becomes opaque, appears frosted.
|
Item No.
|
Visible Light Transmission
|
Mode
|
Unit
|
Tolerance
|
Specification
|
|
|
Optical
|
Visible Light Transmission
|
On
|
%
|
±1
|
89
|
|
|
|
|
Off
|
%
|
/
|
>55
|
|
|
|
Haze Coefficient
|
On
|
%
|
±0.5
|
4.3
|
|
|
|
|
Off
|
%
|
/
|
＞96
|
|
|
|
Viewing Angle
|
On
|
°
|
/
|
＞140
|
|
|
Electrical
|
Operate Voltage
|
On
|
AC/V
|
/
|
48～65(50/60HZ)
|
|
|
|
Response time
|
On→Off
|
ms
|
/
|
≤200
|
|
|
|
|
Off→On
|
ms
|
/
|
≤10
|
|
|
|
Power Consumption
|
On
|
W/m2
|
/
|
＜5
|
|
|
Shrinkage
|
TD
|
/
|
%
|
/
|
≤0.2
|
|
|
|
MD
|
/
|
%
|
/
|
≤0.9
|
|
|
Operate Mode
|
|
On
|
/
|
/
|
Transparent
|
|
|
|
|
Off
|
/
|
/
|
Opaque
|
|
|
Work Layer Thickness
|
|
/
|
μm
|
±5
|
560
|
|
|
Scratch resistance
|
|
/
|
H
|
/
|
3.0
|
|
|
UV Rejection
|
|
On/Off
|
%
|
/
|
≥99
|
|
|
Lifespan
|
|
On
|
h
|
/
|
＞80000
|
|
|
Storage Humidity
|
|
/
|
%
|
/
|
20~60
|
|
|
Working Temperature
|
|
/
|
%
|
/
|
-20～65℃
|
|
|
Storage Temperature
|
|
On
|
h
|
/
|
-20～60℃
|
|
|
Silicone layer Peel Strength
|
|
/
|
g
|
±2
|
10
|
|

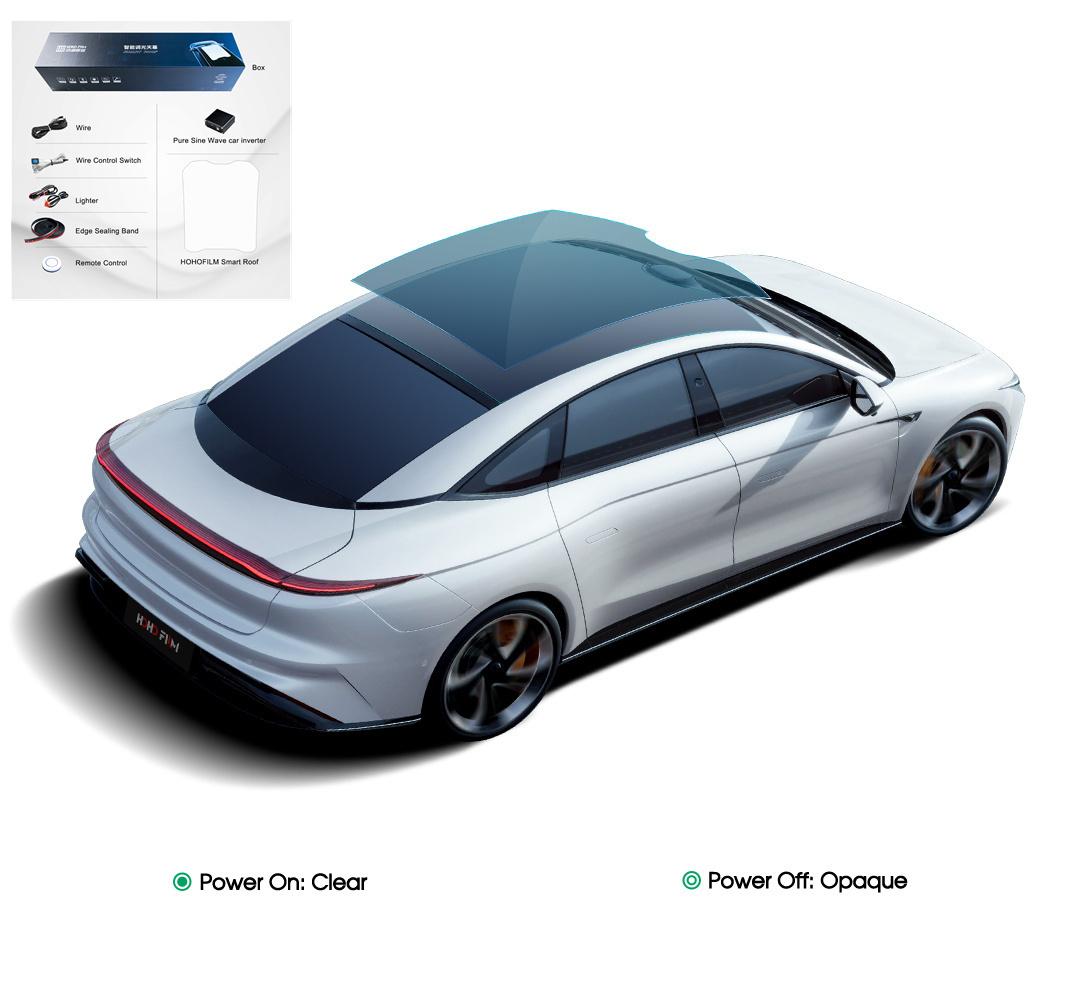

One - Click Switching
Powe on---Transparent, Power off---Qpaque White.
The Visible LIght Transmission of HOHOFILM®
Smart Roof Film
is 89%, it less haze, ultra clear. So when power on, it will hide,
keep your vehicle relatively cooler so that you will embrace a brand-new driving experience.
Let you enjoy the unique experience by the oversized sunroof.
Super Heat & UV Protection
Hot, sunny days can quickly overheat the interior of your car. HOHOFILM®
Smart Roof Film
reduce 99% heat due to the absorptive nano-ceramic technology. And at the same time, it also blocks up to 99% of harmful UV rays, keeping you cool and protected for a more comfortable ride.
Professional Instrument, Precise Cutting
HOHOFILM® Smart Roof Film is computer precut with the finest equipment on the market and it will precisely fit your exact make, model, and year vehicle. Installed Car Model included: Tesla MODEL Y/MODEL 3, Porsche Taycan GTS, Cadillac SRX, Mercedes-benz Vito, Buick GL8, Lexsler, NiO EC6, Trumpchi M8, Audi A6 etc.
Increase Safety
HOHOFILM® Smart Roof Film will help to protect you by holding your window together if the glass is shattered in an accident. So you, your family and the contents of your car are safe in the event of an accident from the risk of flying glass.
High Weather Resistance
From our tested, the working temperature of HOHOFILM® Smart Roof Film is -20℃ ~ 95℃. In this temperature interval, the stability of the PDLC liquid crystal molecule remains good, and there is no translucent and other failures. It's weather resistance is more than 30% higher than normal smart film, and the waterproof performance reaches level 3, which can effectively resist water vapor invasion.
Quality guaranteed
HOHOFILM® Smart Roof Film is a product developed under the rigorous standard of IATF16949. Not only proof of the product quality, but also the IATF16949 certification is an affirmation of the service qualifications and upstream and downstream supply chain management capabilities.
Package Details
If you're interested in
HOHOFILM® Smart Roof Film, you can give us the type of your car and then we will customize for you. In the package, it includes 1 piece
HOHOFILM® Smart Roof Film, power supply , remote control and other
accessories. When you receive the package, you can install it on your car directly. With the package, we also will send you installation instruction, so you don't worry about how to install it on your car .
As you see, these are our installation team. If you have any problems about installation, or you want to build your own professional installation team in your country, welcome to our factory and learn with our installation team. We also can send our installation team to your country when you need. If you have any problems about installation, please feel free to contact us and we will try our best to helping you .
As a leading Chinese manufacturer of coating film materials, Shanghai HOHO Industry Co.,Ltd was established in 2014, with total registered capital of 50 million RMB and covering more than 50,000 square meters plant area.
HOHOFILM® Brand includes residential and architecture film, smart film, paint protection film, window film and car wrap film. Focuses on films, focuses on quality and service, HOHOFILM® has always adhered to the concept of cooperation, win-win, openness, and the principle of permanent and sustainable development to explore the global market with distributor and partners. Till 2022, HOHOFILM® already sold to more than 120 countries and areas in the world!
HOHOFILM®,WORLD FILM.
Q1. What is your terms of packing?
A: We will pack the
HOHOFILM® Smart Roof Film
in our brand box.
Q2. What is your terms of payment?
A:100% T-T In advance after confirming the order.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 1 to 2 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. What is your sample policy?
A: We can supply free sample book for customers.
Q6. How is the quality of our products?
Our products are exported to more than 100 countries and have won unanimous praise from customers.
We keep good quality and competitive price to ensure our customers benefit.
