A. concrete pavement,bridge floor,factory terrace
B. Hydraulic and Hydro-Power Engineering:spillway, deflector hole
C. Airport runway, road of parking apron
D. Tunnel,mine,metro
E. Port,storage yard,riverway, Military protection engineering
F. Flyover,pier
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Hospital
-
Design Style:
-
Industrial
-
Weight:
-
1 ton
-
Chemical Composition:
-
n/a
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TONGBAN
-
Model Number:
-
STY-GHE-0928
-
raw material:
-
high quality steel wire
-
diameter:
-
0.55-0.9mm
-
length:
-
35-60mm
-
tensile strength:
-
1100MPA
-
standard:
-
YB/T 151-1999
-
surface:
-
black
-
certificate:
-
ISO9001:2015
-
application:
-
concrete reinforcement
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Hospital
-
Design Style:
-
Industrial
-
Weight:
-
1 ton
-
Chemical Composition:
-
n/a
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TONGBAN
-
Model Number:
-
STY-GHE-0928
-
raw material:
-
high quality steel wire
-
diameter:
-
0.55-0.9mm
-
length:
-
35-60mm
-
tensile strength:
-
1100MPA
-
standard:
-
YB/T 151-1999
-
surface:
-
black
-
certificate:
-
ISO9001:2015
-
application:
-
concrete reinforcement
Product Description

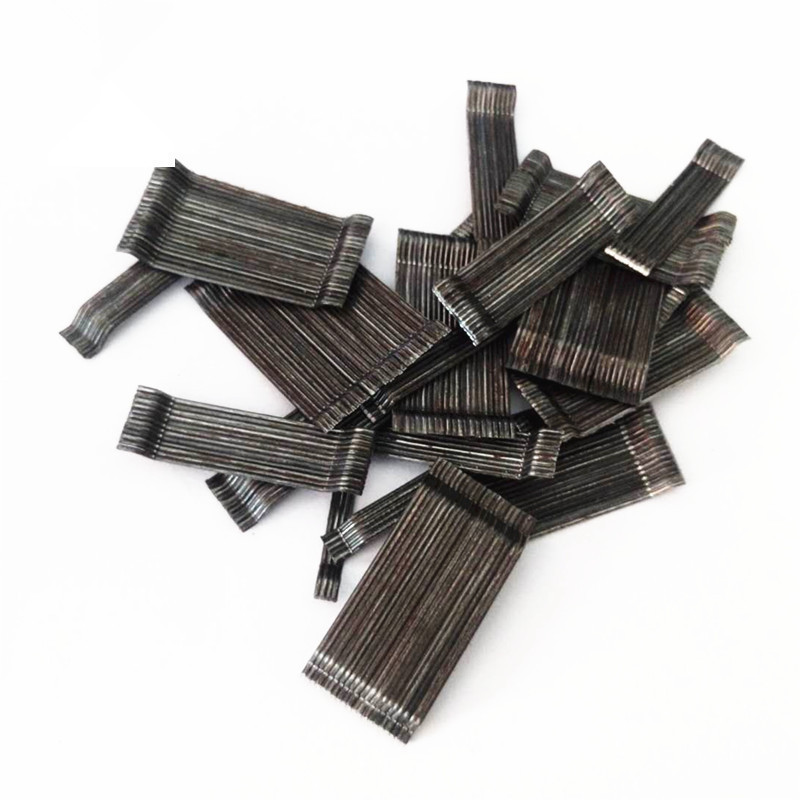

Glued Steel Fibre Concrete Reinforcement Materials
made of high tensile steel wire;
feature:with the water-soluble glue,the fibers disperse again during the stirring,and are distributed more equally. Also it reduces the feeding process and stirring time.
amount of admixture :15-20kg/M3
tensile strength ≥1100MPA
Specification
|
specification
|
length(mm)
|
diameter(mm)
|
aspect ratio
|
tensile strength
(mm)
|
pieces/kg
|
|
STY65/35
|
35
|
0.55
|
65
|
1100
|
14500
|
|
STY50/30
|
30
|
0.6
|
50
|
1100
|
13500
|
|
STY 80/50
|
50
|
0.6
|
80
|
1100
|
8100
|
|
STY100/60
|
60
|
0.6
|
100
|
1100
|
6800
|
|
STY80/60
|
60
|
0.75
|
80
|
1000
|
4600
|
Advantage
|
Tensile strength
|
|
↑40-80%
|
|
||
|
Bending resistance
|
|
↑60-120%
|
|
||
|
Shearing strength
|
|
↑50-100%
|
|
||
|
Compression strength
|
|
↑0-25%
|
|
||
Application
Packing
1000 kgs/big bag
25kgs/paper bag
1.25MT/pallet
25 MT/20'container
25 kgs/carton(27.5x27.5x13cm)
1.25MT/pallet
25MT/20'container
