AElectric weather protection linear actuators for opening and closing louver roof system

- Max load: 2500N (push/pull)
- Max speed at max load:2.3mm/s
- IP rating:IP67M/IP69K
- Voltage:12vdc or 24vdc
- Stroke:20-400mm(can be customized)
- Certificate: CE, RoHs,UL325
- Warranty:5 years
- Options: hall sensor, over current protection
aluminum body or 316 stainless steel body

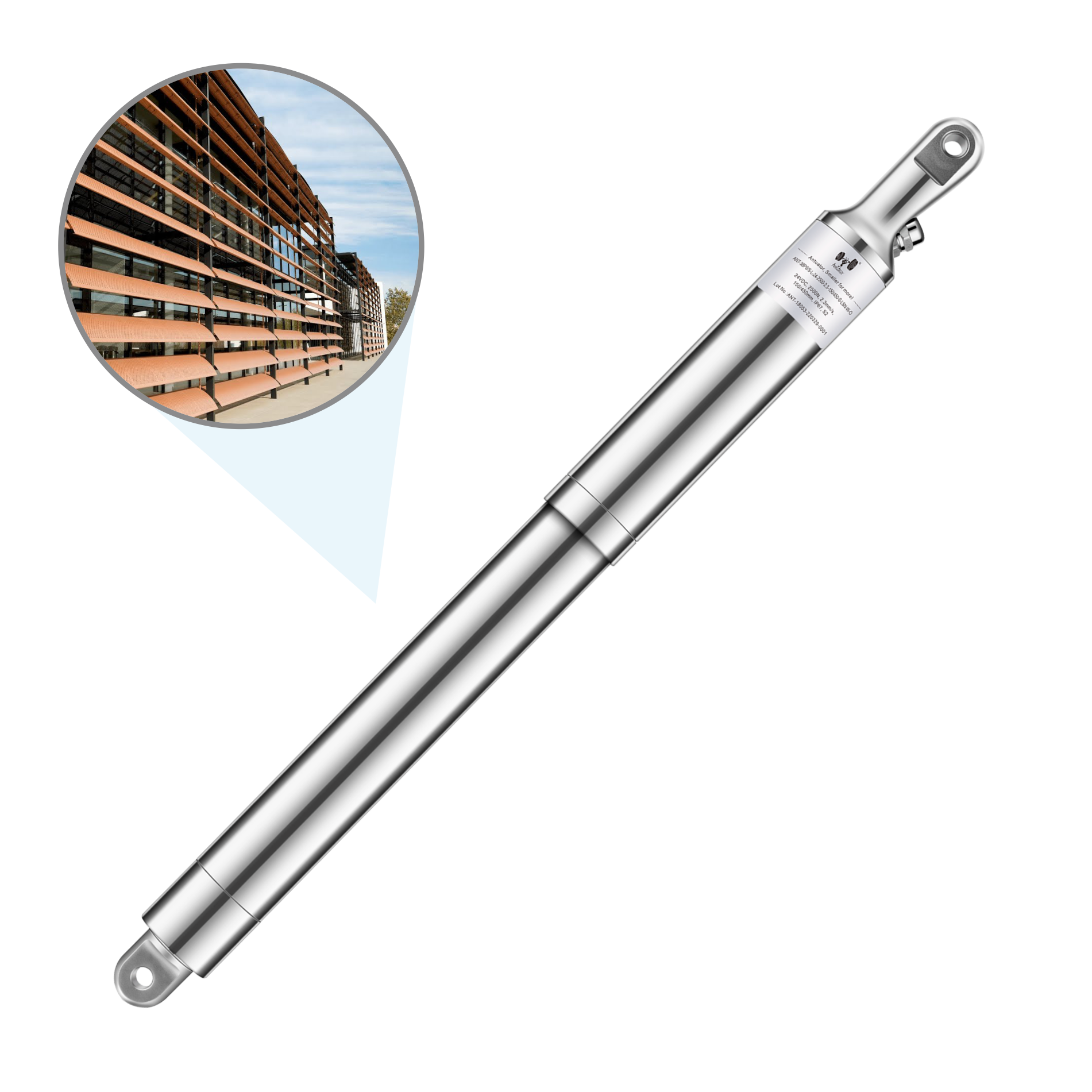

ANTUATOR ANT-38P Linear Actuator

-- ANT-38P is created specially for the bioclimatic pergola.where the water proof, elegant design, trouble free,compact size are crucial.

-- With max load capacity 2500N, customized stroke lengthand forces, the ANT-38P can be used for different typesand sizes of the bioclimatic pergolas.

-- ANT-38P can withstand very harsh environments becauseof its IP67M,IP69K protection design and special materialsused to fit the pergola market!

-- Maintenance-free, Easy lnstallation, Trouble free are alsothe main features.

-- ANT-38P can work smoothly , quietly and precisely toguarantee its excellent performance on world famousbrands pergola.

-- 5 years warranty is offered.

SPECIFICATIONS AND OPTIONS

• Voltage(V):12V / 24V

• No load current(A): ≤1.2A / ≤0.6A

• Load current(A): ≤3.8A / ≤1.8A

• Max Power(W): 50W

• Stroke(mm): 20mm-4 00mm(stroke can be customized)

• Limit switches:Built-in

•  Installation length(min):300+S("S" for stroke)

• Noise level on load (dB): ≤56 dB

• IP rating: IP67M/IP69K

•  Backlash:0.5-1mm

• Duty cycle : 10%, 2 minutes continuous use followed by 18 minutes in rest.

• Life time(cycles): ≥10k

• Operating temperature(°C):-20°C~60°C

• Storage temperature(℃):-40°C~70°C

• Material of lead screw:#45 steel

•  Material of push rod:SUS316

•  Material of push nut:Engineering plastic

•  Standard color:Metal color

• Standard cable length:1.5m(cable length can be customized)

• Certification: CE

• Options:Over current protection,Hall sensor feedback,Aluminum version, Stainless steel version

FORCES AND SPEEDS

DIMENSION
