Quick Details
-
Model Number:
-
BV13
-
Brand Name:
-
Sunthai Extractor
-
Name:
-
Double Ferrule Straight Type Ball Valve
-
Body material:
-
SS316
-
Maximum Working Pressure:
-
1000psi-6000psi
-
Seal:
-
PTFE
-
Working Temperature:
-
-54℃ to 148℃
-
Size:
-
1/4", 3/8", 1/2"
-
Connection end:
-
compression tube fitting
-
Type:
-
2-way, 3-way, BALL VALVES
-
Operation:
-
Manual Control
-
Handle:
-
Plastic Handwheel
Quick Details
-
Port Size:
-
1/4"~1/2"
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
BV13
-
Brand Name:
-
Sunthai Extractor
-
Name:
-
Double Ferrule Straight Type Ball Valve
-
Body material:
-
SS316
-
Maximum Working Pressure:
-
1000psi-6000psi
-
Seal:
-
PTFE
-
Working Temperature:
-
-54℃ to 148℃
-
Size:
-
1/4", 3/8", 1/2"
-
Connection end:
-
compression tube fitting
-
Type:
-
2-way, 3-way, BALL VALVES
-
Operation:
-
Manual Control
-
Handle:
-
Plastic Handwheel
Products Description
|
Product Name
|
|

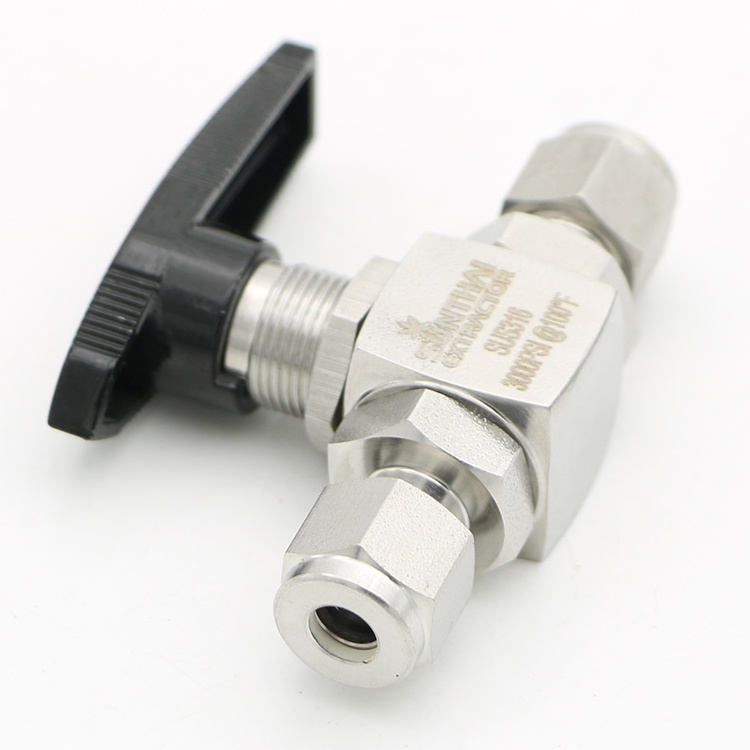

SS316 High Pressure Two-way Instrumentation Double Ferrule Straight Type Ball Valve
|
|
|
|||
|
Body Material
|
|
stainless steel 304/316
|
|
|
|||
|
Seal Material
|
|
PTFE
|
|
|
|||
|
Working Pressure
|
|
1000PSI
|
|
|
|||
|
Working Temperature
|
|
-65.2 to 302 F(-54℃ to 148℃)
|
|
|
|||
|
Power
|
|
Manual
|
|
|
|||
|
Size
|
|
1/4“，1/2”，3/8“
|
|
|
|||
|
Flow pattern
|
|
2-way, 3-way
|
|
|
|||
|
Application
|
|
Petroleum, Chemical, Power,etc
|
|
|
|||
Sanitary Double Ferrule Stainless Steel PTFE Seated Ball Valve
The ball valve is made of stainless steel 316, which mainly used for control and instrument tube functions. And it has excellent oxidation resistance.
Advantages: No dead space, easily cleaned and purged.
The ball valve is made of stainless steel 316, which mainly used for control and instrument tube functions. And it has excellent oxidation resistance.
Advantages: No dead space, easily cleaned and purged.
