Quick Details
-
Weight (KG):
-
1000 KG
-
Keyword:
-
3d strong hold welding table
-
Product name:
-
cast iron working tables with t-slots
-
Gridlines:
-
100x100±0.05mm
-
Support:
-
by support leg&Spacer frame&rail type
-
Application:
-
Industrial
-
Surface:
-
Precision Machined Working Surfaces
-
Working Table Hole Diameter:
-
D28/D22/D16 Holes
-
Material:
-
Cast Iron/DIN St52-3/Steel
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Dimensions:
-
3000x1500x200mm
-
Usage:
-
Welding
-
Weight (KG):
-
1000 KG
-
Keyword:
-
3d strong hold welding table
-
Product name:
-
cast iron working tables with t-slots
-
Gridlines:
-
100x100±0.05mm
-
Support:
-
by support leg&Spacer frame&rail type
-
Application:
-
Industrial
-
Surface:
-
Precision Machined Working Surfaces
-
Working Table Hole Diameter:
-
D28/D22/D16 Holes
-
Material:
-
Cast Iron/DIN St52-3/Steel
Products Description
|
Product Name ：
|

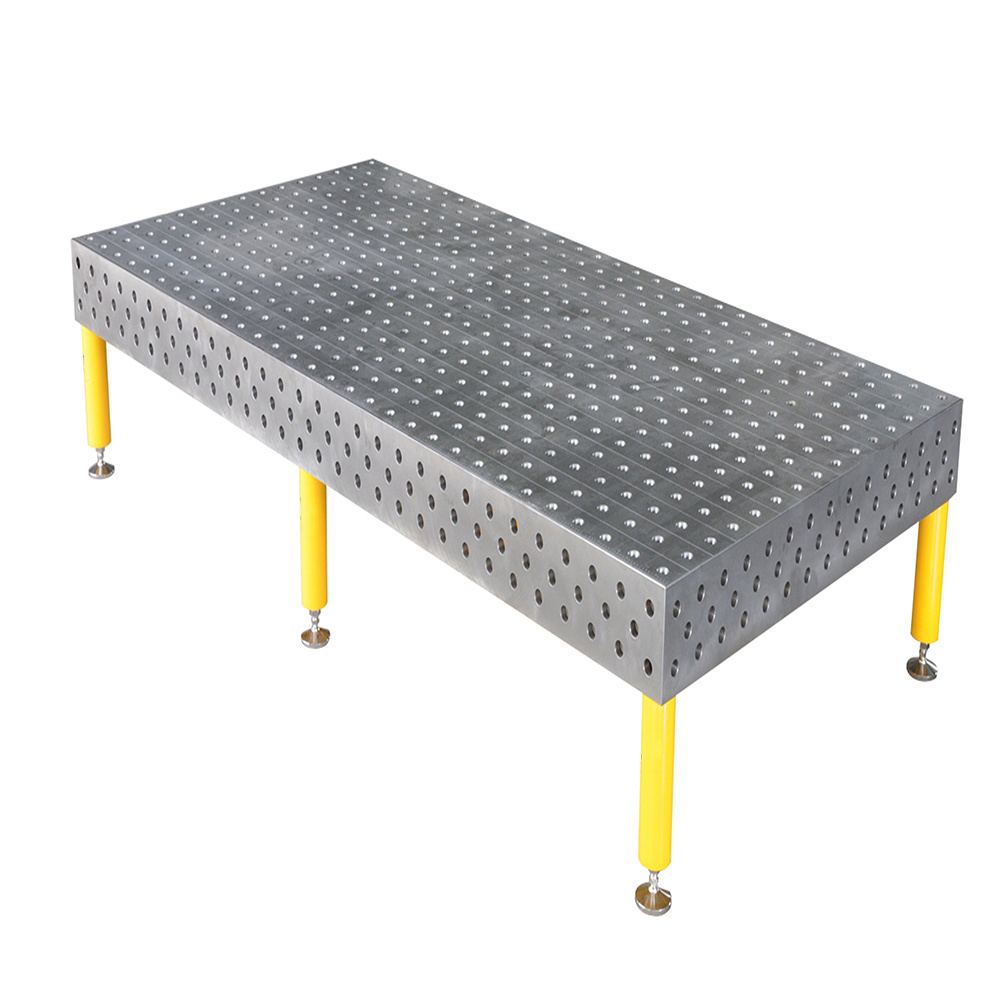

High Precision Measuring Tool Cast Iron 3d Welding Table
|
|
Table surface mesh line specifications:
|
100x100±0.05mm (D28 series), 50x50±0.05mm (D16 series);table two adjacent edge X, Y
direction of each millimeter scale line |
|
The pore size and precision:
|
φ28.15±0.03mm (D28 series)/φ16.08±0.02mm (D16 series)
|
|
Hole spacing:
|
100±0.03mm (D28 series) /50±0.02mm (D16 series)
|
|
Plane degree:
|
0.5mm/m2
|
|
Verticality:
|
0.3mm/200mm
|
|
Parallel degree:
|
0.2mm/1000mm
|
|
Parallelism and perpendicularity (adjacent two sides):
|
0.3/1000mm
|
|
Surface finish of platform:
|
3.2μm
|
|
Platform bearing: Supporting leg type:
|
2T/m2,Frame type support: 3T/ m2
|
