Quick Details
-
Dimensions:
-
205(W)*310(H)*446(D)
-
Use:
-
welding battery
-
Voltage:
-
110/220V
-
Power (kW):
-
800W
-
Weight (KG):
-
24 KG
-
Product Name:
-
Styler
-
Battery Type:
-
18650/21700/26650/32650/32700
-
Welding method:
-
High Frequency Ultrasonic Welding
-
Application:
-
Battery Connection
-
Welding time:
-
0.00~9.99ms
-
Welding Current:
-
single phase 100~120VAC/200~240VAC 50/60Hz
-
MOQ:
-
1set
-
Feature:
-
High Efficiency
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
ZHE
-
Brand Name:
-
STYLER
-
Max. Welding Thickness:
-
0.6MM
-
Dimensions:
-
205(W)*310(H)*446(D)
-
Use:
-
welding battery
-
Voltage:
-
110/220V
-
Power (kW):
-
800W
-
Weight (KG):
-
24 KG
-
Product Name:
-
Styler
-
Battery Type:
-
18650/21700/26650/32650/32700
-
Welding method:
-
High Frequency Ultrasonic Welding
-
Application:
-
Battery Connection
-
Welding time:
-
0.00~9.99ms
-
Welding Current:
-
single phase 100~120VAC/200~240VAC 50/60Hz
-
MOQ:
-
1set
-
Feature:
-
High Efficiency
-
After Warranty Service:
-
Video technical support
Related product recommendation
Products Description

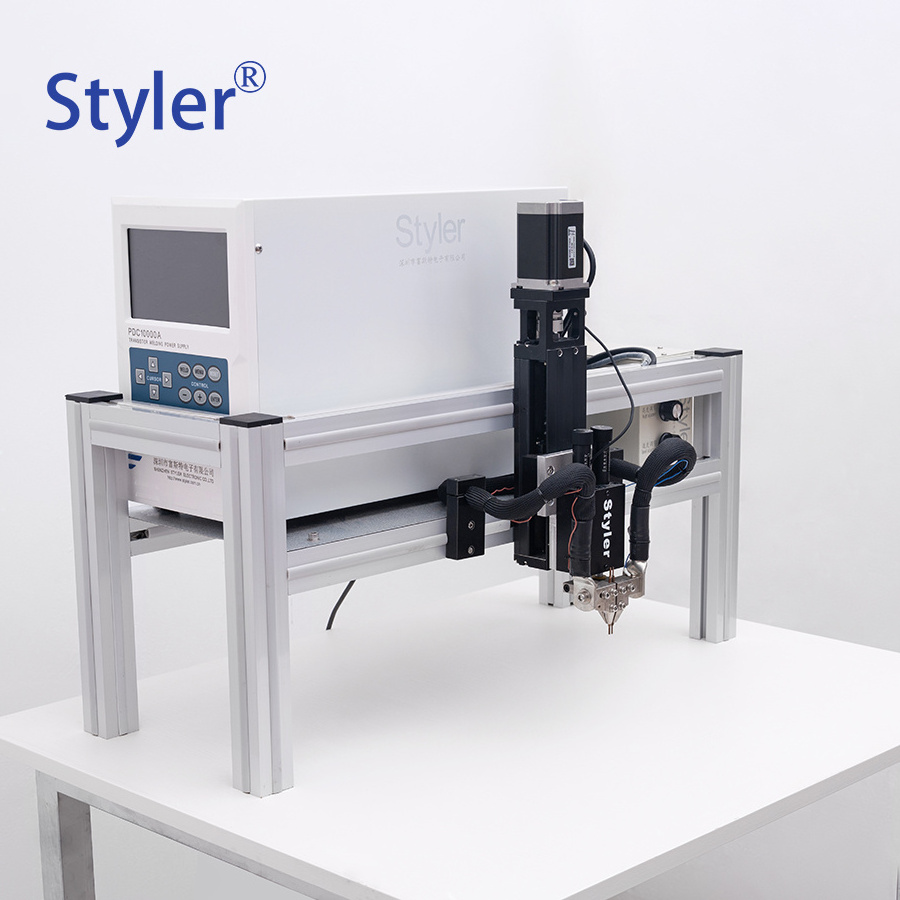

Transistor type precision energy storage spot welder
Transistor spot welding machine welding current rises very fast, can complete the welding process in a short time, the welding heat affected zone is small, and the welding process has no spatter. It is most suitable for ultra-precision welding, such as thin wires, such as button battery connectors, Small contacts and metal foils of relays
Details Images
Product Paramenters
|
Model
|
PRECISE TRANSISTOR WELDING POWER SUPPLY
|
|
MODEL
|
PDC4000A(25000rmb=3850USD)
|
|
MAX CURR
|
2000A
|
|
MAX POWER
|
300W
|
|
MAX VOLT
|
30V
|
|
INPUT
|
single phase 100～120VAC or single phase200～240VAC 50/60Hz
|
|
CONTROLS
|
1、const. curr. 2、const. volt. 3、const. curr. and volt. combination.
|
|
pressure contact time
|
0000~2999ms
|
|
resistance pre-detection welding time
|
0.00～1.00ms
|
|
pre-detection time
|
2ms（fixed）
|
|
rising time
|
0.00～9.99ms
|
|
interval time
|
welding1、welding2 time 0.00～9.99ms
|
|
slow down time
|
0.00～9.99ms
|
|
cooling time
|
0.00～9.99ms
|
|
holding time
|
0.00～9.99ms
|
|
CURR STG RG
|
0.00～2.00KA
|
|
VOLT STG RG
|
0.00～9.99V
|
|
VOLT RG
|
0.00～9.99V
|
|
EX. SIZE
|
205(W)X310(H)X368(D)
|
|
G.W.
|
16KG
|
Why Choose Us
Styler have a professional engineering and technical service team, provide lithium battery PACK automatic production line, lithium battery assembly technical guidance, and technical training.
We can provide you with a full line of equipment for battery pack production
We can provide you with a full line of equipment for battery pack production
We can provide you with the most competitive price directly from the factory
We can provide you with the most professional after-sales service 7*24 hours
