Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ARKREF
-
Product name:
-

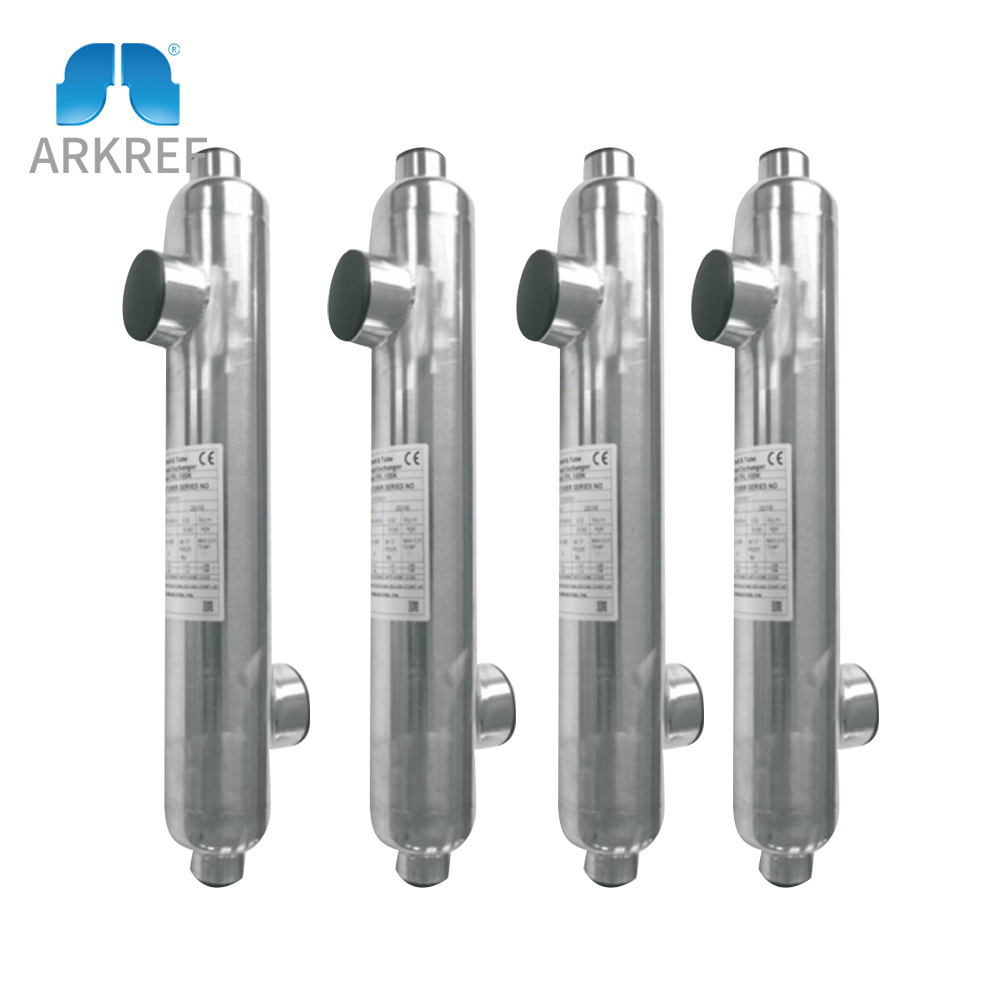

Pool Heat Exchanger
-
Brand:
-
ARKREF
-
Features:
-
High efficiency
-
Heat exchanging capacity:
-
coefficient up to 10000W/m2°C
-
Typical Residential Application:
-
Domestic Hot Water Heating/Solar Hot Water Heating etc.
-
Typical industrial application:
-
Oil cooler or heating/Oil cooler or heating/District etc.
Quick Details
-
Type:
-
Heat Exchanger
-
Application:
-
For heat pump
-
Weight (KG):
-
10
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ARKREF
-
Product name:
-
Pool Heat Exchanger
-
Brand:
-
ARKREF
-
Features:
-
High efficiency
-
Heat exchanging capacity:
-
coefficient up to 10000W/m2°C
-
Typical Residential Application:
-
Domestic Hot Water Heating/Solar Hot Water Heating etc.
-
Typical industrial application:
-
Oil cooler or heating/Oil cooler or heating/District etc.
PRODUCT DESCRIPTION
|
Model
|
A（mm）
|
B（mm）
|
C
|
D
|
|
SZ-55K
|
63.5
|
360
|
3/4"
|
1"
|
|
SZ-85K
|
63.5
|
520
|
3/4"
|
1"
|
|
SZ-155K
|
76
|
450
|
1"
|
1-1/2"
|
|
SZ-210K
|
76
|
570
|
1-1/2"
|
1-1/2"
|
|
SZ-300K
|
76
|
780
|
1-1/2"
|
2"
|
|
SZ-360K
|
89
|
830
|
1-1/2"
|
2"
|
|
SZ-600K
|
114
|
900
|
2"
|
2-1/2"
|
|
SZ-1200K
|
133
|
900
|
2"
|
2-1/2"
|
|
SZ-2400K
|
168
|
950
|
2"
|
4"
|
|
SZ-3000K
|
168
|
1100
|
2-1/2"
|
4"
|
|
SZ-3600K
|
168
|
1300
|
2-1/2"
|
4"
|
|
SZ-4500K
|
219
|
1070
|
2-1/2"
|
4"
|
|
SZ-5000K
|
219
|
1120
|
2-1/2"
|
4"
|
|
SZ-6000K
|
219
|
1220
|
2-1/2"
|
4"
|
PRODUCT SIZE
|
Model
|
Normal capacity
|
|
Pool capacity
|
|
Heat transfer area
|
||
|
|
KW
|
Kbtu/hr
|
Gallons@1℉/hr
|
Liters@1℃/hr
|
m²
|
||
|
SZ-55K
|
16
|
55
|
4700
|
32021
|
0.15
|
||
|
SZ-85K
|
25
|
85
|
7300
|
49735
|
0.25
|
||
|
SZ-155K
|
45
|
155
|
13300
|
90613
|
0.33
|
||
|
SZ-210K
|
61
|
210
|
18000
|
122634
|
0.44
|
||
|
SZ-300K
|
88
|
300
|
25800
|
175776
|
0.64
|
||
|
SZ-360K
|
105
|
360
|
31500
|
214610
|
0.85
|
||
|
SZ-600K
|
175
|
600
|
52500
|
357684
|
1.55
|
||
|
SZ-1200K
|
352
|
1200
|
105600
|
719455
|
2.01
|
||
|
SZ-2400K
|
704
|
2400
|
211200
|
1438910
|
4.47
|
||
|
SZ-3000K
|
880
|
3000
|
264000
|
1798638
|
5.30
|
||
|
SZ-3600K
|
1056
|
3600
|
316800
|
2158365
|
6.42
|
||
|
SZ-4500K
|
1320
|
4500
|
396000
|
2697956
|
8.46
|
||
|
SZ-5000K
|
1467
|
5000
|
439000
|
3000000
|
8.87
|
||
|
SZ-6000K
|
1760
|
6000
|
526800
|
3600000
|
10.64
|
||
SCHEMATIC DIAGRAM
1.Heat exchanger 2.Heat pump 3.Primary hot water circuit 4.Thermostat
5.Gate valve 6.Check valve 7.Circulator 8. Secondary circuit (pool water)
9. Filter 10. Pump 11. From pool 12. Return pool
13. Waste
