Name: Turbo
Brand: Rynaide
Original: China
Domestic famous factory, strong driving force, high economic benefits.
Experience high quality efficiencly productivity , best choice to make.
Our product is wildly used in construction, agriculture ,garden.The bucket with high wear-resistant material for use in stone.Strong power and chassis help to muddy road condition,flexible turning is suitable for small space ,excellent unloading height helpful for loading,a variety of accessories for make full use of the machine and improve the economic benefit.

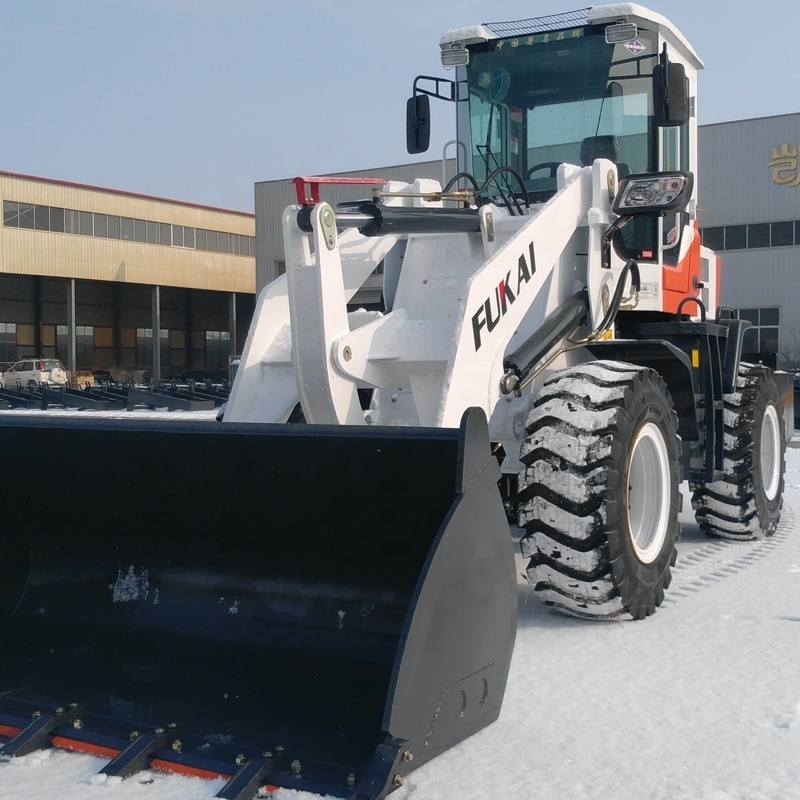

SPECIFICATIONS FOR ZL940 WHEEL LOADER
|
|
|
|
|||
Basic parameter
|
Model
|
zl-940
|
|
|||
|
Rated Load
|
2000kg
|
|
|||
|
Overall Dimension (mm)
|
6500*2200*3000
|
|
|||
|
Operating Weight
|
5000kg
|
|
|||
|
Bucket capacity
|
1.4-1.6m³
|
|
|||
|
Max.Dumping Height
|
3400mm
|
|
|||
|
Max.Dumping Distance
|
1050mm
|
|
|||
|
Bucket width
|
2.0m
|
|
|||
|
Max. Speed
|
30km/h
|
|
|||
|
Air conditioner
|
Optional
|
|
|||
|
Pallet fork
|
Optional
|
|
|||
|
Snow bucket
|
Optional
|
|
|||
|
High dump bucket
|
Optional
|
|
|||
|
Sweeper
|
Optional
|
|
|||
|
4in1 bucket
|
Optional
|
|
|||
|
Reverse camera
|
Optional
|
|
|||
|
Quick-hitch
|
Optional
|
|
|||
|
Color
|
Yellow
|
|
|||
Engine
|
Model
|
Yunnei YN38
|
|
|||
|
Rated power/Speed
|
76kw/2200 rpm
|
|
|||
|
Pattern
|
In-line arrangement/ water-cooled/ Direct Injection/4 stroke cycle
|
|
|||
Transmission System
|
Gearbox model
|
Hydraulic transmission
|
|
|||
|
Gear shift
|
4 Forward 4 Reverse
|
|
|||
|
Type
|
Automatic
|
|
|||
|
Axle
|
Single stage planetary reduction wheel-side reducer circular arc bevel gear single stage
|
|
|||
|
Hydraulic pressure
|
16mpa
|
|
|||
|
Hydraulic oil
|
68/46
|
|
|||
|
Drive Mode
|
Hydraulic converter, four wheel drive
|
|
|||
|
Operating
|
Joystick control
|
|
|||
|
working pump
|
Gear pump
|
|
|||
Steering System
|
Steering System pattern
|
Articulated type, Hydraulic power steering
|
|
|||
Braking System
|
Driving brake
|
Four-wheel hydraulic brake
|
|
|||
|
parking brake
|
Disc brake
|
|
|||
Tyre
|
Model
|
16/70-24
|
|
|||
|
Pressure of tire
|
0.25-0.35mpa
|
|
|||
Package
|
|
2 UnitS in 40HQ
|
|
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization
4) Provide the technology consultancy whenever you have the questions about our products,and we are pleased to help you solve any question anytime.
Name: Turbo
Brand: Rynaide
Original: China
Domestic famous factory, strong driving force, high economic benefits.
Name:
Shaft gear
Brand:
Weichai Power
Original:
China
Machining center precision turning, quenching shot peening, strong and durable.
Name:
Engine
Brand:
Weichai
Original:
China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits .
Name:
Gears
Brand:
Weichai Power
Original:
China
Machining center precision turning, quenching shot peening, strong and durable.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging
|
|
|
Size
|
6500*2200*3000mm
|
|
Weight
|
5 T
|
|
Packaging Details
|
Trailer transportation need remove tires, and without package.
|
Packaging
|
|
|
Size
|
6500 (L) * 2200 (W) * 3000 (D)mm
|
|
Weight
|
5 T
|
|
Packaging Details
|
Fasten it with wedges, nude package.
|
