Quick Details
-
Place of Origin:
-
Hebei, China
-
major structure:
-
6500mm*1350mm*1500mm
-
Thickness of the plate:
-
0.15-0.6mm
-
Width of the plate:
-
1000mm
-
Diameter of the roller:
-
70mm
-
Rolling CR thickness:
-
0.05mm
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
gi ppgi
-
Production Capacity:
-
0-15m/min
-
Place of Origin:
-
Hebei, China
-
major structure:
-
6500mm*1350mm*1500mm
-
Thickness of the plate:
-
0.15-0.6mm
-
Width of the plate:
-
1000mm
-
Diameter of the roller:
-
70mm
-
Rolling CR thickness:
-
0.05mm
wall panel roof forming machine Weatherboard Sheet Cladding Forming Machine Manufacturers
We (botou golden Integrity roll forming machine factory ) ensure High precise and higher quality, solid material with best reasonable price !
1. Working Flow and Layout:
2.Technical parameters
|
1 |
C onfigurations |
De coiler, G uiding P latform, M ain M achine of R oll F orming, C utting D evice, O utput table, E lectric M otor, H ydraulic S tation, PLC C ontrol S ystem |
|
2 |
P rocessing M aterial |
Aluminium ,PPGI, GI Sheet/Coil (Q235&Q550MPA) |
|
3 |
M aterial T hickness |
0.25---0.8mm |
|
4 |
F eeding W idth |
1200 mm |
|
5 |
E ffective W idth |
780mm |
|
6 |
Number of Roller Station |
16 |
|
7 |
R oller Material |
45# steel with surface chrome 0.03-0.05mm, Hard chrome mirror polishing, heat treatment to 58-62 ℃, tooled by grinding machine for two times to ensure the precision of final product. |
|
8 |
Shaft diameter |
70 mm , solid |
|
9 |
S haft Material |
45# carbo s n wrought steel , forged, tooled by grinding machine for two times to ensure the precision of final product. |
|
10 |
Wall Panel |
Thickness: 16mm |
|
1 1 |
M ain M otor P ower |
5.5 kw +3Kw |
|
1 2 |
Production Speed |
12 --1 5 m/min |
|
1 3 |
C ontrol S ystem |
PLC computer control PLC brand: Panasonic from Japan |
|
1 4 |
C utter M aterial |
Cr12 mov with quenched treatment |
|
1 5 |
Voltage |
380 V, 5 0Hz, 3 phrases or as required |

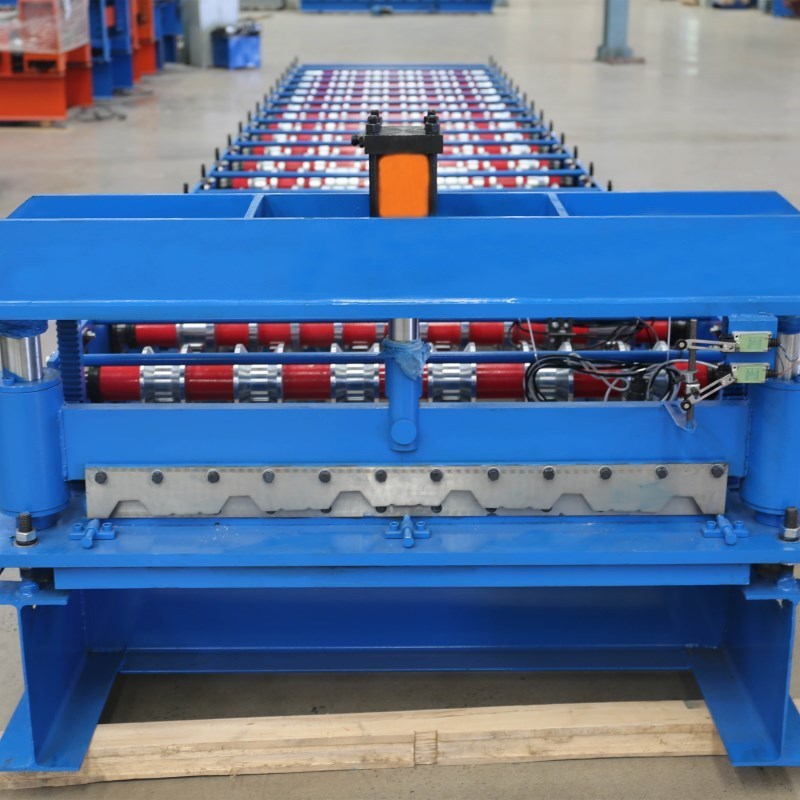

4. Machine pictures:
Sheets connected perfect!
5. Certifications:
6. International Trade:
7. Factory:
Good day to you ,hope you can choose us !
Welcome your kind inquiry!
