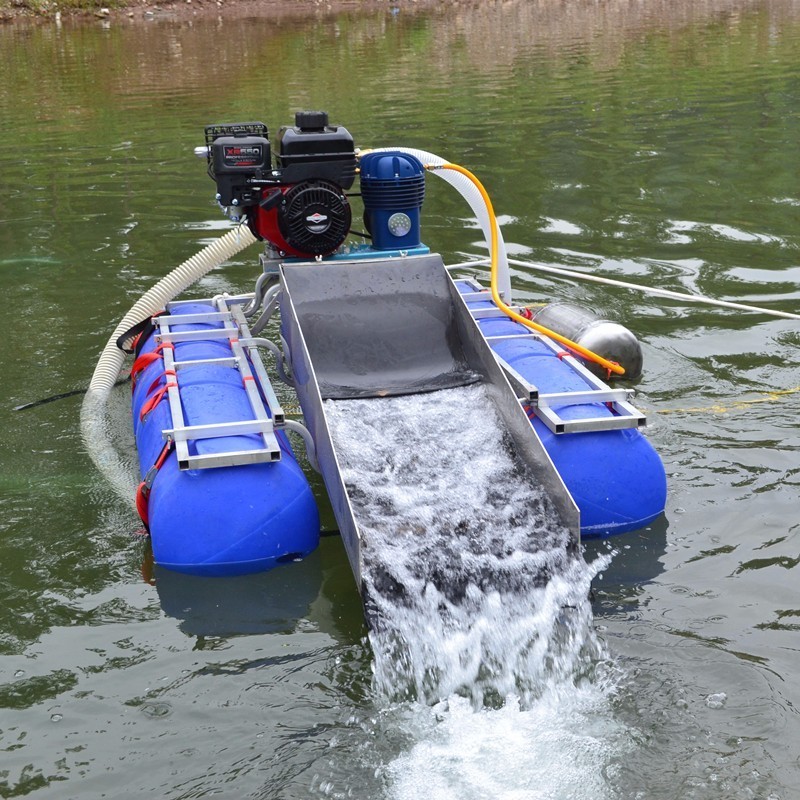

Portable Mini 3 inch Gold Mining Suction Dredge

Portable Mini 3 inch Gold Mining Suction Dredge

FOB Reference Price: Get Latest Price

≥1 Sets

US $2900

≥3 Sets

US $2700

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: REAL

Dimension(L*W*H):: 2.95m*1.1m*0.84m

Weight:: 90 KG

Application:: Sand dredging gold mining machine

Usage:: Port river lake sea gold dredging

Work site:: Shallow Water

Structure:: Dismantle

Pump/Power:: DW180 / GX200 6.5

Air Compressor:: T-80

Capacity:: 3m³/h

Fuel Consumption:: 1.7L/h

Suction Hose:: 3" X 6m

Certification:: ISO9001

Quick Details

Dredging Depth:: 6 m

Draught:: 20 cm

Place of Origin:: Shandong, China

Brand Name:: REAL

Dimension(L*W*H):: 2.95m*1.1m*0.84m

Weight:: 90 KG

Application:: Sand dredging gold mining machine

Usage:: Port river lake sea gold dredging

Work site:: Shallow Water

Structure:: Dismantle

Pump/Power:: DW180 / GX200 6.5

Air Compressor:: T-80

Capacity:: 3m³/h

Fuel Consumption:: 1.7L/h

Suction Hose:: 3" X 6m

Certification:: ISO9001

Portable Mini 3 inch Gold Mining Suction Dredge

These 3 inch dredges are equipment for economy and portability.These dredges can be quickly and easily broken down into small components where two men can transport the dredge manually.All dredges are equipped with a T80 compressor for an ample air supply for 1-2 divers.

The sluice box sets at the surface of the water to reduce the water lift and increase suction power.All frames have been reinforced for a more stable working platform.

The engines offer greater suction depths up to 6 meter.The suction system is equipped with an oversized power jet and twin eductor systems to reduce the occurrence of rock jams.The sluice box is equip rubber mat inside which designed to recover fine gold and gemstones.

PRODUCT SPECIFICATION

Size	3inch
Pump/Power	DW180 / GX200 6.5
Air Compressor	T-80
Max Dredging Depth	6m
Capacity（m³）	3m³/h
Fuel Consumption（L）	1.7L/h
Suction Hose/Length	3” X 6m
Net Weight	86kg
Packed Weight	131kg
Chute Specification	1220*400mm
Floating body specifications	φ3008004mm
*Dimension(LWH)*	29501100840mm

DETAILED IMAGES

Engine&Pump&Air Compressor

Sluice Box With Rubber Mat

Power Jet&Suction Nozzle

Air pipe&tank

Strong Frame&quick connect

Inflatable Rubber Float

PRODUCT ADVANTAGES

--The dredge can be quickly and easily broken down into small components where two men can transport the dredge manually;

--It has large carpeted walkways on the decks that can accommodate several divers and provide ease of access around all working parts of the dredge.

--The sluice box sets at the surface of the water to reduce the water lift and increase suction power, winch leveling system for precise tilt and sluice box adjustment;

--Equipped with world-famous rubber mat that is designed for superior gold recovery;

--The suction system is equipped with an oversized power jet and twin eductor systems to reduce the occurrence of rock jams;

--The frames have been reinforced for a more stable working platform;

--The original T80 air compressor can supply air for divers.

WORK DIAGRAM

PACKING AND SHIPPING

Note:

We use wooden box packaging, which can effectively protect the goods from damage.

Because it contains an engine and is large in size, we do not support air transportation for the time being.

BEFORE&AFTER SELL SERVICE

Pre-sale service:

1.Support customer customization. 2.Learn customers' actually mining condition, recommend the suitable equipment according to clients actually demand.

During-sale services:

1.Pre-check and accept products before delivery. 2.Send technicians to the jobsite for guiding the installation and adjustment. 3.Training operators and finishing the check to satisfy your requiremnet.
