- Product Details
- {{item.text}}

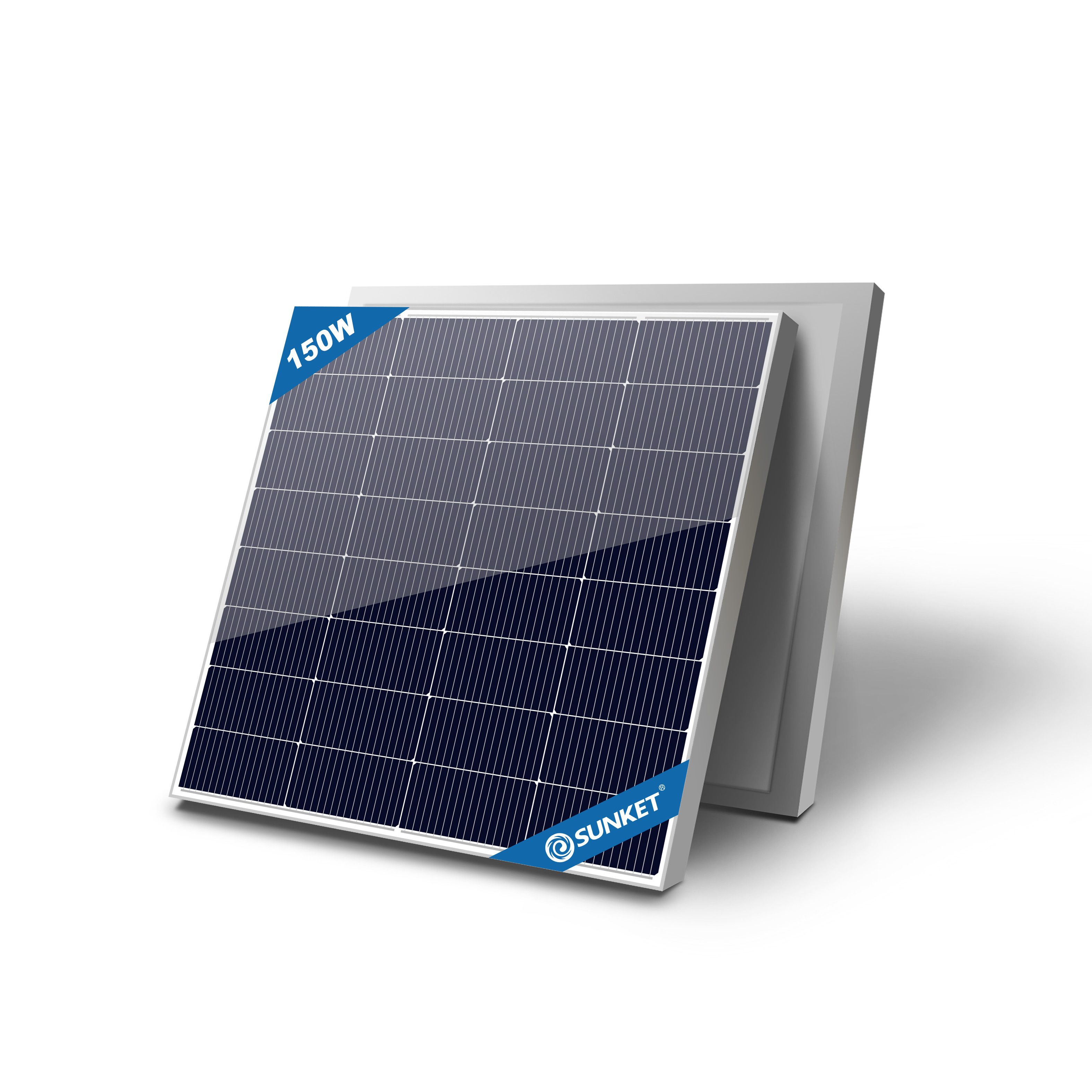

Quick Details
-
Warranty:
-
25 Years
-
Brand Name:
-
Sunket
-
Model Number:
-
skt150m10
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1040*765*30mm
-
Application:
-
Home Commercial Solar System
-
Certificate:
-
IEC UL
-
Solar cell:
-
Monocrystalline Silicon Cells
-
Junction Box:
-
IP67
-
Material:
-
Monocrystaline Silicon
-
Frame:
-
Anodized Aluminium Alloy
-
Glass:
-
3.2 mm tempered glass
-
Connector:
-
MC4 Compatible
-
Max. Power:
-
150w
-
Output Cables:
-
90cm, length can be customized
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
Half Cell, All Black, N-TYPE, TOPCON, standard
-
Panel Efficiency:
-
150w
-
Warranty:
-
25 Years
-
Brand Name:
-
Sunket
-
Model Number:
-
skt150m10
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1040*765*30mm
-
Application:
-
Home Commercial Solar System
-
Certificate:
-
IEC UL
-
Solar cell:
-
Monocrystalline Silicon Cells
-
Junction Box:
-
IP67
-
Material:
-
Monocrystaline Silicon
-
Frame:
-
Anodized Aluminium Alloy
-
Glass:
-
3.2 mm tempered glass
-
Connector:
-
MC4 Compatible
-
Max. Power:
-
150w
-
Output Cables:
-
90cm, length can be customized
Technical specifications
|
Electrical Characteristics
|
|
|
||
|
Module Type
|
SKT 140M10
|
SKT 150M10
|
||
|
Maximum Power- Pmax(W)
|
140
|
150
|
||
|
Open Circuit Voltage - Voc(V)
|
20.42
|
20.59
|
||
|
Short- Circuit Current - Isc(A)
|
8.40
|
8.82
|
||
|
Voltage at Pmax -Vmp(V)
|
17.58
|
17.87
|
||
|
Current at Pmax - Imp(A)
|
7.96
|
8.39
|
||
|
Module Efficiency -ηm(%)
|
18.67
|
20.01
|
||
|
Power Tolerance(W)
|
0，+4.99W
|
|
||
|
Maximum System Voltage(V)
|
700Vdc (IEC / UL)
|
|
||
|
Maximum Series Fuse Rating (A)
|
10A
|
|
||
