Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
M-Alite
-
Model Number:
-
ASL66-50W
-
IP Rating:
-
IP65
-
Beam Angle(°):
-
60 90 120 150
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
AC85-265V
-
Lamp Luminous Flux(lm):
-
≥5000lm
-
Working Temperature(℃):
-
-40--60℃
-
Power:
-
50w
-
Item name:
-
Waterproof Outdoor
-
IP Grade:
-
IP65 Waterproof
-
LED Chip:
-
SMD3030
-
LED Light Source:
-
SMD3030
-
Voltage:
-
AC85-265V
-
Lamp Body Material:
-
Die-casting Body
-
Power Factor:
-
PF>0.9
Quick Details
-
Color Temperature(CCT):
-
2700K-6500K, 2700K~6500K
-
Warranty(Year):
-
2-Year
-
Lighting solutions service:
-
Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
M-Alite
-
Model Number:
-
ASL66-50W
-
IP Rating:
-
IP65
-
Beam Angle(°):
-
60 90 120 150
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
AC85-265V
-
Lamp Luminous Flux(lm):
-
≥5000lm
-
Working Temperature(℃):
-
-40--60℃
-
Power:
-
50w
-
Item name:
-
Waterproof Outdoor
-
IP Grade:
-
IP65 Waterproof
-
LED Chip:
-
SMD3030
-
LED Light Source:
-
SMD3030
-
Voltage:
-
AC85-265V
-
Lamp Body Material:
-
Die-casting Body
-
Power Factor:
-
PF>0.9
Application
◎
Roadway lighting
(underground passages,Residential areas, overpasses…)
◎
Public areas lighting
(Theme parks,squares…)
Specification
|
Model No.
|
ASL66-30W
|
ASL66-50W
|
ASL66-100W
|
ASL66-150W
|
|
||||
|
Lumen effect
|
95-130lm/w
|
|
|
|
|
||||
|
Led Power
|
±5%
|
|
|
|
|
||||
|
Power factor
|
＞0.95
|
|
|
|
|
||||
|
Input Voltage
|
85-265V
|
|
|
|
|
||||
|
CCT
|
3000-6500K
|
|
|
|
|
||||
|
Beam Angle
|
Optional
|
|
|
|
|
||||
|
Life Span
|
Chips optional
|
|
|
|
|
||||
|
Working Temperature
|
-40℃~60℃
|
|
|
|
|
||||
|
Surge
|
3KV,5KV
|
|
|
|
|
||||
|
CRI
|
≥70
|
|
|
|
|
||||
|
Driver
|
Optional
|
|
|
|
|
||||
Product Description

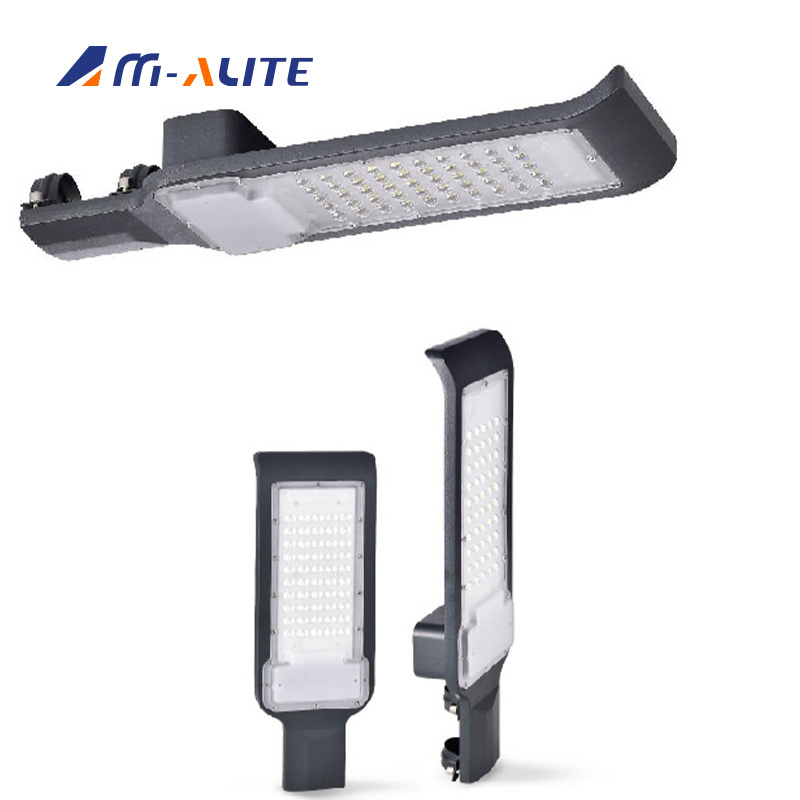

LED Urban Street Light
Elegant and integrated & modern
design,
from 30W-150W,
140lm/w,
5
years warranty
LED Chip
Using 3030 high brightness lamp beads, high luminous efficiency, long service life, strong energy utilization
Waterproof cover
LED DRIVER
Any Famous brand driver and ourselves driver are optional
Heat dissipation
Convection heat dissipation, sufficient heat dissipation, wide exposure range
IP65
Surge
SPD
10KV Surge
Street Light Adapter
Size is optional
Hexagon socket screw
Electroplating process, fastening, non-slip, corrosion resistance
Size is optional
Hexagon socket screw
Electroplating process, fastening, non-slip, corrosion resistance
Installation Process
LED STREET LIGHTING AGING TESTING
IP65 WATERPROOF TESTING
Packing & Loading
