- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
VMADE
-
Dimension(L*W*H):
-
2.32*1.77*1.54M
-
Weight (KG):
-
500 KG
-
Laser Output Control:
-
0-100% Software Setting
-
Highest Scanning Precision:
-
4000DPI
-
Locating Precision:
-
≤+0.01mm
-
Controlling Software:
-
DSP Control System
-
Cooling Type:
-
Water Cooling
-
Laser Power:
-
60w/80w/100w/130w//150w
-
Power Supply:
-
AC110V/220V+10%,50HZ/60HZ
-
Working Environment:
-
Temperature:0-45C,Humidity5-95%(No Condensate Water)
Quick Details
-
Engraving Area:
-
510*300MM
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-60000mm/min
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
VMADE
-
Dimension(L*W*H):
-
2.32*1.77*1.54M
-
Weight (KG):
-
500 KG
-
Laser Output Control:
-
0-100% Software Setting
-
Highest Scanning Precision:
-
4000DPI
-
Locating Precision:
-
≤+0.01mm
-
Controlling Software:
-
DSP Control System
-
Cooling Type:
-
Water Cooling
-
Laser Power:
-
60w/80w/100w/130w//150w
-
Power Supply:
-
AC110V/220V+10%,50HZ/60HZ
-
Working Environment:
-
Temperature:0-45C,Humidity5-95%(No Condensate Water)
Machine Application
Detailed Images
Parameter
|
Cutting Area
|
500*300mm
|
|
Overall Dimensions
|
958×528×268mm
|
|
Cutting Speed
|
200m/min
|
|
Laser Head
|
vmadecloud
|
|
Z-axis Height
|
25mm
|
|
Laser Source
|
CO2 laser source
|
|
Locating System
|
SMC
|
|
Visual Working Area
|
Visual locating
|
|

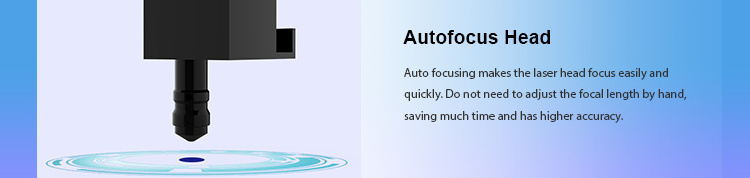

Autofocus
|
Material Recognition Autofocus, Material Set-up Autofocus, Visual Autofocus
|
|
Connection
|
Wi-Fi, USB, Ethernet
|
|
File Formats
|
JPG, PNG, BMP, TIF, DXF, SVG, CR2, and etc.
|
|
Material capability
|
Paper, corrugated paper, wood, acrylic, cloth, leather, base plate, ABS-based color board, PET, rubber, glass fiber, plastic,corian and other dozens of materials
|
Samples

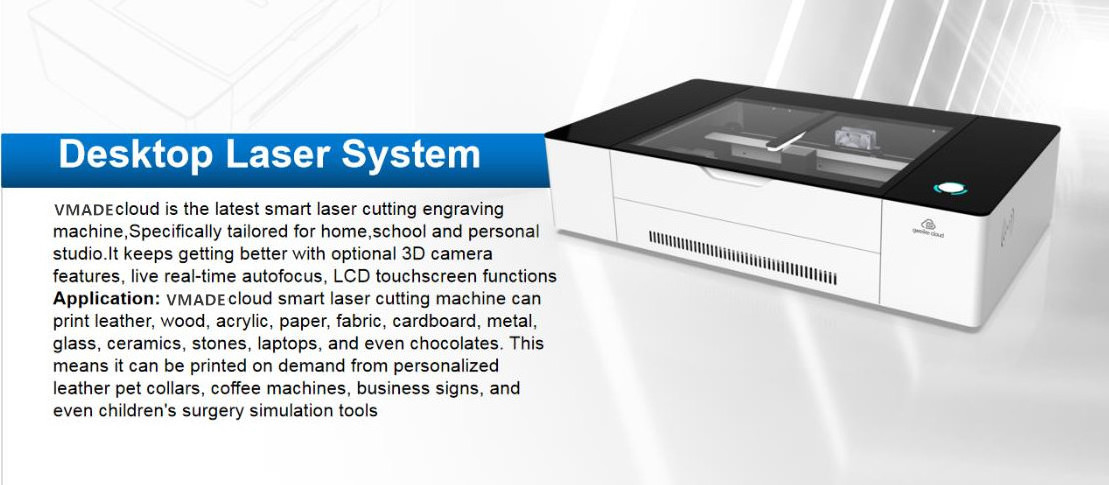

This cloud CO2 laser cutting machine can print leather,wood, acrylic, paper, fabric, cardboard, metal, glass, ceramics,stones, laptops, and even chocolates.
This means it can be printed on demand from personalized leather pet collars, coffee machines, business signs, and even children's surgery simulation tools
|
Material
|
Engraving
|
Cut
|
Material
|
Engraving
|
Cut
|
|
Wood
|
√
|
√
|
Sandpaper
|
√
|
√
|
|
Fabric
|
√
|
√
|
Foods
|
√
|
√
|
|
Leather
|
√
|
√
|
Glass
|
√
|
〇
|
|
Paper
|
√
|
√
|
Marble
|
√
|
〇
|
|
Cardboard
|
√
|
√
|
Rubber Stamps
|
√
|
〇
|
|
Plexiglass(Acrylic)
|
√
|
√
|
Ceramic Tile
|
√
|
〇
|
|
Delrin(Acetal)
|
√
|
√
|
Anodized Aluminum
|
√
|
〇
|
|
Mylar
|
√
|
〇
|
Titaniurn
|
√
|
〇
|
|
Rubber
|
√
|
√
|
Corian
|
√
|
〇
|
