Quick Details
-
Power:
-
36KW
-
Dimension(L*W*H):
-
customized
-
Weight:
-
100 KG
-
Marketing Type:
-
New Product 2021
-
Insulation layer:
-
PU
-
Cooling jacket:
-
Dimple Plate
-
Washing system:
-
CIP cleaning, Omni spray washing
-
Training:
-
Beginners to be trained
-
Certificate:
-
CE/ISO
-
Terms of Payment:
-
T/T or L/C
-
Material:
-
Internatinal Standard SUS304
-
Inner-Jacket thickness:
-
3mm
-
External-Jacket thickness:
-
2mm
-
Control system:
-
Temperature, Pressure auto control
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hulk Industrial Beer Equipment
-
Voltage:
-
110V
-
Power:
-
36KW
-
Dimension(L*W*H):
-
customized
-
Weight:
-
100 KG
-
Marketing Type:
-
New Product 2021
-
Insulation layer:
-
PU
-
Cooling jacket:
-
Dimple Plate
-
Washing system:
-
CIP cleaning, Omni spray washing
-
Training:
-
Beginners to be trained
-
Certificate:
-
CE/ISO
-
Terms of Payment:
-
T/T or L/C
-
Material:
-
Internatinal Standard SUS304
-
Inner-Jacket thickness:
-
3mm
-
External-Jacket thickness:
-
2mm
-
Control system:
-
Temperature, Pressure auto control
Beer Making Machine Craft Beer Brewery Industrial Turnkey Restaurant Home Beer Brewing Equipment System
Hulk Beer Brewing Equipment, we provide you with only the best quality vessels that meet all of your requirements. A ll of our v essels are made with the highest of st andards and all pressure vessels are designed verified and certified in accordance with all of the latest Chinese High Level welding and pressure vessel standards.

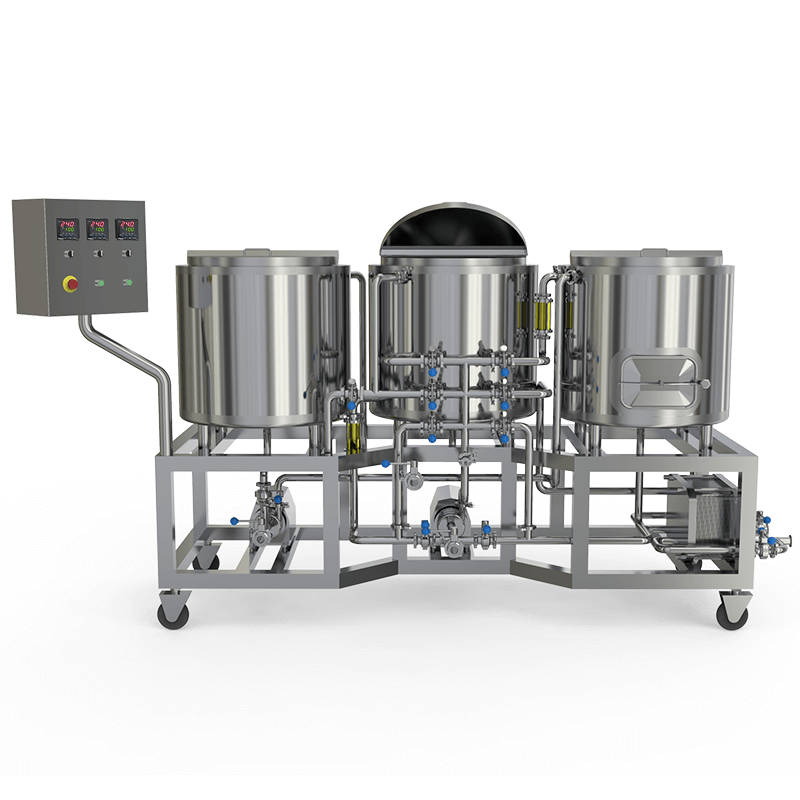

100l Industrial Beer Equipment
|
1-1 |
Mash+Lauter Tank |
1. Effective v olume=1 00 L ,total volume=125L 2. Atmospheric pressure lid 3. Tri-clamp Spary device 4. Wort backflow pipeline equip with Sight glass 5. Removable false bottom 6. Grain out door +chute 7. Temperature Probe&PT-100 8. RIM 3KW |
|
1-2 |
Kettle+Whirlpool Tank |
1. Effective v olume=1 00 L ,total volume=125L 2. Atmospheric pressure lid 3. 6kw electric element 4. Tangential whirlpool inlet 5. Temperature Probe&PT-100 |
|
1-3 |
Wort Pump |
1. Flow : 1T/h , lift: 18m 2. Power: 0.55kw 3. Rev: 2880r/min Capacity:1000L/h 4. VFD type Centralized Pump |
|
1-4 |
Hops Filter & Heat Exchanger |
1. Y type hops filter 2. Sight glass equip on pipeline before heat exchanger 3. 2m2 single stage plate heat exchanger (Tap water | Hot wort) |
|
1-5 |
Hot Water Tank |
1. Effective v olume=1 00 L ,total volume=125L 2. Atmospheric pressure lid 3. 6kw electric element 4. Temperature Probe&PT-100 |
|
1-6 |
Hot Water Pump |
1. Flow 1T/h 2. Power: 0.55kw 3. Rev: 2880r/min Capacity:1000L/h |
|
1-7 |
P ID Controller |
1. SUS 304 Material cabinet 2. Temperature indicator & control of brewhouse 3. Wort Pump VFD Speed control 4. Hot water pump on/off control 5. With high quality electric components |
.
|
1. Effective v olume=1 00L,total volume=125L 2. Inner-jacket (SUS304) thickness: 3mm, pickling and passivating treated; 3. External-Jacket(SUS304) thickness: 2mm, Hairline polishing; 4. Top flange Manway 5. Oval head & 60 °conical bottom, thickness: 3mm. 6. Insulation layer: PU-thickness= 7 0mm. 7. 360° spray ball equip with CIP arm 8. Mechanical pressure relief valve 9. Pressure gauge 10. Sample Valve port 11. Beer outlet port 12. Bottom Drain port 13. Design pressure 0.2- 0.3MPa; Working pressure 0.15 -0.2 Mpa . 14. Temperature Probe&PT-100 15. 100% high accuracy TIG welding 16. Interior finish: Overall polishing to 0.6μm without dead corner. 17. 4pcs completely SUS304 heavy duty legs with leveling pad and legs support |
Fermentation System :
Function Yeast has aerobic respiration and anaerobic respiration in fermentation tank.Turn sugar into CO2 and alcohol. Finally we get original beer .
(1) Double jacket with insulation
(2) with 60 degree or 75 degree cone
(3) Cooling jacket with dimple type
(4) With safe release valve
100l Industrial Beer Equipment
Inner stretching membrane and PE paper and outer steel frame, and other packaging for shipping.
1. Main tanks, vessels and machines will be packaged with plastic paper firstly then with painted steel frames.
2. All spare parts, accessories and fittings will be packaged with wooden box.
3. All items wrapped with soft package for protection.
