Quick Details
-
Brand Name:
-
ESPE
-
Theory:
-
Diffuse reflection
-
Output:
-
NPN/ PNP
-
Description:
-

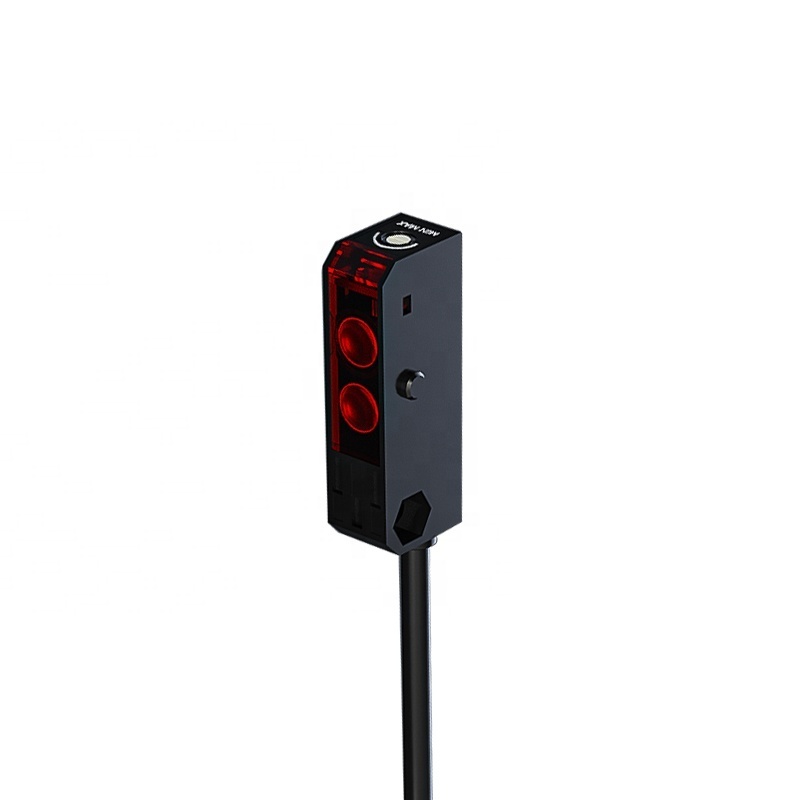

ES Tiny Photoelectric Sensor Switch
-
Product name:
-
ES Tiny Photoelectric Sensor Switch
-
Certificate:
-
CE RoHs ISO9001
-
Material:
-
PBT
-
Power supply:
-
DC12~24V
-
Indicate light:
-
Power indicate light
-
Weight:
-
100g
-
Warranty:
-
1 year
-
Degree of protection:
-
IP60
-
Output way:
-
NPN/PNP
-
Product size:
-
34.5*8*12mm
Quick Details
-
Usage:
-
Object detection
-
Model Number:
-
ES-D015NC/ ES-D015PC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ESPE
-
Theory:
-
Diffuse reflection
-
Output:
-
NPN/ PNP
-
Description:
-
ES Tiny Photoelectric Sensor Switch
-
Product name:
-
ES Tiny Photoelectric Sensor Switch
-
Certificate:
-
CE RoHs ISO9001
-
Material:
-
PBT
-
Power supply:
-
DC12~24V
-
Indicate light:
-
Power indicate light
-
Weight:
-
100g
-
Warranty:
-
1 year
-
Degree of protection:
-
IP60
-
Output way:
-
NPN/PNP
-
Product size:
-
34.5*8*12mm
Welcome to ESPE!
Here we just show an example, please contact us for more models. You're special for us and deserve our special customization service.
- Cost-effective and high quality
- Quick delivery time
- Support ODM & OEM service
- Professional technical service support
- 19 years experience and Chinese top 2 factory
| Sensing distance |
150mm |
| Detection object | 3mm min |
| Response time | <1ms |
| Optical component | infrared diode |
| Power voltage | DC 12 ~240v, AC 24~240v |
| Current consumption | 10mA max |
| Output signal | NPN/ PNP option |
| Output way | NO/ NC switch |
| Indicate light | power indicate light |
| Circuit protection | Short circuit,reverse polarity,overload protection |
| Protection degree | IEC standard IP60 |
| Environment light | Incandescent light interference ≤3,000 lux; sunlight ≤10000 lux |
|
Operation
temperature |
-10 ~ +55 ℃ (no freezon) |
| Storage temperature | -40~+70℃ (no freezon) |
| Humidity | Operating:35-85% RH, storage: 35~85% RH (no water) |
| Insulation resistance | >20M Ω |
| withstand voltage | AC1000V 50/60Hz 1 min |
| Anti-vibration | 10~55Hz |
| Shied material | PBT shell; propene filter |
| Cable | 0.1mm 2 3 pin rubber cable |
| Accessories | instruction, screwdriver, bracket (with screw) |
Output circuit:
Outside size:
|
ES-D015NO Detection the arrival of the electronic printed circuit board |
ES- D015NO detects the presence or absence of a cover |
ES- T1R5NO detects thin workpieces |
| ES-T1R5NO detects the circuit board rack |
ES-T4N1 detects that the tray of the storage cabinet exceeds |
ES-T3N1 detection of workpiece in the gap |
