Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LINTCNC
-
Weight (KG):
-
3000 KG
Quick Details
-
Engraving Area:
-
3000*1500mm
-
Laser Type:
-
Fiber Laser
-
Engraving Speed:
-
0.8-25m/min
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LINTCNC
-
Weight (KG):
-
3000 KG
Product Description
Specification
|
Model
|

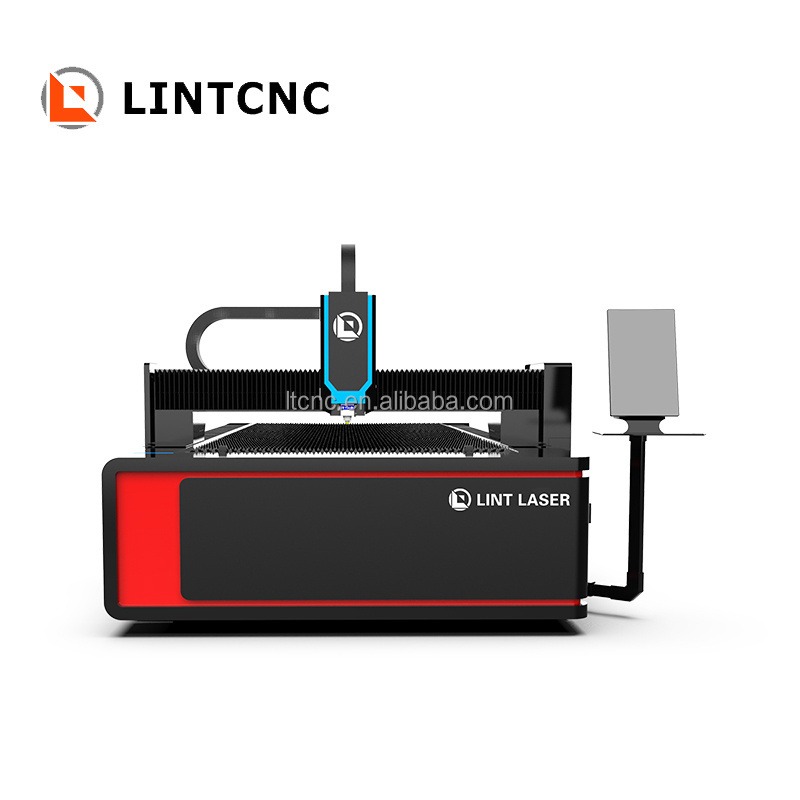

LINT-3015FE Fiber laser cutting machine
|
|
Effective working area
|
3000*1500mm working area
|
|
Laser source
|
1000/1500/2000/3000W Raycus/ MAX fiber laser source
|
|
Laser cutting head
|
Raytools or WSX laser head
|
|
Bed structure
|
High rigidity welded steel framework
|
|
Working Table
|
Blade table
|
|
Guide rail
|
Taiwan Hiwin linear square guide rail 25mm
|
|
Transmission
|
X,Y with helical gear rack ,Z with TBI ball screw
|
|
Motor & driver
|
FUJI servo motor & driver, X,Y axis 750w, Z axis 400w
|
|
Control system
|
FSCUT 1000S/2000C control system
|
|
Software
|
CypOne laser cutting software with BMC 1603 control card
|
|
Chiller
|
S&A, Dual Temperature Control or Hanli brand chiller
|
|
Reducer
|
Japan imported SHIMPO reducer
|
|
Lubrication system
|
Electric automatic lubrication system
|
|
Pressure valves
|
High-pressure(N2,air):2.5MPa(Shuoda)
|
|
Electronic Proportional Valve
|
SMC from Japan
|
|
Electronic Components
|
SCHNERDER, Omron
|
|
Max. idling speed
|
80m/min
|
|
Positioning Accuracy
|
±0.03mm
|
|
Re-Positioning Accuracy
|
±0.02mm
|
|
Instruction format
|
G code *.u00 *.mmg *.plt
|
|
Working voltage
|
AC380V, 3 phase,50-60hz(for more than 1000w)
AC220V, single phase, 50-60hz(for 1000w) |
|
Others
|
Tool box, English Manual, Exhaust fan, cutting nozzle, protection mirrors etc
|
Machine details
01 RAYTOOLS LASER HEAD
SWISS Brand cutting head with Auto focus system. Modularization, easy to maintain multi Protective lens, optical water cooling protection
02.Water chiller
Dual temperature fiber chiller is used to cool both the fiber laser and the connector. User can manually set water temperature control working mode according to actual needs
03.Reducer
Japan Brand high performance, wide application, high rigidity. High efficiency. Low noise and low backlash
.
04.
Sawtooth platform
Sawtooth platform use strength steel, it can keep longer service lifetime in fiber laser cutting progress with Taiwan Brand Hiwin guide rail, YYC gear pinion rack
