Quick Details
-
Key words:
-
drill bit
-
Application:
-
DTH Drilling
-
Diameter of button face:
-
90-110mm
-
Shank Length:
-
130mm
-
Weight:
-
3.55-4.6kg
-
Spline:
-
6
-
N0. air holes:
-
2
-
Button type:
-
ballistic
-
Guage buttons:
-
6*14
-
Front buttons:
-
2*13+2*12/6*13
Quick Details
-
Weight (KG):
-
4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XinJinGang
-
Key words:
-
drill bit
-
Application:
-
DTH Drilling
-
Diameter of button face:
-
90-110mm
-
Shank Length:
-
130mm
-
Weight:
-
3.55-4.6kg
-
Spline:
-
6
-
N0. air holes:
-
2
-
Button type:
-
ballistic
-
Guage buttons:
-
6*14
-
Front buttons:
-
2*13+2*12/6*13
Products Description
Product features:

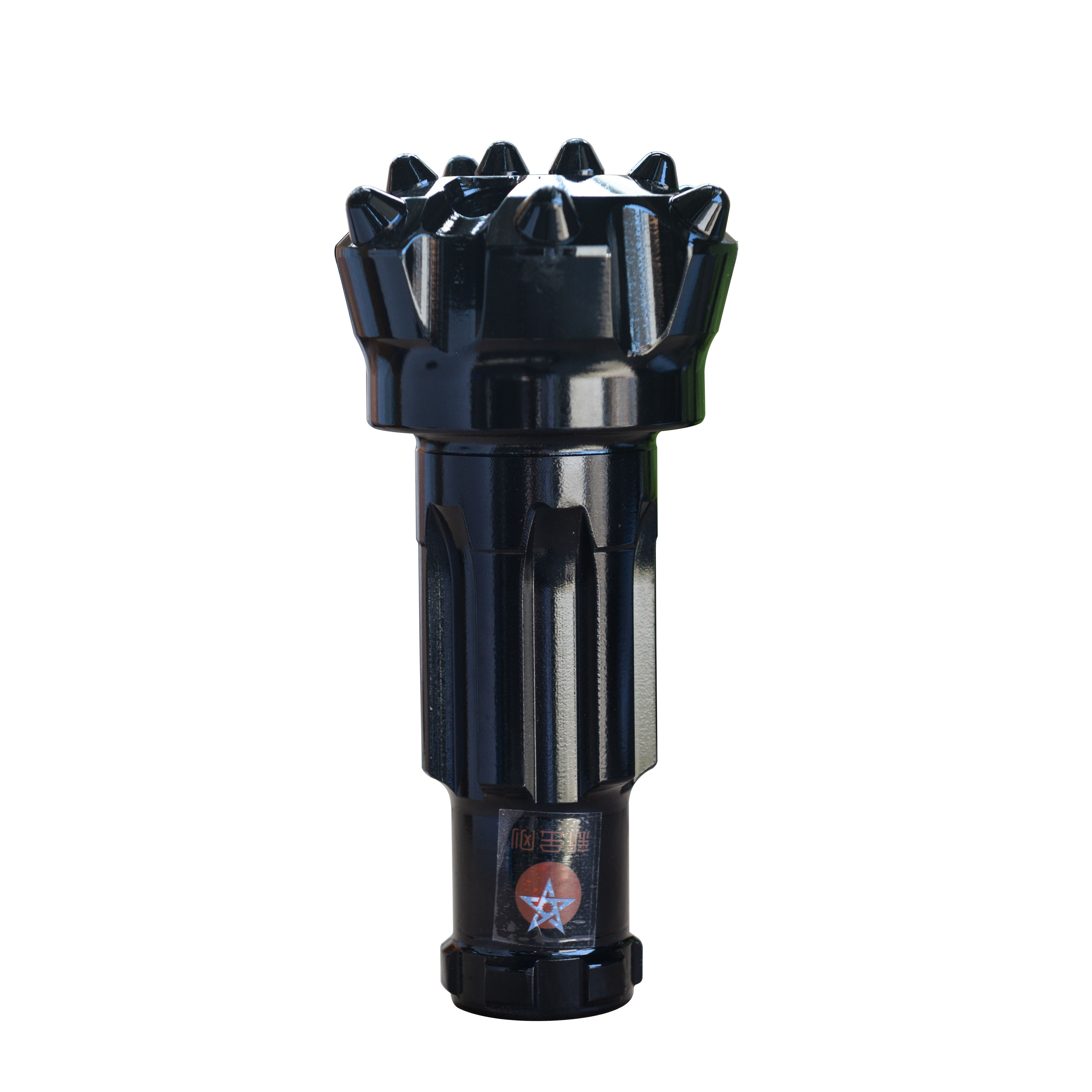

DTH Bits: Jugong is in the position to offer a comprehensive range of DTH drill bits with all diameters of the current prevailing manufacturers’ hammer shank designs to match various drilling applications. Our drill bits are multiple heat-treated to enhance hardness, surface-compressed for fatigue resistance, all thus to extend the product life for maximum wear and performance in the toughest of drilling conditions. Moreover, all these bits are also made from high quality alloy steels and fitte with premium quality tungsten carbide tips for superior penetration rate.
|
Modle
|
Head Shape
|
Diameter(mm)
|
Shank Length
|
Spline
|
|
N3
|
Convex Face
|
90
|
130
|
6
|
|
N3
|
Concave Face
|
110
|
130
|
6
|
|
No. air holes
|
Button Type
|
Gauge
Buttons
|
Front Buttons
|
Weight(kg)
|
|
2
|
Ballistic
|
6*Ø14
|
2*Ø13+2*Ø12
|
3.55
|
|
2
|
Ballistic
|
6*Ø14
|
6*Ø13
|
4.6
|
Product Specifications
Product Overview
Application
Mining
Water well drilling
Quarrying
Anchoring
