--Semi-Automatic NC type: manual feeding ,hydraulic or servo motor bending for options, economic and high precision. Most suitable for 2D bending products.
--Automatic CNC/PLC type: Japan servo motor control feeding , rotating and bending ,save workers and suitable for many 3D angles bending .car accessaries, bike supports, furniture chairs..
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
RUIFA HAIWEI
-
Power (kW):
-
5.5
-
Weight (KG):
-
3200, 3200
-
Applicable Industries:
-
all pipe related
-
Marketing Type:
-
HOT PRODUCT
-
Core selling point:
-
Automatic, Competitive Price,high-accuracy,high-productivity
-
Power type:
-
Hydraulic ,CNC,Motor
-
Type of raw material:
-
Metal Pipe, Steel Bar
-
Motor power (KW):
-
4
Quick Details
-
Bending Radius (mm):
-
50 - 400
-
Max. Bending Angle (Deg):
-
190
-
Bending Precision (Deg):
-
±0.1
-
Place of Origin:
-
China
-
Brand Name:
-
RUIFA HAIWEI
-
Power (kW):
-
5.5
-
Weight (KG):
-
3200, 3200
-
Applicable Industries:
-
all pipe related
-
Marketing Type:
-
HOT PRODUCT
-
Core selling point:
-
Automatic, Competitive Price,high-accuracy,high-productivity
-
Power type:
-
Hydraulic ,CNC,Motor
-
Type of raw material:
-
Metal Pipe, Steel Bar
-
Motor power (KW):
-
4
Title goes here.

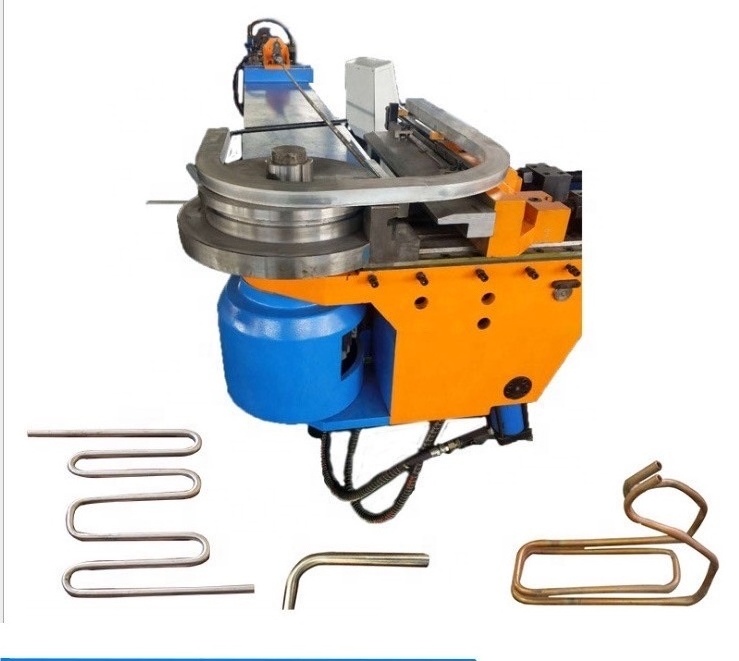

NC series pipe bending machine advantage:
NC Semi-Automatic pipe bending machine is a high-performance intermediate pipe bender, easy to control controller, widely used in mass production or standardized production, such as truck and other parts, such as exhaust pipe, seat cushion, bumper, sports equipment and all iron pipe furniture production. Also used in boiler, aerospace, shipbuilding and general engineering piping.
|
Item#
|
Name
|
Unit
|
Data
|
Data
|
Data
|
Remark/Brand
|
|
|
|
|
|
|
|
|
|
|
|
1
|
Max pipeO.D.×thickness
|
mm
|
50×2mm(2 inch)
|
75×4mm (3 inch)
|
90×6mm (3.5 inch)
|
|
|
|
2
|
Maxi. Bending radius
|
mm
|
R250
|
R280
|
R480
|
can be adjusted
|
|
|
3
|
Mini. Bending radius
|
mm，
|
R35
|
R40
|
R65
|
|
|
|
4
|
Maxi. Bending angle
|
degree
|
190°
|
190°
|
190°
|
|
|
|
5
|
Maxi. Length of feeding
|
mm
|
2500
|
2600
|
3500
|
can be adjusted
|
|
|
6
|
Bending speed
|
degree/s
|
300
|
180
|
160
|
can be adjusted
|
|
|
7
|
Bending accuracy
|
degree
|
±0.1
|
±0.1
|
±0.1
|
|
|
|
8
|
Hydraulic/OIL motor power
|
KW
|
5.5
|
7.5
|
11
|
|
|
|
9
|
Power
|
V
|
380v, 50Hz
|
380v, 50Hz
|
380v, 50Hz
|
|
|
|
10
|
Valve voltage
|
V
|
24
|
24
|
24
|
|
|
|
11
|
Machine Size
|
mm
|
2800×900×1400
|
4200×1100×1500
|
4500×1100×1500
|
|
|
|
12
|
Net .weight
|
T
|
1.8
|
3
|
4
|
|
|
|
13
|
Control panel
|
PLC with touch screen or industrial computer
|
|
Taiwan Delta
|
|
|
|
|
14
|
Data input way
|
1.coordinates (X,Y,Z) 2.working values (Y,B,C)
|
|
Taiwan Delta
|
|
|
|
|
15
|
Rotating servo motor power
|
w
|
750
|
Japan Mitsubishi
|
|
|
|
|
18
|
Hydraulic/OIL motor power
|
KW
|
7.5
|
|
|
|
|
|
19
|
Maxi. System pressure
|
MPA
|
15
|
|
|
|
|
|
20
|
Power
|
V
|
380v, 50Hz
|
|
|
|
|
|
21
|
Machine Size
|
mm
|
4500*1200*1400
|
|
|
|
|
|
22
|
Net .weight
|
T
|
3.2
|
|
|
|
|
