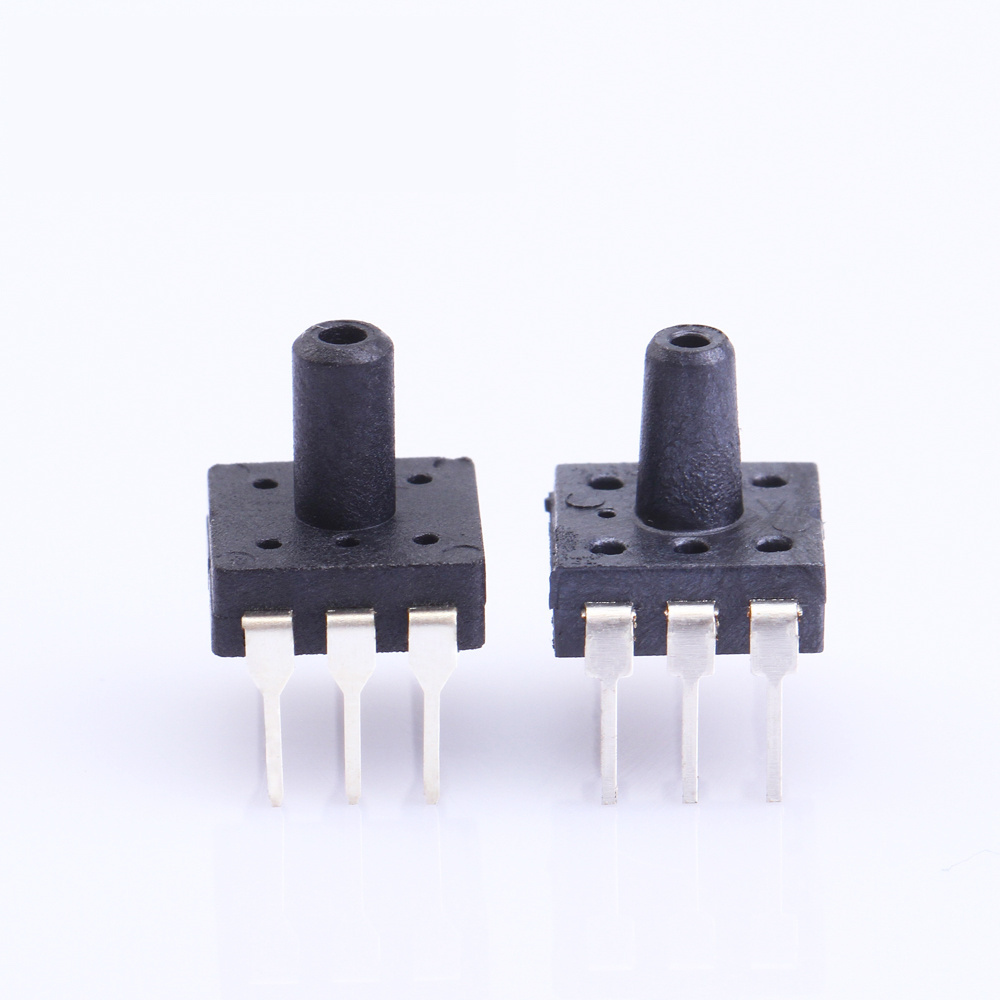

XGZP6857 analog gas blood pressure sensor
XGZP6857 analog gas blood pressure sensor
XGZP6857 analog gas blood pressure sensor
XGZP6857 analog gas blood pressure sensor
XGZP6857 analog gas blood pressure sensor
XGZP6857 analog gas blood pressure sensor
XGZP6857 analog gas blood pressure sensor
XGZP6857 analog gas blood pressure sensor

XGZP6857 analog gas blood pressure sensor

FOB Reference Price: Get Latest Price
≥10 Pieces
US $1.5
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Product name:
Pressure sensor
Pressure range:
-100~0kPa...2000kPa
Power supply:
5V/3.3V
Output signal:
0.5-4.5Vdc(Analog)&12C
Accuracy:
1.5%Span
Pressure type:
Gage/Vacuum
Measured media:
Air and non-corrosive gases
Compensated Temp.:
0-60'C
Work temperature:
-20 ~ 100'C
ESD HBM:
4000V

Quick Details

Place of Origin:
China
Brand Name:
CFSensor
Model Number:
XGZP6857A
Product name:
Pressure sensor
Pressure range:
-100~0kPa...2000kPa
Power supply:
5V/3.3V
Output signal:
0.5-4.5Vdc(Analog)&12C
Accuracy:
1.5%Span
Pressure type:
Gage/Vacuum
Measured media:
Air and non-corrosive gases
Compensated Temp.:
0-60'C
Work temperature:
-20 ~ 100'C
ESD HBM:
4000V
Product Description

Feature

  • Ranges: -100kPa ~5 kPa…5 kPa~200 ( -15PSI ~ 0.7 PSI …30 PSI )
  • Optional 5V or 3.3V power supply

  • Gage , Vacuum Type
  • For N on-corrosive gas or air
  • Amplified, Calibrated analog output (i2c is available)
  • Temp. Compensated: 0 ~+60 ( 32 ~ +140 )
  • Low Cost for high volume application

Application

  • For M edical and healthy equipment field, such as Blood pressure test and monitor, Patient Monitoring, Infusion and Syringe Pumps, Anesthesia Machines, Respirators and Ventilators, NPWT, DVT, COPD Treatment, catheter, Kidney dialysis, Cupping& Cosmetology , Massage device etc.

  • For Home appliance field, such as Refrigerator, Printer, Humidifier, Washer/Dryer, Coffee Machine, Cleaner, Robotic, Emergency Lamp ,Sport Equipment etc.

  • For O ther fields, such as air pump, emergency lamp , dust collector, HVAC and pneumatic device ,automotive application etc.

Performance Parameter

Unless otherwise specified, measurements were taken with a supply voltage of 5 Vdc at

a  temperature of 25±1℃ and humidity ranging from 25%~85 %.

Item Data Unit
Power Supply 5(or 3.3 by custom) V
Max. Excitation current 3 mA
Output Signal 0.5-4.5(or by custom) V
Accuracy ±1.5 %Span
TCO(Temp. Coefficient of Offset) ±0.03 %FS/℃
TCS(Temp. Coefficient of Span) ±0.03 %FS/℃
Long Term Stability(1year) ±2 %Span

Over Pressure

2X
Compensation Temp. 0 ~ 60/32 ~ 140 ℃/℉
Ambient Temp. -10 ~ 90/-4 ~ 185 ℃/℉
Storage Temp. -40 ~ 125/-40 ~ 257 ℃/℉

Pressure Range (100kPa=0.1MPa=1bar≈14.5PSI ≈750mmHg )

Pressure Range(kPa) Model
0 ~ 2.5 XGZP6857A025HPG
0 ~ 5 XGZP6857A005KPG
0 ~ 10 XGZP6857A010KPG
0 ~ 20 XGZP6857A020KPG
0 ~ 100 XGZP6857A100KPG
0 ~ 200 XGZP6857A2 00 KPG
-100 ~ 0 XGZP6857A1 00 KPGN
-30~ 0 X GZP6857A03 0 KPGN
-20 ~ 0 XGZP6857A020K PGN
-100 ~ 0 XGZP6857A1 00 KPGN
-20~ 0 XGZP6857A02 0 KPGN
-5~ 5 XGZP6857A005 KPGPN
-40~ 40 XGZP6857A040KPGPN
-100~ 100 XGZP6857A100KPGPN
-100~ 200 XGZP6857A200KPGPN

Available for more custom pressure range such like -2.5~2.5kPa, 0~60kPa etc,.

Please contact factory for tailor-made parameter

Dimension (Unit:mm/Inch)

Electric Connection

1

2

3

4

5

6

GND

N/C

N/C

OUT

VDD

N/C

NOTE:

1,N/C Pins must be left floating

2,Soldering of lead Pins:250 C for 5 sec max.

3 ,Please add 0.1uf capacitor between VDD and GND

Order Guide

Notes

1. Implement ESD protection during soldering and assembly.
2. Overload voltage(6.5Vdc) or current(5mA) may burn the ASIC.
3. The medium must be compatible with the pressurized parts.
4. Please contact us for special request on parameter and application.

Warranty
CFSensor warrants its products against defects in material and workmanship for 12 months from the date of shipment. Products not subjected to misuse will be repaired or reploced. CFSensor  reserves the right to make changes without further notice to any products herein. CFSensor  makes no warranty, representation or guarantee regarding the suitability of its products for any particular application . CFSensor  does not assume any liability arising out of the application or use of any product or circuit and specifically disclaims, and all liability, without limitation consequential or incidental damages. The foregoing warranties are exclusive and in lieu of all other warranties, whether written, oral, implied or statutory. No implied statutory warranty or merchant ability or fitness for particular purpose shall apply.
