Quick Details
-
Application:
-
IPTV VOD OTT
-
Product name:
-
Live Streaming Transcoder
-
Input:
-
IP/ASI/SDI/HD-SDI/HDMI
-
Input IP:
-
UDP Multicast/Unicast
-
Input IP Protocol:
-
RTMP HLS FLV SRT
-
Output:
-
IP/ASI
-
Output IP Protocol:
-
UDP/RTMP/HTTP(FLV)/SRT/HLS
-
Video encode:
-
H265 /H.264/MPEG2/AVS+
-
Hardware specs:
-
General PC Server 1U , GigE/ASI/SDI/AV
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
YUKUAN
-
Model Number:
-
YUK9000
-
Application:
-
IPTV VOD OTT
-
Product name:
-
Live Streaming Transcoder
-
Input:
-
IP/ASI/SDI/HD-SDI/HDMI
-
Input IP:
-
UDP Multicast/Unicast
-
Input IP Protocol:
-
RTMP HLS FLV SRT
-
Output:
-
IP/ASI
-
Output IP Protocol:
-
UDP/RTMP/HTTP(FLV)/SRT/HLS
-
Video encode:
-
H265 /H.264/MPEG2/AVS+
-
Hardware specs:
-
General PC Server 1U , GigE/ASI/SDI/AV
Product Description

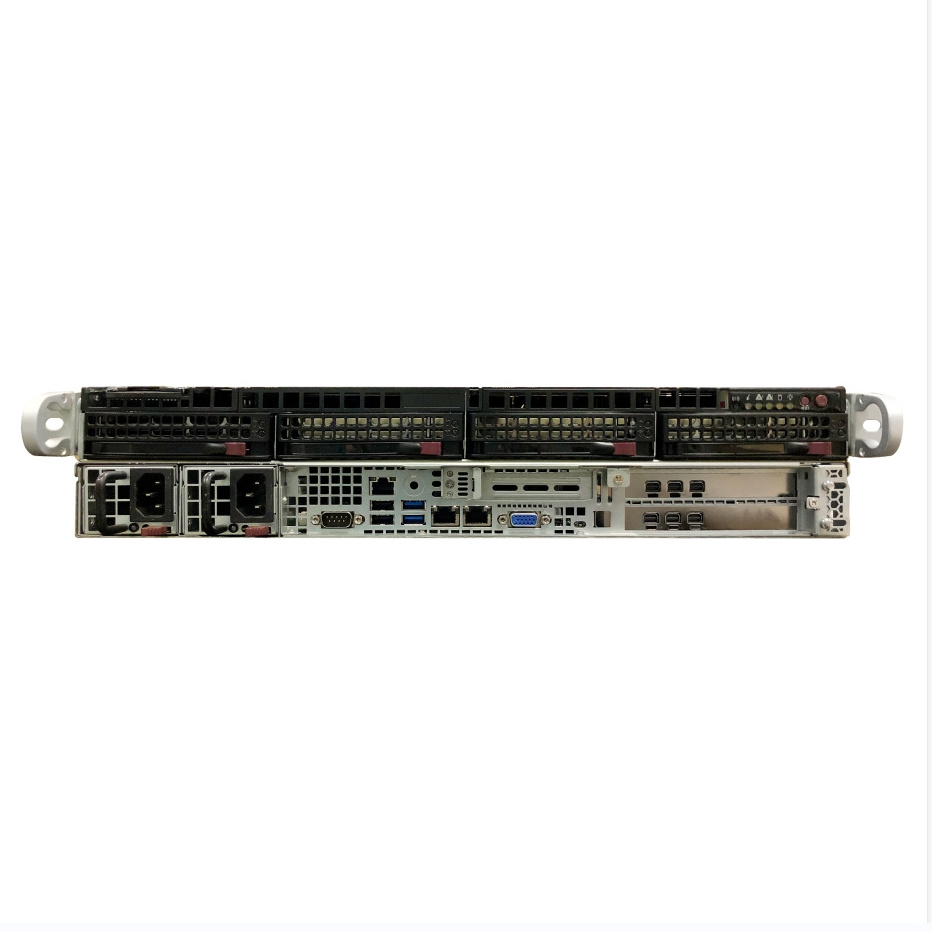

YUKUAN YUK9000
High Density RTMP And HLS Transcoder For Internet IPTV And OTT Solution Server
YUK9000 series network encoder adopts a standard 1U chassis structure and is a high-quality broadcast-level video and audio real-time encoding and transcoding product. This product not only has traditional MPEG2 and H.264 video encoding capabilities, but also supports the latest international video standard H.265.
YUK9000 network encoder can be used in many fields such as radio and television, security monitoring, live video broadcast, distance education, and telemedicine. It implements audio and video encoding and transcoding standards and supports a wide range of video formats on a single 1U device. It can provide low bit rate, high-quality digital audio and video encoding and transcoding solutions for customers with different needs in different fields.
Product Feature
* 4 channel 3G/HD/SD-SDI input
* 4 Gigabit Ethernet input/output
* Video encoding format H265 H.264 MPEG2
* IP input output protocol UDP HLS RTMP FLV SRT protocol input
* Support 15 channel HD programs or 20 channel SD program transcoding
* Audio encoding format AAC-LC, MPEG Layer 2, MPEG Layer 3
* One channel encoding supports 4 channel different IP address and different IP protocol output
* Support single-channel audio encoding or single video encoding
* Support volume fixed gain or dynamic gain adjustment
* Encoding format, video bit rate, resolution, frame rate, number of B frames, and CBR/VBR are all flexibly adjustable
* Supports individual adjustment of encoding channels
* Controllable via web interface
* System management based on IE architecture, simple parameter configuration, clear real-time system status information display, including: system load, temperature, CPU, memory, hard disk usage status
Product Specifications
|
Video
|
Input
|
4x3G/HD/SD-SDI input
|
|
|
Encoding format
|
HEVC H.264 MPEG2
|
|
|
Resolution
|
1080P(1920x1080)@25Hz,29.97Hz,30Hz,50Hz,59.94Hz,60Hz
1080I(1920x1080)@25Hz, 29.97Hz 720P(1280x720)@50Hz , 59.94Hz 576I(720x576)@25Hz 480I(720x480)@29.97Hz |
|
Audio
|
Input
|
SDI embedded audio
|
|
|
Encoding format
|
AAC-LC
MPEG Layer 2 MPEG Layer 3 |
|
HDR
|
HDR type
|
HDR10/HLG
|
|
Network
|
Port
|
4 x 10 /100 /1000BASE-T(RJ-45)
|
|
|
Protocol
|
UDP, unicast/multicast HLS RTMP FLV SRT
|
|
Others
|
Dimension
|
437mmx 754mmx43mm
|
|
|
Power supply
|
Dual power supply redundancy, support hot swap
AC 165V ~ 265V |
|
|
Power consumption
|
Max 20W
|
|
|
Operating environment
|
Temperature 0 ~ 50°C
Humidity 30~90% (noncondensing) |
