Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yateng
-
Model Number:
-
32GZ-RC370
-
Torque:
-
0.5-40kg.cm
-

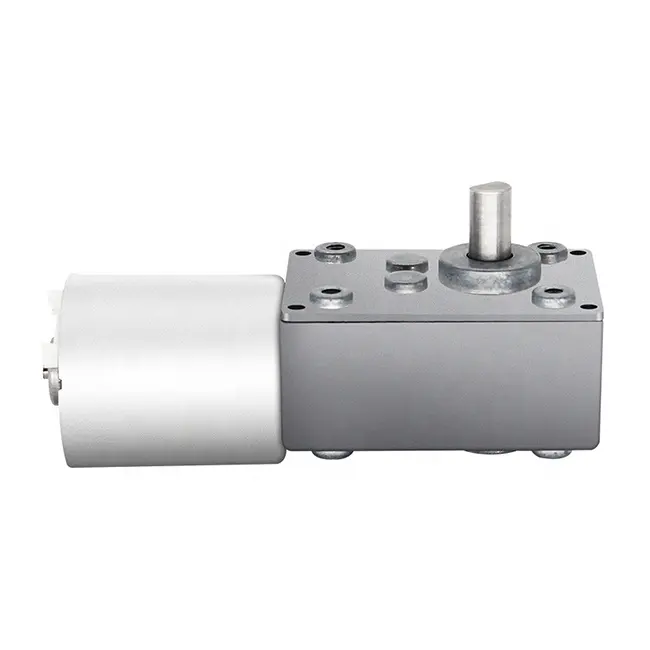

Product Name:
-
Permanent magnetic brushless dc motor
-
Application:
-
Car trunk lifting system Car door locks/rearview mirrors
-
Motor type:
-
Permanent DC Motor
-
Keywords:
-
High Torque DC Motor
-
No-load speed:
-
5300RPM
-
Rated Voltage:
-
12V
-
Brush Type:
-
Brushless
-
Diameter:
-
32mm
-
Stall torque:
-
0.5-40kg.cm
Quick Details
-
Speed(RPM):
-
5300rpm
-
Continuous Current(A):
-
2A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yateng
-
Model Number:
-
32GZ-RC370
-
Torque:
-
0.5-40kg.cm
-
Product Name:
-
Permanent magnetic brushless dc motor
-
Application:
-
Car trunk lifting system Car door locks/rearview mirrors
-
Motor type:
-
Permanent DC Motor
-
Keywords:
-
High Torque DC Motor
-
No-load speed:
-
5300RPM
-
Rated Voltage:
-
12V
-
Brush Type:
-
Brushless
-
Diameter:
-
32mm
-
Stall torque:
-
0.5-40kg.cm
| Gearbox Parameters | ||||
| Stage | 3 Stage | 4 Stage | 5 Stage | 6 Stage |
| Lenth(mm) | 46 | |||
| Efficience | 50% | |||
| Gear Ratio | 47,65,162,224 | |||
| 284,350 | ||||
| Rated Torque | ||||
| Instantaneous Allowable Torque | ||||
| Remarks: | ||||
| 1. Optional 36mm brushed dc or BLDC motor ( for matching ) | ||||
| 2. Temperature of use -40℃ ~ +80℃ | ||||
| 3. Output shaft can be customized based on requirements | ||||
| Single Motor Parameters | |||
| DC Motor Model | RC370 | ||
| Voltage (v) | 24 | Load Torque(gf.cm) | 37 |
| No-Load Speed (rpm) | 5300 | Load Speed (rpm) | 4700 |
| No-Load Current(mA) | 60 | Load Current (A) | 0.3 |
| Gearbox Model | Gear Ratio | 47 | 65 | 162 | 224 | 284 | 350 |
| 32GZ-RC370 | No-Load Speed (rpm) | 113 | 82 | 33 | 24 | 19 | 15 |
| Rated Torque (kgf.cm) | 0.87 | 1.2 | 3 | 4.14 | 5.25 | 6.48 | |
| Rated Speed (rpm) | 100 | 72 | 29 | 21 | 17 | 13 |
Q1.What kind of DC motors do you supply?
A1: YATENG Motor specializes in producing BLDC motors & wheel hub motors & gear motors with the diameter ranging from 12- 200 mm. In-depth customization is available. Our strength areas are robotics wheel hub motors, magnetic therapy BLDC motors, massaging vibration BLDC motors, express sorting motors as well as smart home solutions involving grinder Brushless motors, vacuum cleaner motors, vacuum cooker motors, motorized blinds & shades, hair dryer motors, etc.
Q2.What's the lead time for samples or mass production?
A2: Normally, it takes 15-25 days to produce samples; as for mass production, it will take 35-45 days for BLDC motor and gearbox motor after sample confirmed. Or please contact us by email for specific lead time base on your order quantities.
Q3. Could you kindly offer the quotation for this motor?
A3: Sure. All of our DC motors are customized based on different application requirements. We will provide the quotation soon after you send your specific requests and annual quantity.
Q4. Could you offer some kinds of accessories like encoder, PCB, connector, soldering wired for the dc motors?
A4: We are devoting to making BLDC motors, gearbox motors, wheel hub motors, and servo motors. Also accessories can do involving magnetic encoders, PCBA or controller, soldering wire,etc. For us, ODM/OEM designs are warmly welcome!
Q5. Are you motors certificated with UL, CB Tüv, CE?
A5: All of our motors are UL, CB Tüv, CE compliant, and all our components are making under REACH and ROHS. Yateng could provide motor's drawing and BOM for your products UL certificated. We also could make motors built-in filters based on your EMC directive for your EMC passing.
Q6: Where are your motors used for?
A6: Our BLDC motor, gearbox motor, wheel hub motor as well as servo motor are widely applied in many areas, involving serving robotics, magnetic therapy mattress, logistic equipment like SF express sorting machine, medical air pump, bank equipment, personal equipment,smart home
