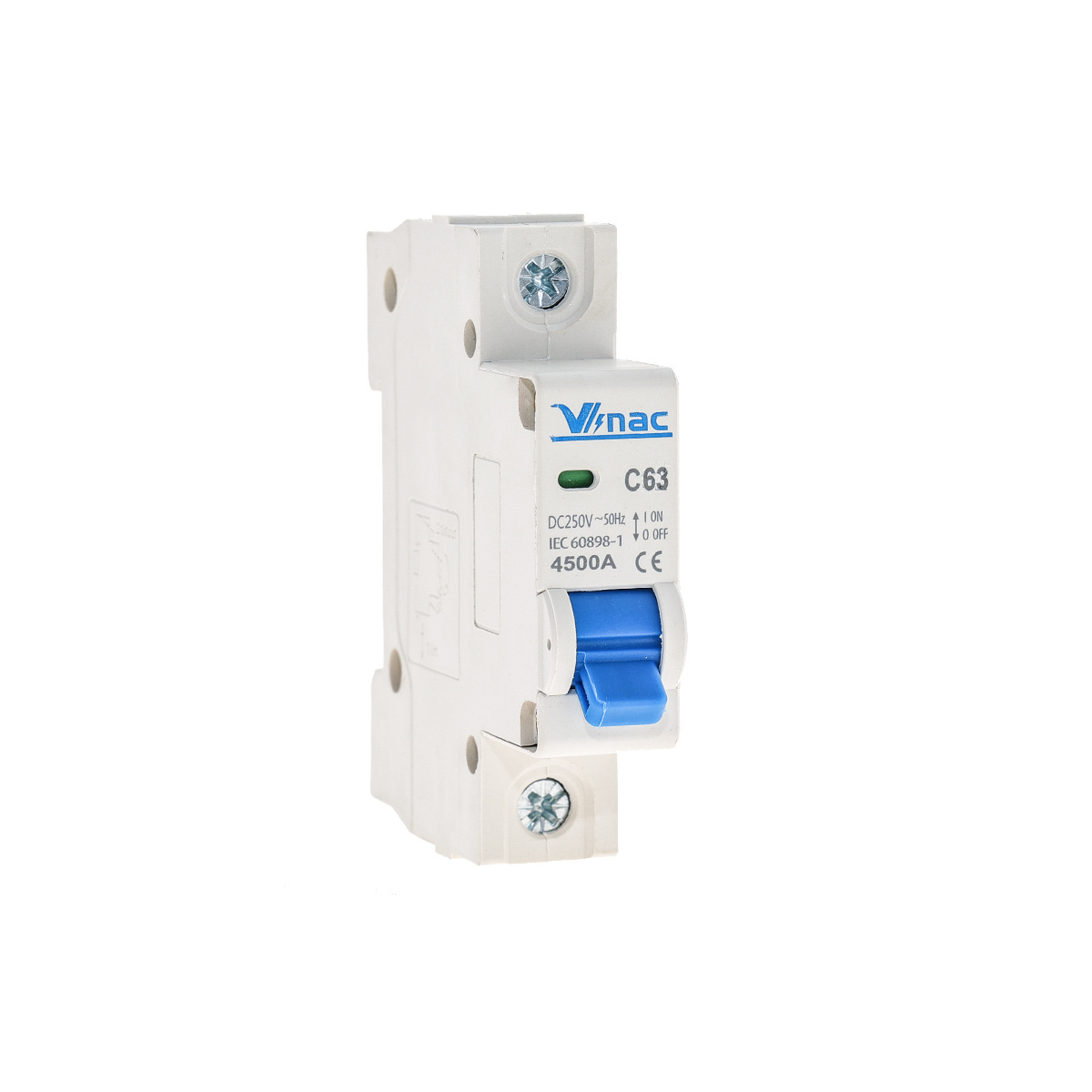

Quick Details
-
BCD Curve:
-
B/C/D
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
VINAC
-
Model Number:
-
DZ47
-
Rated Frequency (Hz):
-
50
Quick Details
-
Breaking Capacity:
-
4.5kA, 6kA, 10kA
-
Rated Voltage:
-
220V 380V
-
Rated Current:
-
6A 10A 16A 20A 32A 40A 50A 63A
-
BCD Curve:
-
B/C/D
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
VINAC
-
Model Number:
-
DZ47
-
Rated Frequency (Hz):
-
50
Product Description
|
Type
|
Test current
|
Tripping time
|
Type
|
Test current
|
Tripping time
|
|
B,C,D
|
1.13In
|
t≤1h(In≤63A)
|
B
|
3In
|
t≤0.1s
|
|
|
1.13In
|
t≤2h(In>63A)
|
C
|
5In
|
t≤0.1s
|
|
B,C,D
|
1.45In
|
t<1h(In≤63A)
|
D
|
10In
|
t≤0.1s
|
|
|
1.45In
|
t<2h(In>63A)
|
B
|
5In
|
t<0.1s
|
|
B,C,D
|
2.55In
|
1s＜t＜60s(In≤32A)
|
C
|
10In
|
t<0.1s
|
|
|
2.55In
|
1s＜t＜120s(In＞32A)
|
D
|
16In
|
t<0.1s
|
|
Type
|
Standard
|
|
IEC/EN 60898-1
|
|
Electrical
Features
|
Rated current In
|
A
|
6,10,16, 20,25, 32,40,50,63
|
|
|
Poles
|
p
|
1,2, 3, 4
|
|
|
Rated voltage Ue
|
V
|
DC250V DC550V DC750V DC1000V
|
|
|
Rated frequency
|
Hz
|
50/60
|
|
|
Rated breaking capacity
|
A
|
4500,6000,10000
|
|
|
Rated mpulse withstand voltage(1.2/50)Uimp
|
V
|
6000
|
|
|
Dielectric test voltage at ind. Freq.for 1min
|
KV
|
2
|
|
|
Thermo-magnetic release characteristic
|
|
B,C,D
|
|
Mechanical
features
|
Electrical life
|
t
|
6000
|
|
|
Mechanical life
|
t
|
20000
|
|
|
Protection degree
|
|
IP20
|
|
Installation
|
Terminal connection type
|
|
Cable/Pin-type busbar
|
|
|
Terminal size top / bottom for cable
|
mm2
|
25
|
|
|
|
AWG
|
18-3
|
|
|
Terminal size top / bottom for busbar
|
mm2
|
25
|
|
|
|
AWG
|
18-3
|
|
|
Tightening torque
|
N*m
|
2
|
|
|
|
In-Ibs
|
18
|
|
|
Mounting
|
|
On DIN rail EN 60715(35mm)by means of fast clip device
|
|
|
Connection
|
|
From top and bottom
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
