- Product Details
- {{item.text}}
Quick Details
-
Number of Row:
-
Single row
-
Model Number:
-
CCF2SB
-
Seals Type:
-
open
-
Place of Origin:
-
Japan
-
Material:
-
Chrome Steel
-
Certificate:
-
ISO9001:2008
-
Feature:
-
High Speed
-
Service:
-
After-Sales Service
-
Package:
-
Original Package
-
Lubrication:
-
Grease
-
Samples:
-
Avaliable
-
Stock:
-
Stocks
-
Application:
-
Automotive.tractor.construction Machinery.rolling Mill
-
Product name:
-
CCF2SB
Quick Details
-
Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail, Construction works , Energy & Mining
-
Bore Size:
-
1 - 20 mm
-
Precision Rating:
-
P0
-
Number of Row:
-
Single row
-
Model Number:
-
CCF2SB
-
Seals Type:
-
open
-
Place of Origin:
-
Japan
-
Material:
-
Chrome Steel
-
Certificate:
-
ISO9001:2008
-
Feature:
-
High Speed
-
Service:
-
After-Sales Service
-
Package:
-
Original Package
-
Lubrication:
-
Grease
-
Samples:
-
Avaliable
-
Stock:
-
Stocks
-
Application:
-
Automotive.tractor.construction Machinery.rolling Mill
-
Product name:
-
CCF2SB
Cam follower bearing CCF2SB have high rigidity and high precision as driven bearings for cam mechanisms and linear motion, and are widely used in machine tools, industrial robots, electronic component devices, and office automation equipment.

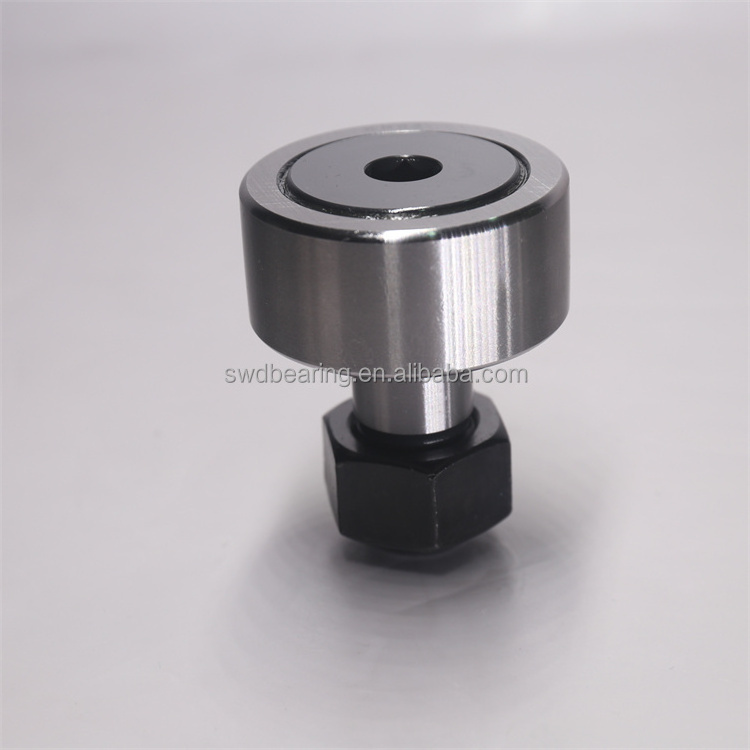

Cam follower bearing CCF2SB
Parameter format:
| Product name: | Cam folloewr bearing CCF2SB |
| Material: | Chrome steel |
| Weight(kg): | 0.6KG |
| Brand | OEM |
| Package: | Original package |
Stud style cam follower bearing has one end plate integrated into the inner race (stud) and the other pressed onto the stud unto a shoulder on the inner race. Both ends of the stud have holes for lubrication and the inner race is induction hardened to maintain some degree of softness in case some modification is required.
Inch series: CR, CRH,CF,CFE,CFH,CFHE
Materials of cam follower bearings
Needle roller: Gcr15, quench-hardening HRC60-65
Rings:Gcr15
Cage:Low-carbon steel or reinforced nylon
Both the stud and yoke cam followers have an outer diameter that may either be cylindrical or crowned. The crowned. The crowned ones are often used in turntable type applications because they help reduce skidding.
We can provide many types of cam bearing for you to choose,
| Crowned OD | Cylindrical OD | Dimensions(mm) | N.W. | |||||||
| without seals | with seals | without seals | with seals | d | D | B | L | I | G | ≈g |
| KR10 | KR10 PP | KR10 X | KR10 PPX | 3 | 10 | 7 | 17 | 9 | M3x0.5 | 4.5 |
| KR12 | KR12 PP | KR12 X | KR12 PPX | 4 | 12 | 8 | 20 | 11 | M3x0.5 | 7.5 |
| KR13 | KR13 PP | KR13 X | KR13 PPX | 5 | 13 | 9 | 23 | 13 | M4x0.7 | 10.5 |
| KR16 | KR16 PP | KR16 X | KR16 PPX | 6 | 16 | 11 | 28 | 16 | M6x1 | 18.5 |
| KR19 | KR19 PP | KR19 X | KR19 PPX | 8 | 19 | 11 | 32 | 20 | M8x1.25 | 28.5 |
| KR22 | KR22 PP | KR22 X | KR22 PPX | 10 | 22 | 12 | 36 | 23 | M10x1 | 45 |
| KR26 | KR26 PP | KR26 X | KR26 PPX | 10 | 26 | 12 | 36 | 23 | M10x1 | 60 |
| KR30 | KR30 PP | KR30 X | KR30 PPX | 12 | 30 | 14 | 40 | 25 | M12x1.5 | 95 |
| KR32 | KR32 PP | KR32 X | KR32 PPX | 12 | 32 | 14 | 40 | 25 | M12x1.5 | 105 |
Our company's cam follwer bearing CCF2SB exported to various countries have received praise and affirmation from different customers
Thank you for visiting our shop.We look forward to working for you if you are interested in cam follower bearing CCF2SB.
