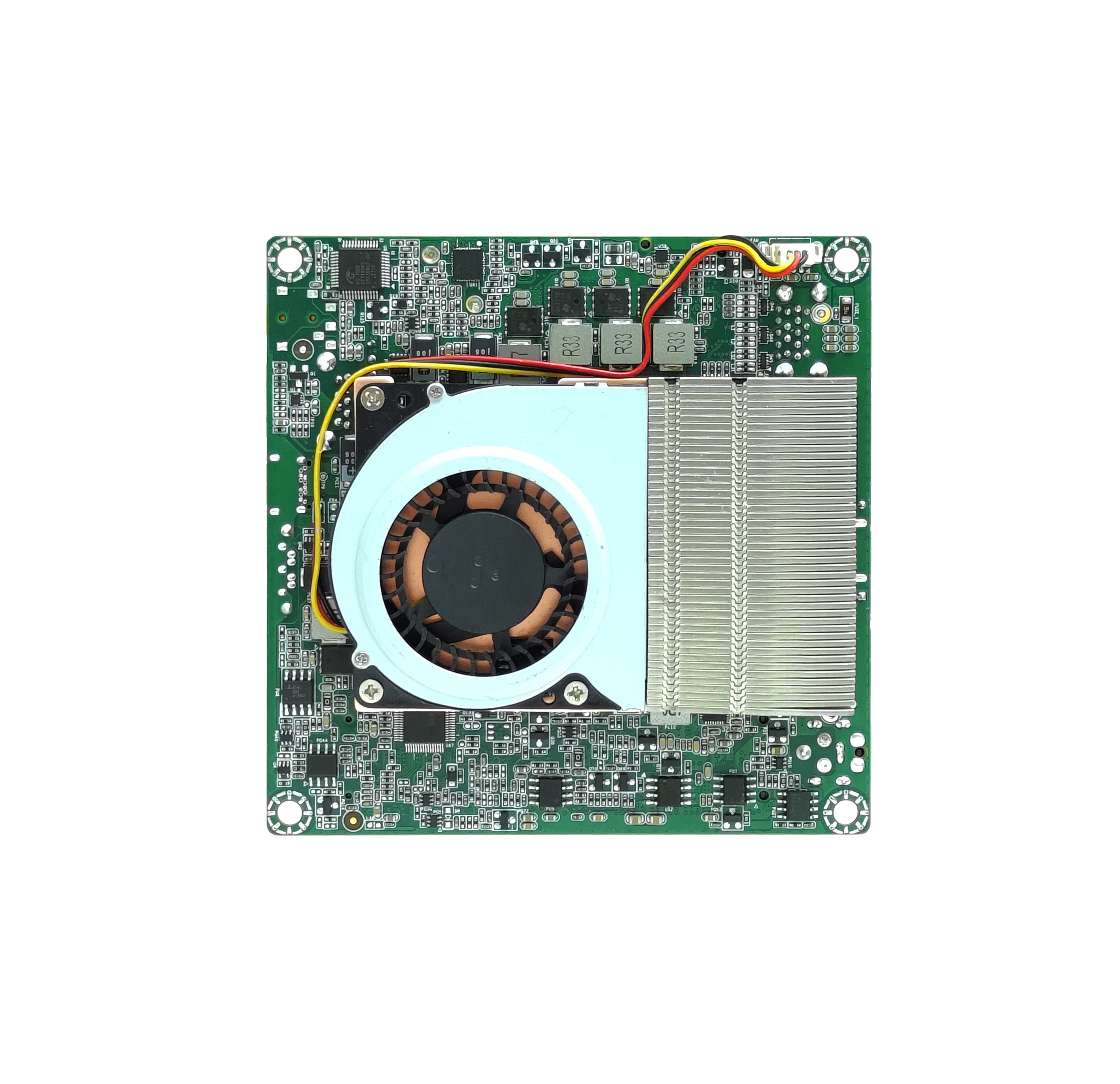

Latest China factory 8gen NUC 8665U 4CORES embedded motherboard cpu combo support 64G 2666MHZ WIN11M.2wifi mini dp 100*100MM

Product details:

Product model ordering options:

I mportant notice :

Power supply port:

Motherboard DC head diameter 5.5*2.5, can change 4*Pin ATX port to supply power;

Motherboard power supply only support 12V, full consumption power is about 60 W . Suggest use 12V 7 A or above power ;

Display port:

1, Motherboard HDMI,Mini_DP s upport single display, double display copy, double display extension, DOS single display ;

2, Motherboard HDMI port support 4K resolution 4096/3840*2160@30Hz;

3, Motherboard Mini_DP support 4K resolution 4096/3840*2160@60Hz;

4, Motherboard Mini_DP port when change to HDMI must use a ctive action Mini_DP turn to HDMI wire , otherwise no display ; Connect Mini_DP to DP wire then can directly use;

Mini_PCIE:

Motherboard MSATA port default SATA signal,default support MSATA hard disk,no USB signal and can not change with USB signal coexistence,SATA signal can change to PCIE signal,after motherboard upgrated which can change to support SATA signal and USB signal coexistence;

M.2

Motherboard M.2 port default support M.2_2230 bluetooth/WiFi module;

USB port:

1,Motherboard default support 5 *USB( 2 *USB2.0, 3 *U SB3.0) , 1* Type -C port ;

2,Motherboard external USB port and internal USB pin,default S power( uncharged after shutdown ),in which the external USB1 and Type _C port can change to A power( charged after shutdown ),others can not change to A power;

Network card:

Motherboard support i ntel WG i219V single gigabit network card , can not change to dual lan , cannot change to POE power supply ;

Sound card:

1,Motherboard sound card support Cmedia HS_100B USB audio chip , in which USB signal as independent signal ; motherboard can not support change to Realtek sound card ;

2,motherboard audio port support LINE_OUT output and MIC_IN input;

Product Specification

Parking&Delivery:

d   d

Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and separated by stiff cardboards in carton boxes. 1Piece/Carton(G.W. : 1.0-3.0KG); 5Pieces/Carton(G.W. : 5.0-15.0KG); 10Pieces/Carton(G.W. : 10.0-30.0KG); 20Pieces/Carton(G.W. : 20.0-60.0KG).

Application fields:

Finance retail,Multimedia teaching equipment,Conference whiteboard,Advertising machine,Audio server,Cash register,Electronic map machine,All-in-One, Advertising LCD Displayer, industrial PC and other fields.

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2009,sell to Domestic Market(53.00%),Western Europe(8.00%),North America(5.00%),Africa(5.00%),South Asia(5.00%),Eastern Asia(4.00%),South America(3.00%),Eastern Europe(3.00%),Oceania(3.00%),Northern Europe(3.00%),Southeast Asia(2.00%),Mid East(2.00%),Central America(2.00%),Southern Europe(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Motherboard,Mini PC,OPS PC,Industrial PC,SSD

4. why should you buy from us not from other suppliers?
ELSKY is one of the top designer and manufacturer of industrial computer in China. As a high-tech company, ELSKY has a wide range of products covering MINI-ITX mainboard,Single Board computer, industrial computer, Panel PC, firewall and so on

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
