Quick Details
-
Warranty:
-
1 YEAR
-
Certification:
-
CE
-
Output Voltage:
-
240V
-
rotor diameter:
-
7.5M
-
Rated power:
-
10KW
-
Max. power:
-
12KW
-
Rated Voltage:
-
240V/380V
-
Start-up wind speed:
-
2.5m/s
-
Rated wind speed:
-
11m/s
-
Survival wind speed:
-
45m/s
-
Wind wheel diameter:
-
7.5m
-
Blades numbers:
-
3pcs
-
Generator type:
-
3 phase ac permanent magnet generator/Maglev generators
-
Item:
-
10kw wind turbine
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ENGELEC
-
Model Number:
-
EN-10KW-G
-
Warranty:
-
1 YEAR
-
Certification:
-
CE
-
Output Voltage:
-
240V
-
rotor diameter:
-
7.5M
-
Rated power:
-
10KW
-
Max. power:
-
12KW
-
Rated Voltage:
-
240V/380V
-
Start-up wind speed:
-
2.5m/s
-
Rated wind speed:
-
11m/s
-
Survival wind speed:
-
45m/s
-
Wind wheel diameter:
-
7.5m
-
Blades numbers:
-
3pcs
-
Generator type:
-
3 phase ac permanent magnet generator/Maglev generators
-
Item:
-
10kw wind turbine

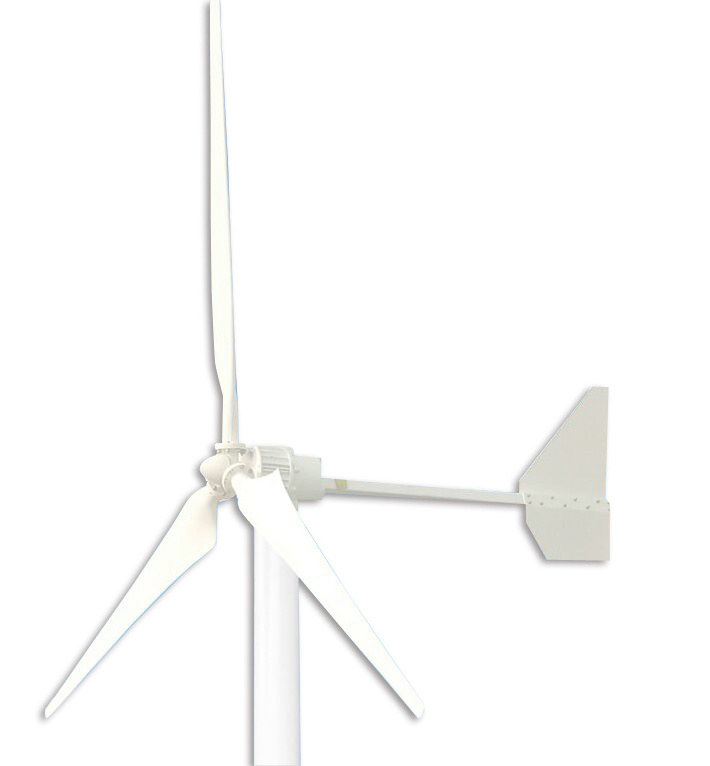

High Power Output 3KW-20KW Ah 5Kw Wind Turbine On Grid Off Grid 10000 Watt Wind Turbine Generator
Products Description
1. Carbon steel body, compact, safe;
2. Reinforced glass fiber blades, matched with optimized aerodynamic shape and structure, which enhance the wind energy utilization and annual output.
3. Patented permanent magnet ac generator with special stater, effectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system.
4. Tail adopts mechanical yaw technique, making it survive from storm and run safely.
5. With epoxy zinc rich primer and polyurethane anti-corrosion treatment, be ultraviolet-proof, acid rain resistant, salt
resistant.
6. Intelligent automatic grease injection, which ensure flexible running and durable life.
2. Reinforced glass fiber blades, matched with optimized aerodynamic shape and structure, which enhance the wind energy utilization and annual output.
3. Patented permanent magnet ac generator with special stater, effectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system.
4. Tail adopts mechanical yaw technique, making it survive from storm and run safely.
5. With epoxy zinc rich primer and polyurethane anti-corrosion treatment, be ultraviolet-proof, acid rain resistant, salt
resistant.
6. Intelligent automatic grease injection, which ensure flexible running and durable life.
Product Paramenters
|
Model
|
EN-3KW-G
|
EN-5KW-G
|
EN-10KW-G
|
||
|
Rated Power
|
3000W
|
1500W
|
2000W
|
||
|
Max. power
|
3500W
|
1700W
|
2300W
|
||
|
Rated voltage
|
96/120V
|
48V
|
48V/96V
|
||
|
Start-up wind speed
|
2.5m/s
|
2.5m/s
|
2.5m/s
|
||
|
Rated wind speed
|
11m/s
|
11m/s
|
11m/s
|
||
|
Survival wind speed
|
45m/s
|
45m/s
|
45m/s
|
||
|
Top net weight
|
205g
|
50kg
|
55kg
|
||
|
Wind wheel diameter
|
5.2m
|
3.2m
|
3.7m
|
||
|
Number of blades
|
3pcs
|
|
|
||
|
Blades material
|
Reinforced glass fiber
|
|
|
||
|
Generator
|
Three phase AC permanent magnet generator
|
|
|
||
|
Magnetic steel
|
NdFeB
|
|
|
||
|
Controller system
|
Electromagnetic/Wind wheel yaw
|
|
|
||
|
Speed regulation
|
The wind Angle automatically
|
|
|
||
|
Working temperature
|
-40°C~80°C
|
|
|
||
|
Lubrication
|
Grease injection
|
|
|
||
