Quick Details
-
Model Number:
-
YB132M
-
Frequency:
-
50 Hz
-
Product Name:
-
Permanent Magnet AC Motor
-
Speed:
-
3000rpm
-
Protection class:
-
IP55
-
Rated Voltage:
-
380V
-
Usage:
-
Industrial
-
Cooling method:
-
IC411/IC416
-
Insulation Class:
-
H
-
Duty:
-
S1
Quick Details
-
AC Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BIOTE
-
Model Number:
-
YB132M
-
Frequency:
-
50 Hz
-
Product Name:
-
Permanent Magnet AC Motor
-
Speed:
-
3000rpm
-
Protection class:
-
IP55
-
Rated Voltage:
-
380V
-
Usage:
-
Industrial
-
Cooling method:
-
IC411/IC416
-
Insulation Class:
-
H
-
Duty:
-
S1
Permanent Magnet Motor vs. Induction Motor Efficiency
As the name implies, an EV permanent magnet motor uses permanent magnetics on the rotor (see the graphic below). The alternating current applied to the stator results in rotation of the rotor. Because the magnets are permanently magnetized, the rotor can run synchronously to the switching AC current. The slippage necessary in induction motors is eliminated, improving your heat efficiency.
The inherent efficiency of a permanent magnet motor is higher than an induction motor. Both motors use a three-phase design through fully optimized performance. Induction motors, however, were designed to work primarily at 60 Hz. As you up the Hz in high-frequency induction motors, eddy current losses will be far greater than in well-made permanent magnet motors.
The design of brushless permanent magnet motors provides 2-3x more power density (torque) than induction motors, with about 50% fewer core losses. Regardless of how you bend or shape an induction motor, a well-designed, synchronous permanent magnet motor will offer increased range, better performance, and so on.

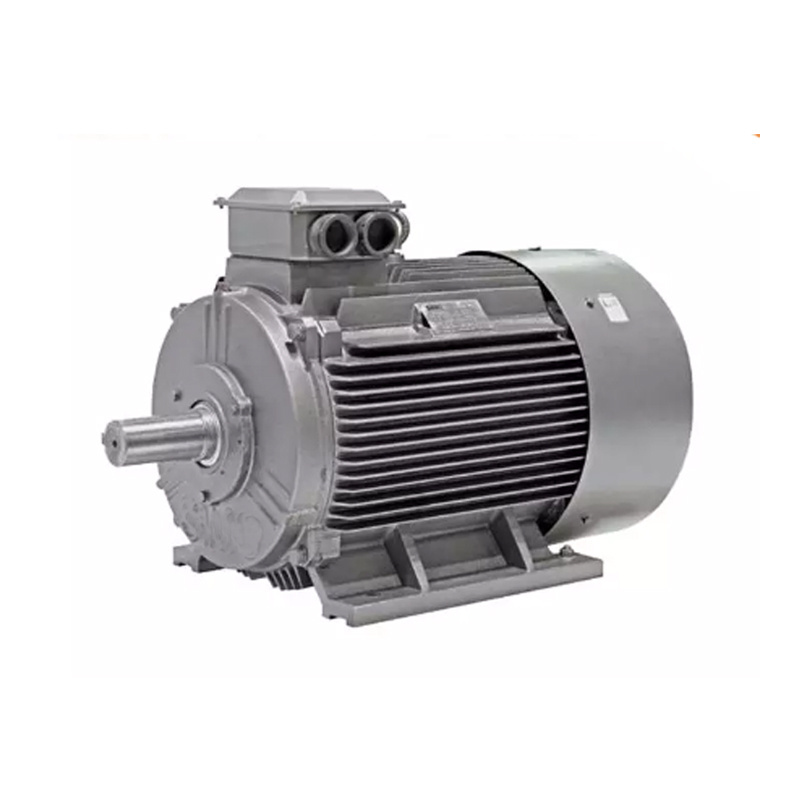

YB-Industrial Permanent Magnet Synchronous Motor
Industrial permanent magnet efficient 3 phase synchronous motor adopts advanced rare earth material excitation method, Significantly improve efficiency, power factor, etc., with low-temperature rise, small size, and weight lightweight, reliable operation and other advantages. Motor protection class IP55, insulation class H, The cooling method is IC0141, and the installation size is the same as that of Y series motors. Interchangeability, the rated power of the motor can be 4kW~480kW, and the rated speed can be achieved 500rpm~5000rpm.
bldc motor vs pmsm
We custom high efficiency IE4. IE5.
|
PMSM motor compare with Asynchronous motor
|
|
pmsm vs asynchronous motor
|
||
|
Material compare
|
PMSM Motor
|
Asynchronous motor
|
||
|
|
Silicon: 35WW300
|
Silicon: 50DW600
|
||
|
Material compare
|
Frequency conversion enameled wire temperature resistant 200℃
|
Electromagnetic wire 62880 temperature resistant 155℃
|
||
|
|
40CrM
|
45#
|
||
|
|
Rare earth permanent magnet: UH
|
Pure aluminium 17074
|
||
|
|
Bearing: working temperature -20℃ - 180℃（car）
|
General Bearing: -20℃ - 120℃
|
||
Product Details
|
Name
|
Industrial Permanent Magnet Synchronous Motor
|
|
Power Range
|
4kw~480kw
|
|
Rated Voltage
|
380V
|
|
Rated Speed
|
750rpm, 1000rpm. 1500rpm, 3000rpm
|
|
Rated Frequency
|
75Hz, 66.7hZ, 100Hz, 120Hz, 1500Hz, 300Hz
|
|
Insulation Class
|
Class H
|
|
Cooling type
|
IC411/IC416
|
|
Service Temperature
|
-20℃～40℃
|
|
Altitude
|
Lower then 1000m
|
|
Protection
|
IP55
|
|
Model
|
Power (KW)
|
voltage (V)
|
Current (A)
|
Speed (rpm)
|
Frequency (Hz)
|
Torque (Nm)
|
Effectiveness (%)
|
Power factor
|
|
YB132M-4-750
|
4
|
380
|
7
|
750
|
50
|
50.9
|
92
|
0.95
|
|
YB132M-5.5-750
|
5.5
|
380
|
9.5
|
750
|
50
|
70
|
93
|
0.95
|
|
YB132-M7.5-750
|
7.5
|
380
|
12.9
|
750
|
50
|
95.5
|
93.2
|
0.95
|
|
YB132M-11-750
|
11
|
380
|
18.8
|
750
|
50
|
140.1
|
93.7
|
0.95
|
|
YB132M-7.5-1000
|
7.5
|
380
|
12.8
|
1000
|
66.7
|
71.6
|
94
|
0.95
|
|
YB132M-11-1000
|
11
|
380
|
18.7
|
1000
|
66.7
|
105
|
94.3
|
0.95
|
|
YB132M-15-1000
|
15
|
380
|
25.4
|
1000
|
66.7
|
143.2
|
94.5
|
0.95
|
|
YB132M-11-1500
|
11
|
380
|
18.8
|
1500
|
100
|
70
|
93.6
|
0.95
|
|
YB132M-15-1500
|
15
|
380
|
25.5
|
1500
|
100
|
95.5
|
94
|
0.95
|
|
YB132M-18.5-1500
|
18.5
|
380
|
31.4
|
1500
|
100
|
117.8
|
94.3
|
0.95
|
|
YB132M-22-1500
|
22
|
380
|
37.2
|
1500
|
100
|
140.1
|
94.7
|
0.95
|
|
YB132M-15-3000
|
15
|
380
|
25.7
|
3000
|
200
|
47.8
|
93.2
|
0.95
|
|
YB132M-18.5-3000
|
18.5
|
380
|
31.6
|
3000
|
200
|
58.9
|
93.5
|
0.95
|
|
YB132M-22-3000
|
22
|
380
|
37.4
|
3000
|
200
|
70
|
94
|
0.95
|
|
YB132M-30-3000
|
30
|
380
|
50.9
|
3000
|
200
|
95.5
|
94.2
|
0.95
|
|
YB132M-37-3000
|
37
|
380
|
62.6
|
3000
|
200
|
117.8
|
94.5
|
0.95
|
