- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
PT
-
Voltage:
-
380V
-
Dimensions(L*W*H):
-
2600*2360*1500mm
-
Weight:
-
1200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Drum Diameter(mm):
-
370
-
Heating Method:
-
Oil-based heating
-
Blanket width(mm):
-
1800
-
Max working speed (m/h):
-
50-80
-
Machine Sizes(mm):
-
2600*2360*1500
-
N.W.:
-
1200KG
Quick Details
-
Marketing Type:
-
New Product
-
Core Components:
-
other
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PT
-
Voltage:
-
380V
-
Dimensions(L*W*H):
-
2600*2360*1500mm
-
Weight:
-
1200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Drum Diameter(mm):
-
370
-
Heating Method:
-
Oil-based heating
-
Blanket width(mm):
-
1800
-
Max working speed (m/h):
-
50-80
-
Machine Sizes(mm):
-
2600*2360*1500
-
N.W.:
-
1200KG
Machine Features
1. Advanced temperature control system, small temperature fluctuations, sensitive and accurate temperature control.
2. Advanced oil-heat reverse function, uniform temperature around and around.
3. The use of high temperature resistant blankets by the Shanghai DuPont Joint Venture Company has flat blankets and low shrinkage.
4. With blanket and heat roller separation function, no cooling.
5. Teflon coating on the surface of hot roll, high temperature resistance, anti-static, long life.
1. Advanced temperature control system, small temperature fluctuations, sensitive and accurate temperature control.
2. Advanced oil-heat reverse function, uniform temperature around and around.
3. The use of high temperature resistant blankets by the Shanghai DuPont Joint Venture Company has flat blankets and low shrinkage.
4. With blanket and heat roller separation function, no cooling.
5. Teflon coating on the surface of hot roll, high temperature resistance, anti-static, long life.
|
Items
|

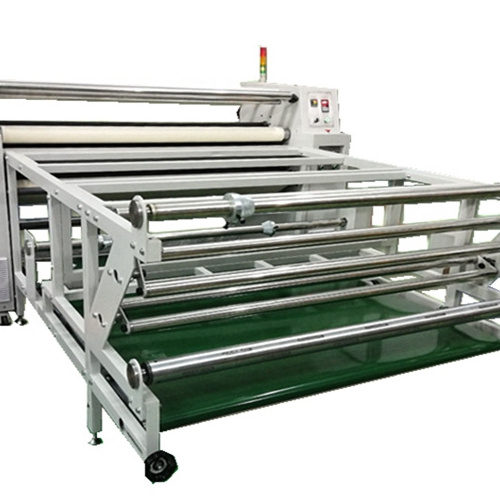

Roller Heat Transfer Machine
|
|
|
|
|||
|
Model
|
PT-C801
|
PT-C802
|
PT-C803
|
PT-C804
|
|||
|
Drum Diameter(mm)
|
200
|
270
|
370
|
420
|
|||
|
Heating Method
|
Oil-based heating
|
Oil-based heating
|
Oil-based heating
|
Oil-based heating
|
|||
|
Blanket width(mm)
|
1200
|
1700
|
1800
|
1800
|
|||
|
Power
|
6kw
|
8KW
|
18 kw
|
24 KW
|
|||
|
Voltage
|
220V/50Hz
|
220V/50Hz
|
380V/50HZ
|
380V/50HZ
|
|||
|
Working Table Length(mm)
|
1300
|
1300
|
1510
|
2000
|
|||
|
Max working speed (m/h)
|
30-50
|
40-60
|
50-80
|
60-100
|
|||
|
Machine Sizes(mm)
|
1500*2000*1500(mm)
|
2400*2200*1500(mm)
|
2600*2360*1500
|
2600*3000*1500mm
|
|||
|
N.W.
|
200KG
|
450KG
|
1200KG
|
1600KG
|
|||
