Laser Source
wall-plug efficiency and provide high efficiency, reliability and performance.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Pulse Width:
-
50μm
-
Wavelength:
-
1080nm
-
Weight (KG):
-
330 KG
-
Product name:
-

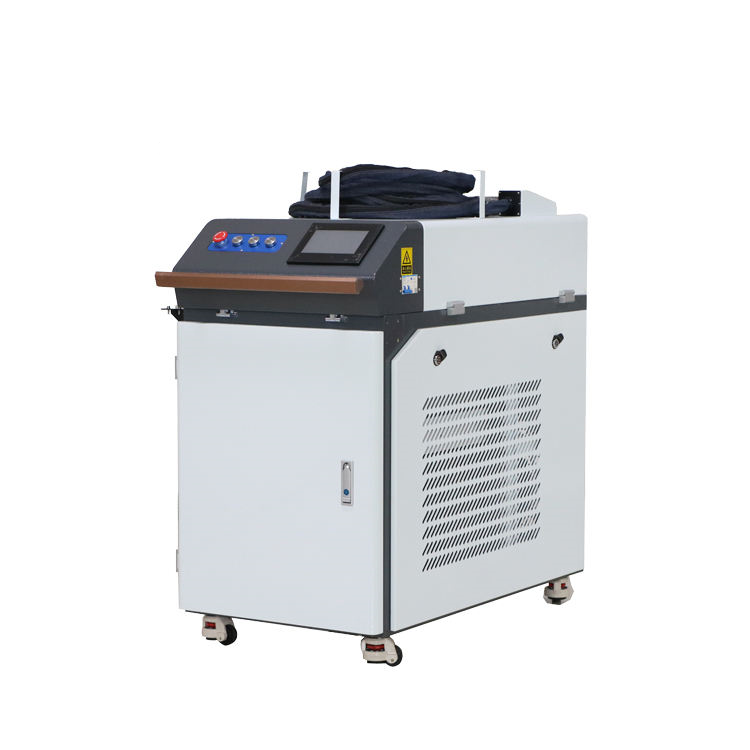

Fiber Laser Metal Welding Machine
-
Cooling System:
-
Hanli Water Cooling
-
Cable length:
-
8-10 meters
-
Welding depth:
-
0.5-3mm
-
Laser type:
-
Fiber Continuous Laser
-
Advantage:
-
Eeasy Operate
-
Laser Welding Materials:
-
Steel Copper Sliver Iron Aluminum
-
Laser head:
-
QILIN Welding Wobble Head
-
Color:
-
Customer Requirement
-
Pulse Frequency:
-
1-50Hz Continuous Adjustable
Quick Details
-
Max. Output Power:
-
2000w
-
Usage:
-
Matel Welding
-
Laser Source Brand:
-
RAYCUS
-
Place of Origin:
-
Shandong, China
-
Pulse Width:
-
50μm
-
Wavelength:
-
1080nm
-
Weight (KG):
-
330 KG
-
Product name:
-
Fiber Laser Metal Welding Machine
-
Cooling System:
-
Hanli Water Cooling
-
Cable length:
-
8-10 meters
-
Welding depth:
-
0.5-3mm
-
Laser type:
-
Fiber Continuous Laser
-
Advantage:
-
Eeasy Operate
-
Laser Welding Materials:
-
Steel Copper Sliver Iron Aluminum
-
Laser head:
-
QILIN Welding Wobble Head
-
Color:
-
Customer Requirement
-
Pulse Frequency:
-
1-50Hz Continuous Adjustable
Product Description
Product Features
1) It is easy to operate, it can be used by ordinary employees, and the training cost is not high.
2) It has the advantages of high efficiency, large welding size, fast welding speed, fine welding and so on, which reduces the subsequent grinding process.
2) It has the advantages of high efficiency, large welding size, fast welding speed, fine welding and so on, which reduces the subsequent grinding process.
3) It can be widely used in the welding of stainless steel plate, iron plate, galvanized plate, aluminum plate and other metal materials.
4) The welding point is small, the heat affected area is small, the welding workbench is not needed, and the floor area is small.
5) As long as equipped with a hand-held laser welding machine, the hand-held laser welding equipment can complete the welding operation, and the replacement cost of accessories is low
4) The welding point is small, the heat affected area is small, the welding workbench is not needed, and the floor area is small.
5) As long as equipped with a hand-held laser welding machine, the hand-held laser welding equipment can complete the welding operation, and the replacement cost of accessories is low
360 degree dead-end welds
No solder joints
Perfect welds
No distortion of the workpiece
|
Difference
|
Traditional Welding
|
Fiber Laser Welding
|
|
Heat effect to the workpiece
|
very high
|
low
|
|
Deformation of the workpiece
|
big
|
small
|
|
Bond strength to base metal
|
general
|
very good
|
|
After-treatment
|
Polishing
|
No need to polish, or rarely polished
|
|
Welding speed
|
general
|
More than 2 times argon arc welding
|
|
Applicable material
|
stainless steel, carbon steel. galvanized sheet
|
stainless steel, carbon steel. galvanized sheet
|
|
Consumables
|
More consumables
|
Less consumables
|
|
Operation difficulty
|
complex
|
simple
|
|
Operator safety
|
Unsafe
|
Safety
|
|
Environmental protection impact
|
Not environmentally friendly
|
Environmental protection
|
|
Welding fault tolerance
|
it is good
|
it is good
|
|
Swing welding
|
no
|
yes
|
|
Spot width adjustable
|
no
|
yes
|
|
Welding quality comparison
|
difference
|
Very good
|
Important Accessories
wall-plug efficiency and provide high efficiency, reliability and performance.
Laser head
The swing welding head can be configured with differently angled nozzles. The head supports a maximum laser power of 2000W to meet different customer requirements. Laser output with oscillating effect extends the tolerance range and welding width of the
workpiece and solves the disadvantage of small and fine laser spot
Cooling system
HanLi water cooler is independently developed, according to the laser welding market demand, which can meet the cooling demand of 1000w-2000w handheld laser welding machine. Temperature control accuracy up to ± 1 ℃, double temperature design, can meet the cooling of laser source and welding head at the same time.
Control system
Simple operation interface, humanized design, touch screen control, automatic layout optimization, to ensure high-speed operation
of the whole machine
Touch screen interface
Wire Feeding For Free
The machine is equipped with an automatic wire feeder, which allows easy adjustment of parameters and offers a wide range of
options The weld seams created during the welding process can be effectively compensated for, resulting in a tighter bond.
Product Specifications
|
1
|
Product name
|
Handheld fiber laser welding machine
|
|
2
|
Model
|
ZLW
|
|
3
|
Laser power
|
1000W/1500W/2000W
|
|
4
|
Laser wavelength
|
1070 nm
|
|
5
|
Fiber length
|
Standard 10M, maximum support 15M
|
|
6
|
Way of working
|
Continuous / modulation
|
|
7
|
Speed Range
|
0~120 mm/s
|
|
8
|
Cooling Water
|
Industrial thermostatic water tank
|
|
9
|
Working Temperature
|
15~35 ℃
|
|
10
|
Working humidity
|
< 70%No condensation
|
|
11
|
Welding thickness
|
0.5-3mm
|
|
12
|
Welding gap requirements
|
≤0.5mm
|
|
13
|
Voltage
|
220V
|
|
14
|
Product size
|
1105L*720W*1005H mm
|
|
15
|
Packing weight
|
300KG
|
Sample Display
Industry Application:
Cabinet kitchen, staircase elevator, shelf, oven, stainless steel door and window guardrail,
distribution box, stainless steel furnishings and other industries.
distribution box, stainless steel furnishings and other industries.
Materials:
Titanium, aluminum, copper, zinc, gold, sliver and many other metal and alloy, carbon steel and stainless steel materials, and also cooper-brass, cooper-titanium, nickel-cooper, cooper-titanium and many other heterogeneous metals.
Titanium, aluminum, copper, zinc, gold, sliver and many other metal and alloy, carbon steel and stainless steel materials, and also cooper-brass, cooper-titanium, nickel-cooper, cooper-titanium and many other heterogeneous metals.
