Quick Details
-
Brand Name:
-
SHELOK
-
Model Number:
-
MA702
-
Max. Current:
-
4A
-
Max. Working Pressure:
-
150Bar
-
Product Name:
-
Mini Pressure Switch Air and Water for Machine
-
Body:
-
Zinc-plated Steel/Stainless Steel
-
Contact:
-
silver cadmium alloy, can be gold plated
-
Max voltage:
-
42V
-
Max currency:
-
4A
-
Working temperature range:
-
-40℃--+100℃(baesd on different diaphragm)
-
Life endurance:
-
1000000
-
Electrical life endurance:
-
100000
-
Pollution situation:
-
normal
-
IP level:
-
IP00(without cover)
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
42V
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
SHELOK
-
Model Number:
-
MA702
-
Max. Current:
-
4A
-
Max. Working Pressure:
-
150Bar
-
Product Name:
-
Mini Pressure Switch Air and Water for Machine
-
Body:
-
Zinc-plated Steel/Stainless Steel
-
Contact:
-
silver cadmium alloy, can be gold plated
-
Max voltage:
-
42V
-
Max currency:
-
4A
-
Working temperature range:
-
-40℃--+100℃(baesd on different diaphragm)
-
Life endurance:
-
1000000
-
Electrical life endurance:
-
100000
-
Pollution situation:
-
normal
-
IP level:
-
IP00(without cover)

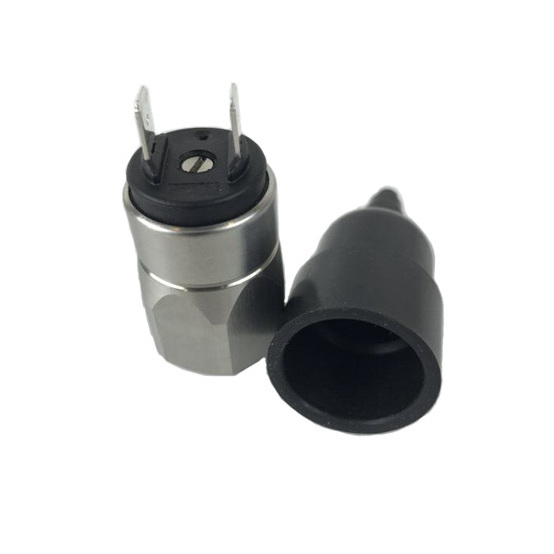

Mini Pressure Switch Air and Water for Machine
Description
Diapragm type perssure switch with 6.4mm blade terminal and 300bar of maximum safety pressure
Detailed Images
Specification
|
Mini Pressure Switch Air and Water for Machine |
|
|
Body |
Zinc-plated Steel/Stainless Steel |
|
Contact |
silver cadmium alloy, can be gold plated |
|
Max voltage |
42V |
|
Max currency |
4A |
|
Working temperature range |
-40℃ ~ +100℃(ba se d on different diaphragm) |
|
Life endurance |
1000000 |
|
Electrical life endurance |
100000 |
|
Pollution situation |
normal |
|
IP level |
IP00(without cover) |
|
With cover |
IP54(rubber cover) |
|
With cover |
IP67(potting resin cover) |
|
Applica tion rule |
EN 60730-1 |
|
Max working pressure |
150bar |
|
Burst pressure |
300bar |
|
Weight |
~85gr |
Applications
·Agricultural irrigation:Can monitor agricultural water usage remotely to save water
·Industrial water metering
·Intelligent irrigation and landscaping
