Quick Details
-
Place of Origin:
-
Hebei, China
-
Weight (KG):
-
12000 kg
Quick Details
-
Marketing Type:
-
New Product 2022
-
Size:
-
7000*2500*3200
-
Gross Vehicle Weight:
-
10
-
Place of Origin:
-
Hebei, China
-
Weight (KG):
-
12000 kg

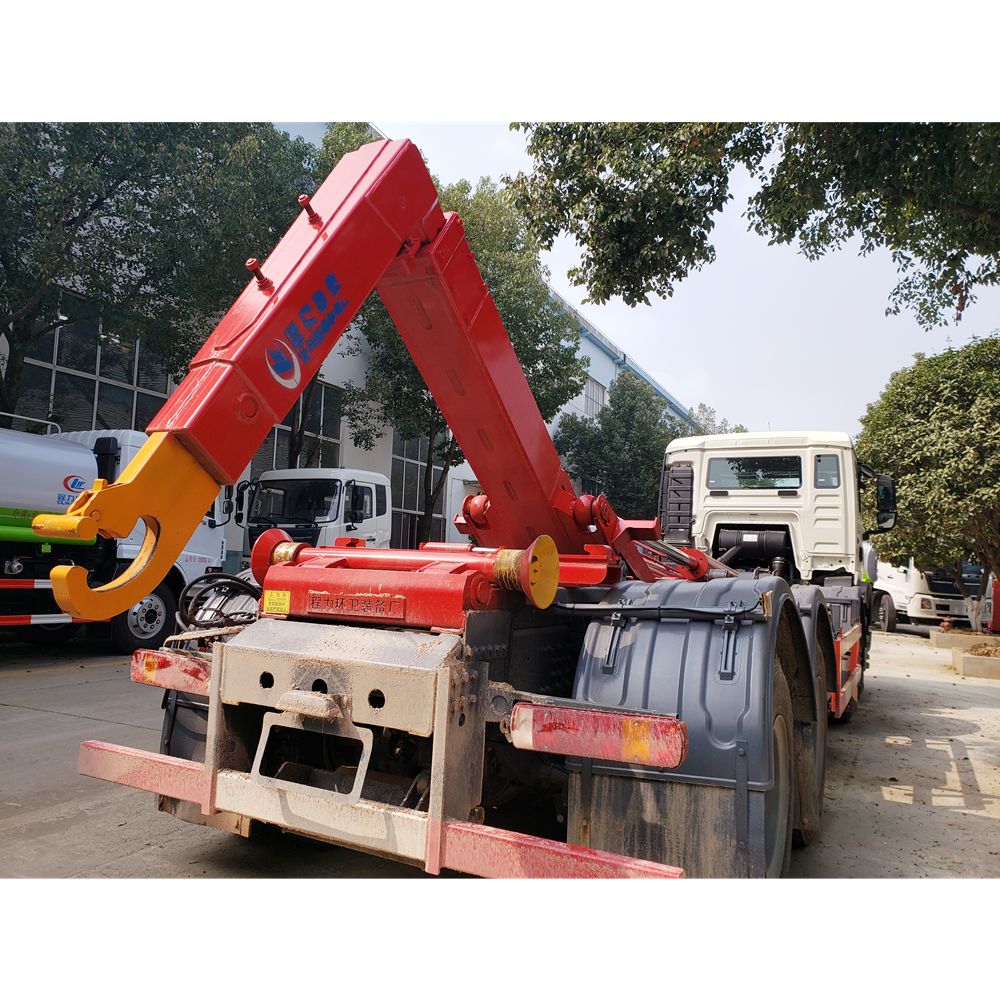

HOWO 25Ton Forland Hook Lifting Garbage Collection Truck
Description:
1.
Garbage Bin with different size options of waste collection truck: 2cbm to 12cbm.
2. Hydraulic Control Loading & Unloading System.
3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.
| Drive type | 4*2, New condition, LHD | |
|
Vehicle Main Dimensions
|
(L x W x H)mm | 5880×2100×2390 |
| Wheel base (mm) | 3800 | |
| F/R Axle-Load | 3300/4975kg | |
| Approach/departure angle | 20/13 | |
| Curb weight | 3895 kg | |
| GVW | 8275 kg | |
| Max. driving speed(km/h) | 103 | |
| Engine | Model | CY4SK251 |
| Horse Power(HP) | 156 | |
| Emission standard | Euro V | |
| Gearbox | 6 forwards& 1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Tire | 7.50R16, 7 pc including 1 spare tire | |
| Steering Gear | power steering, hydraulic steering with power assistance | |
| Garbage Compactor Standard confirguration | ||
| Garbage Box Material | Carbon Steel Q235 | |
| Thickness of box | 5mm | |
| Garbage Box Volume | 8cbm | |
| Container Roll on time(s) | 50-60 | |
| Container Roll off time(s) | 40-50 | |
| Hydraulic System | Chinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge,oil box,filter and pipelines.Front valve controls push panel and strike-off board. | |
